9 ENGLISH

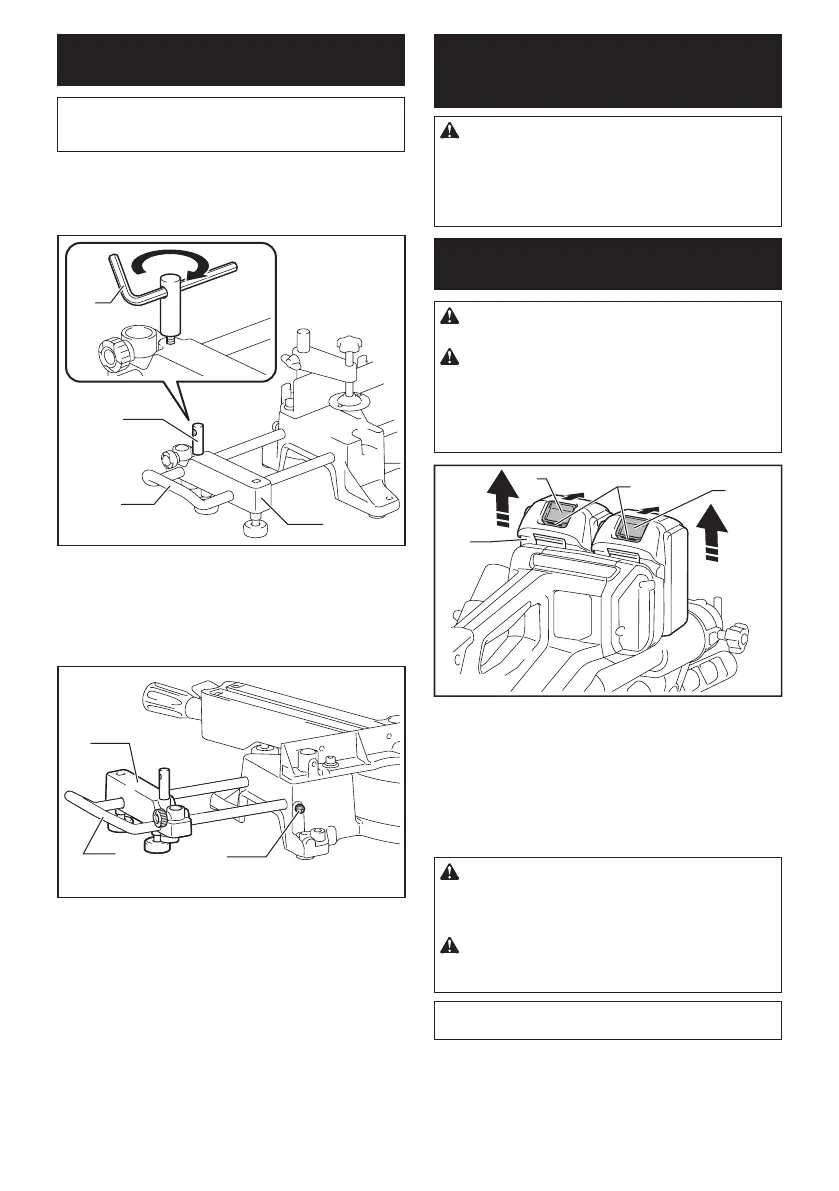

Installing the holders and holder
assemblies
NOTE: In some countries, the holders and holder
assemblies may not be included in the tool package
as standard accessory.
The holders and the holder assemblies support work-
pieces horizontally.
Tighten the fence shafts to the holder assemblies using
the hex wrench.
4
3
1
2
► 1. Holder 2. Holder assembly 3. Fence shaft 4. Hex
wrench
Install the holders and the holder assemblies on both
side as shown in the gure. When installing, make sure
that the fence shaft is in the same line of the guide
fence when installed to the tool.
1
2
3
► 1. Holder 2. Holder assembly 3. Screw
Then tighten the screws rmly to secure the holders and
the holder assemblies.
FUNCTIONAL
DESCRIPTION
WARNING: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking the functions on
the tool. Failure to switch off and remove the battery
cartridge may result in serious personal injury from
accidental start-up.
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridge rmly may cause them to slip off your hands
and result in damage to the tool and battery cartridge
and a personal injury.
2
2
1
3
► 1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the tool, causing injury to
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
NOTE: The tool does not work with only one battery
cartridge.

Makita DLS714 Specifications

General

Blade Diameter	190 mm
Max Cutting Capacity at 90°	52 x 300 mm
Max Cutting Capacity at 45°	52 x 212 mm
Power Source	Corded Electric
Bore Diameter	20 mm
Voltage	240 V
Maximum cutting depth at 90°	52 mm
Maximum cutting depth at 45°	52 mm
Bevel Capacity	45° left and right
