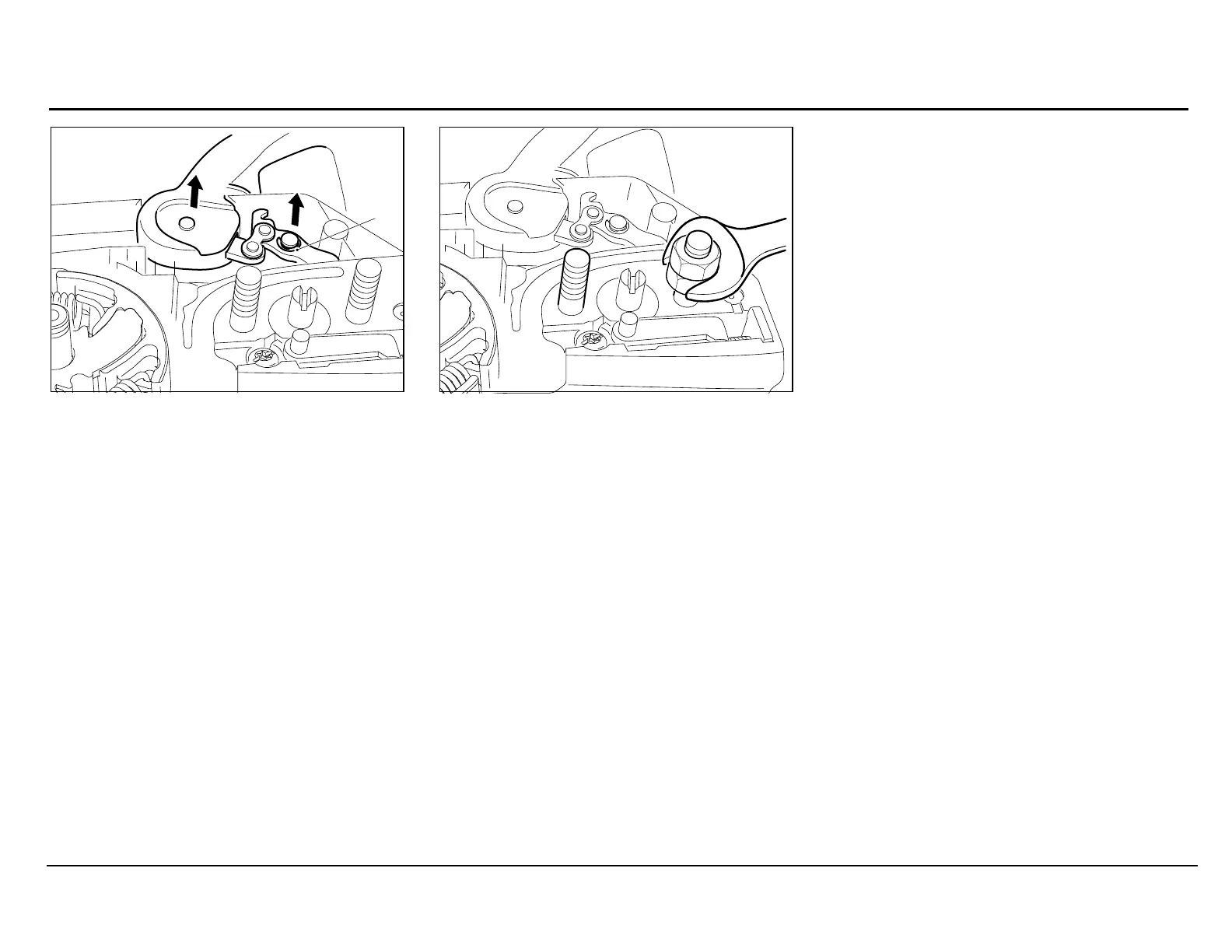

Replacing the guide bar bolt
Screw two nuts onto the bar bolt and
counterlock them.
Unscrew the bar bolt.
Assembly: Screw in bar bolt to 20.5 ± 0.5 mm
and secure with Loctite 243 (980.009.000).
7
03
CHAIN BR
AKE / GUIDE BAR BOLT
Remove the circlip 7.
Pull the handguard and disengagement
mechanism up and out parallel to their axes.
When reassembling always use a new
circlip 7 (927.304.000)!
Assemble the
handguard and disengagement
mechanism, brake band and brake band
spring in reverse order.
