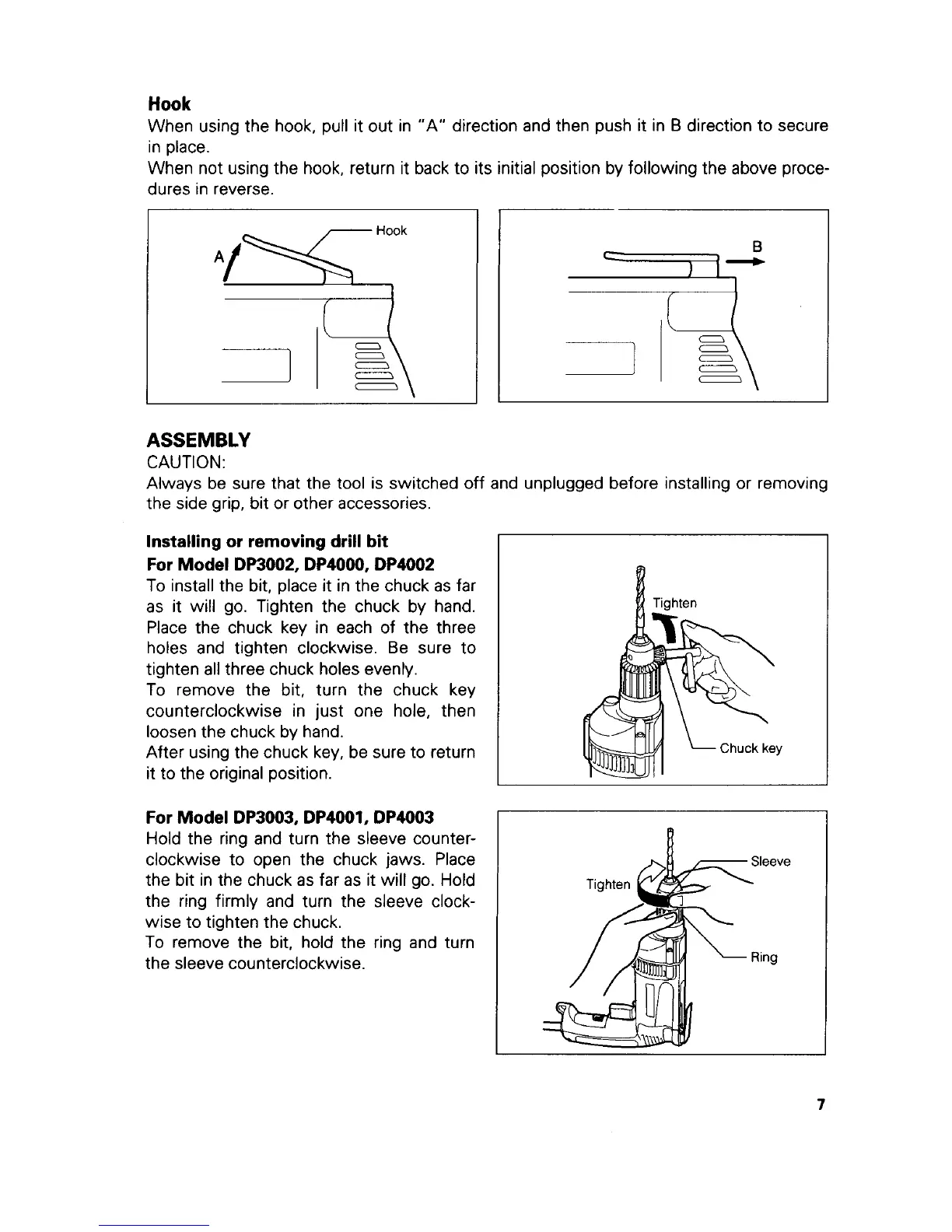

Hook
When using the hook, pull it out in "A" direction and then push it in
B
direction to secure
in place.
When not using the hook, return it back to its initial position by following the above proce-
dures in reverse.
ASSEMBLY
CAUTION:
Always be sure that the tool is switched off and unplugged before installing or removing
the side grip, bit or other accessories.
Installing or removing drill
bit
For Model DP3002, DP4000, DP4002
To install the bit, place it in the chuck as far
as it will go. Tighten the chuck by hand.
Place the chuck key in each of the three
holes and tighten clockwise. Be sure to
tighten
all
three chuck holes evenly.
To
remove the bit, turn the chuck key
counterclockwise in just one hole, then
loosen the chuck by hand.
After using the chuck key, be sure to return
it to the original position.
For Model DP3003, DP4001, DP4003
Hold the ring and turn the sleeve counter-
clockwise to open the chuck jaws. Place
the bit in the chuck as far as it will go. Hold
the ring firmly and turn the sleeve clock-
wise to tighten the chuck.
To
remove the bit, hold the ring and turn
the sleeve counterclockwise.
7
