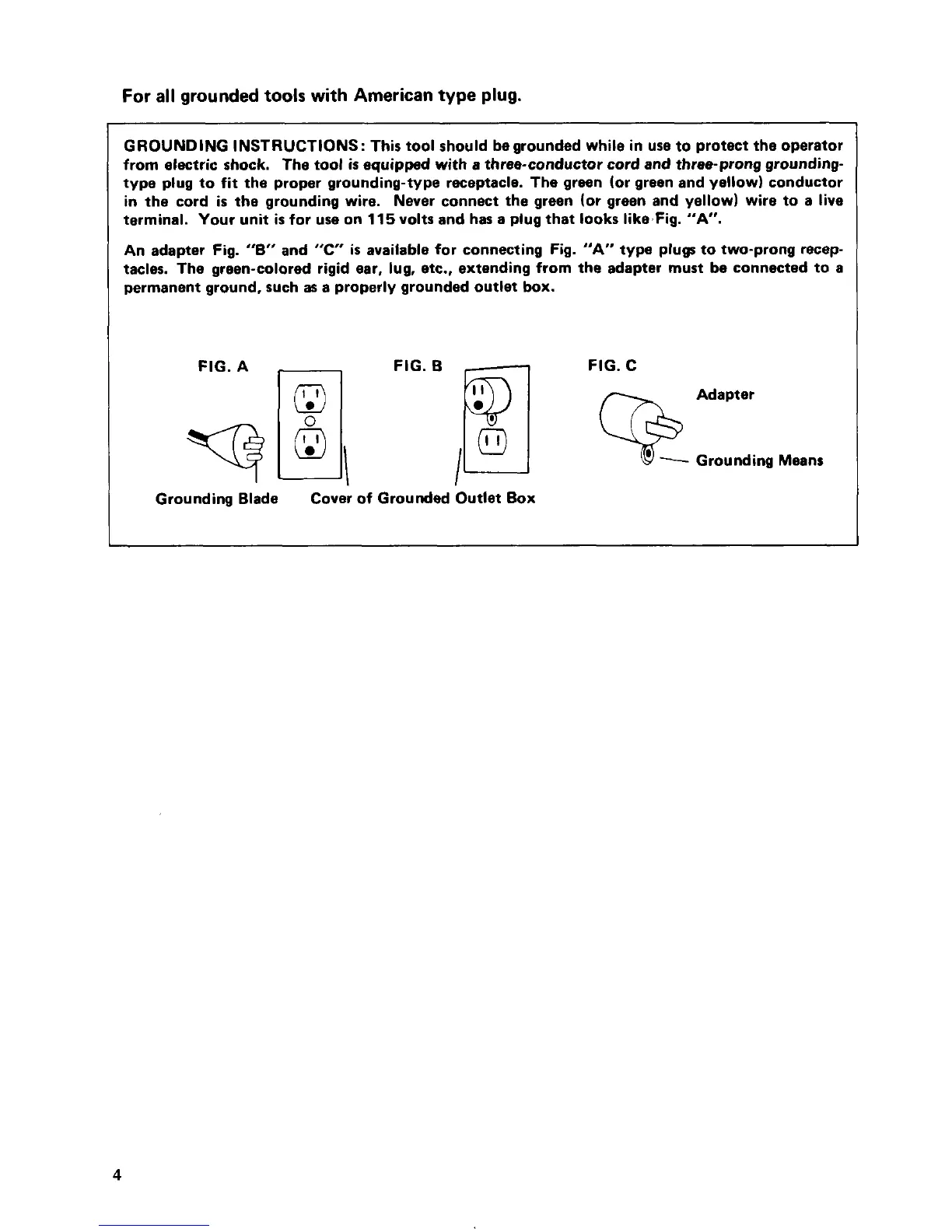

For all grounded tools with American type plug.
GROUNDING INSTRUCTIONS: This tool should begrounded while in use to protect
the
operator
from electric shock. The
tool
is
equipped with a three-conductor cord and three-prong grounding-
type plug to fit the proper grounding-type receptacle. The green (or green and yellow) conductor
in
the cord
is
the
grounding wire. Never connect the green (or green and yellow) wire to a live
terminal. Your unit
is
for use on
115
volts and has a plug that
looks
like,Fig. "A".
An adapter Fig. "B" and
"C"
is
available for connecting Fig. "A"
type
plugs to two-prong recap
tacles. The green-colored rigid ear, lug, etc., extending from the adapter must be connected to
a
permanent ground, such
as
a properly grounded outlet box.
FIG. A FIG.
0
FIG. C
Adapter
Grounding Blade
Cover of Grounded Outlet Box
4
