Makita LS0714L Technical Information

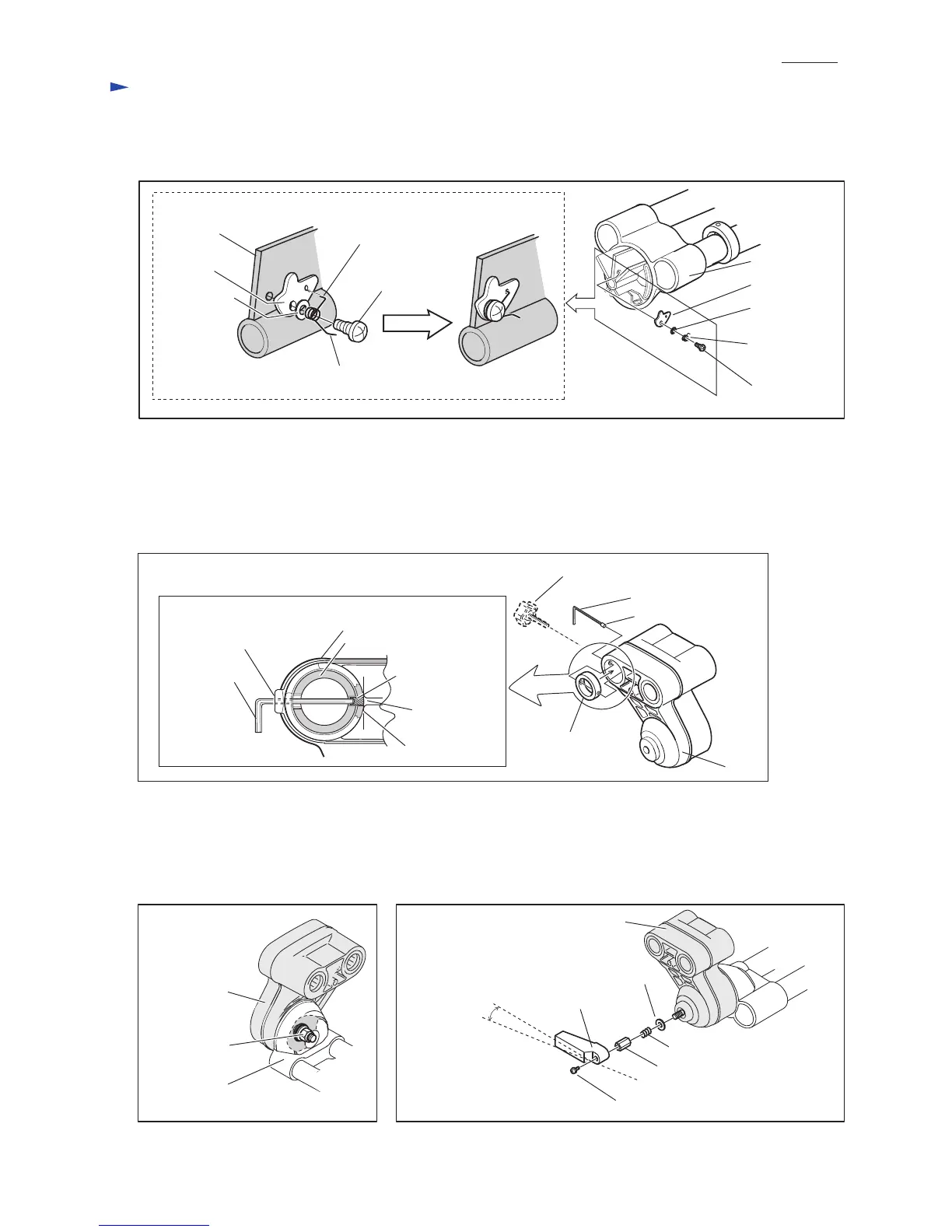

[13] Mounting stopper plate to arm holder
Mount stopper plate as illustrated in Fig. 12.
[14] Mounting ring 26 and set screw M4x8
1. Insert ring 26 into the hole of arm. See Fig. 13.
2. Drive set screw M4x8 into the screw hole of arm by screwing thumb screw M6x33 with hex wrench.
Stop driving the set screw at the same time it reaches surface A.
Stopper plate
Flat washer 6
Torsion spring 8
Torsion
spring 8
Pan head screw M5
Pan head
screw M5
Insert this tail into the small hole
of stopper plate.
Arm holder
Stopper plate
Flat washer 6
Arm holder
Fig. 12
Fig. 13
Fig. 14-1 Fig. 14-2
[15] Adjusting arm for smooth pivot action
1. Adjust hex lock nut M10x17 so that arm can pivot smooth without backlash. See Fig. 14-1.
2. Mount lever 100 and the relevant parts to arm with keeping the lever angle in lock position as Fig. 14-2.
Thumb screw M6x33
Set screw M4x8
Ring 26
Ring 26
Hex wrench
Hex wrench
Set screw M4x8
Screw hole for
thumb screw M6x33
Screw hole of
arm
Surface A
Arm
Arm
Hex lock nut
M10-17
Hex nut M10-17
Compression spring 5
Arm
Arm holder
Pan head screw M4x10
Lever 100
Flat washer 10
Arm
Approx 10 ° against
horizontal plane
Repair
P 12/ 26
