12V/Ignition
Switch
Engine
Ground
Brown
Green
All other wires originally connected
to the coil (+) terminal
Red
Distributor Wire Harness
Part No. 29349
Ignition Module
Female Connector

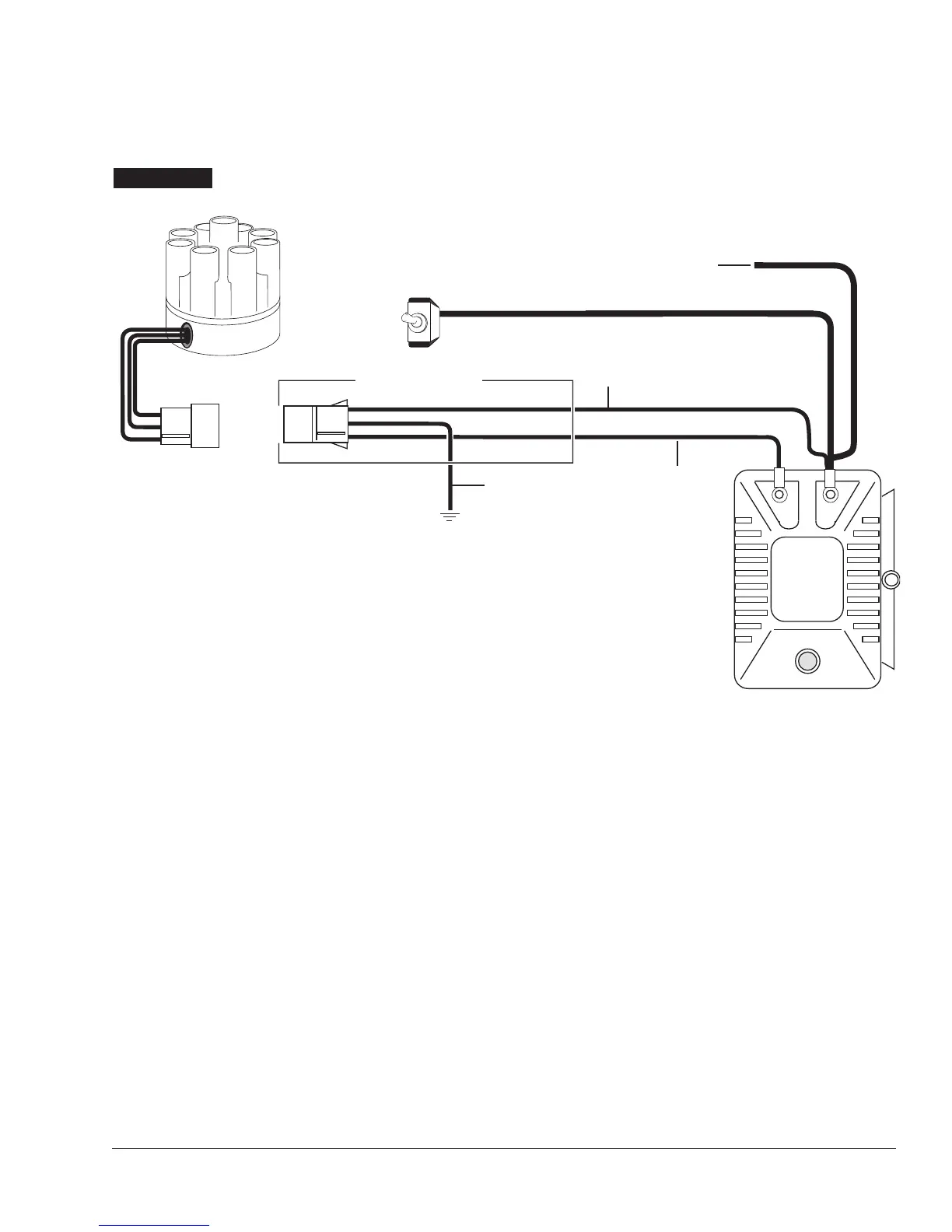

FIGURE 18
EQUIPPED WITH 29219, 29450, OR 30450 COILS ONLY
To prevent false triggering and possible
premature ignition failure, you must use
suppression type (carbon core, spiral core,
or radio suppression core) spark plug wire.
DO NOT USE SOLID CORE (COPPER
CORE OR STAINLESS STEEL CORE)
SPARK PLUG WIRE WITH ANY
ELECTRONIC IGNITION SYSTEM
