Mammoth 98874 - Rear Lifter Arm and Backboard Attachment; Attaching Backboard to Lower Extension Arm

15
HH18600
STEP 14
HE
EA
EA
EC
AO
AO
EK

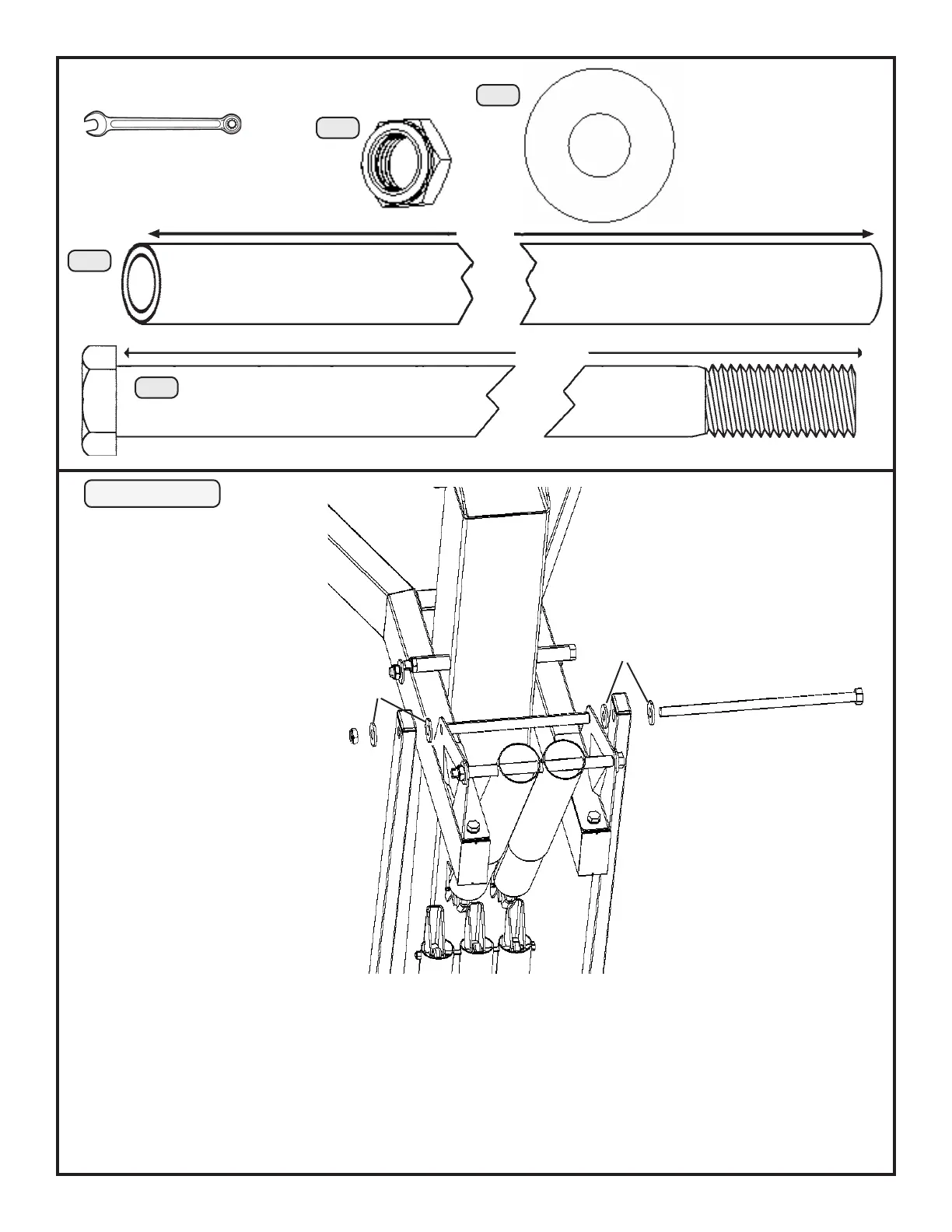

Required For This Page:
EA
EC
(Not
actual
length)
15/16” Wrenches
(4)
(1)
HE
(1)
13.31”
EK
(1)
10”
(Not
actual
length)
a. Position the Rear Lifter Arms
(AO) on the outside of the Lower
Extension Arm so the holes in the
Rear Lifter Arms line up with the
front holes in the Spring Cams.
b. Slide a 5/8” x 11 5/8” Hex Bolt
(HE) through a 5/8” Flat Washer
(EA), a Rear Lifter Arm, a 5/8”
Flat Washer (EA), the Right Spring
Cam, a 3/4” x 10” Spacer (EK), the
Left Spring Cam, another 5/8” Flat
Washer (EA), another Rear Lifter
Arm.
c. Slide another 5/8” Flat Washer (EA)
onto the Bolt and secure it with a
5/8” Nylock Nut (EC). Tighten the
Nut securely, but make sure the
Arms can rotate freely.
