Mammoth 98874 - Parts List - Hardware and Base Components; Hardware Identification and Quantities

5

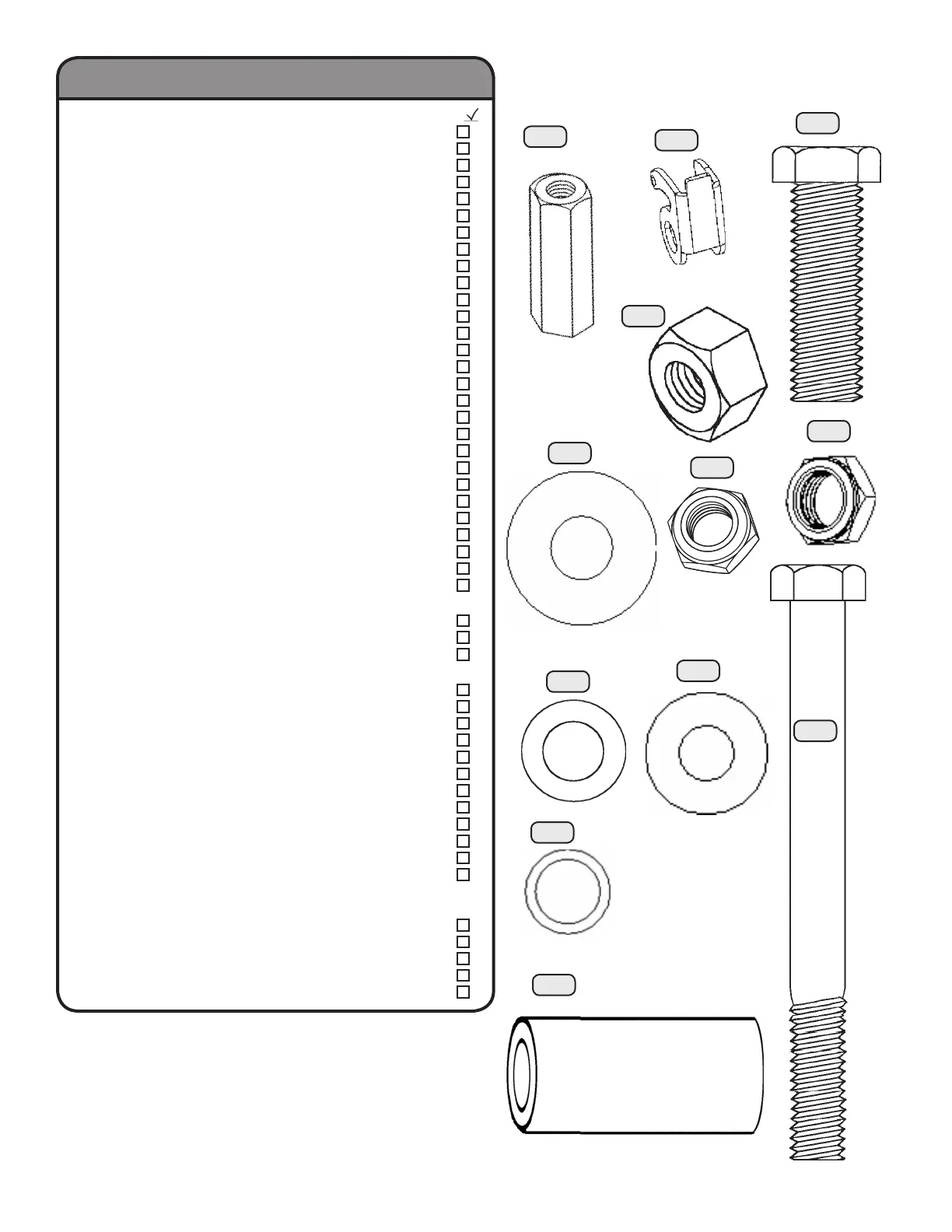

PARTS LIST
HARDWARE IS ACTUAL SIZE
(Unless otherwise indicated)
TA
TC
TB
EA
EF
EG
EC
EB
(Not actual size)
AN
(Not actual size)
ID Part # Description Qty
PL 1004540 Pole 1
AA E30001 5/8”x24”J-Bolt 4
AB E32001 36” Rebar 4
AC E34001 Coil Spring 2
AD ZA22602 Outside Gas Spring (one hole) 2
MM 1004523 Center Gas Spring (two holes) 1
AE E50100 Dark Lithium Grease 1
AF E51005 Coil Spring Inner Cover 2
AG E51006 Coil Spring Outer Cover 2
AH 1001973 Corner Guard (Installed) 2
AI E51011 Gas Spring Cover 3
AJ 1006590 Rim Impact Spacer (Connected) 1
AK E52001 Net 1
AM E80004 J-BoltTemplate 1
AN ZA72599 Lock Bracket 1
AO ZA22902 Rear Lifter Arm 2
AP ZA25202 Handle 1
AQ ZA25302 Right Spring Cam 1
AR ZA25402 Left Spring Cam 1
AS ZA25702 Upper Extension Arm 2
AT ZA25902 Lower Extension Arm 1
AU 1004084 Trigger 1
AV E82501 Rim 1
AW 1004522 Backboard 1
E61001B Warning Sticker (Applied) 1
AX E61002 Height Sticker 1
AY 1013554 Arm Sticker (Applied) 2
GP 500081 White Grease Pack 1
Base Template Hardware (EH0001)
TA E30006 Nut Coupler 1
TB E30021 5/8” x 2” Hex Bolt 1
TC E30029 5/8” Hex Nut 8
Extension Arm Hardware (HH18600)
EA CK00900 5/8” Washer 8
EC BN02400 5/8” Nylock Jam Nut 4
ED E30019 1/2” x 4 3/4” Hex Bolt 4
EJ E30026 5/8” x 11 1/4” Hex Bolt 3
EF E30037 1/2” Flat Washer 8
EG E31002 Rubber Arm Stop 2
EK E31013 3/4” x 10” Spacer 2
ZA BA08000 5/8”O-Ring 2
EB 301009 1/2” Nylock Jam Nut 5
BA E30016 1/2” x 9 3/16” Hex Bolt 1
YA CK00800 1/2” Washer 4
HE E30025 5/8” x 13.31” Hex Bolt 1
Coil Spring Hardware (HH18200) (x2)
(Hardware is already assembled on 3/8” Hex Bolt)
SA E30031 3/8” Hex Nut 1
SB E30034 3/8” x 8” Hex Bolt 1
SD E30036 3/8” Brass Flat Washer 1
SE E31016 5/8” x 1 3/16” Spacer 1
SG E80064 D-Pin 1
YA
ZA
ED
