MAN B&W 5.10
Page 2 of 3
MAN Diesel
MAN B&W MC/MC-C, ME/ME-C/ME-B/-GI engines 198 70 27-3.4

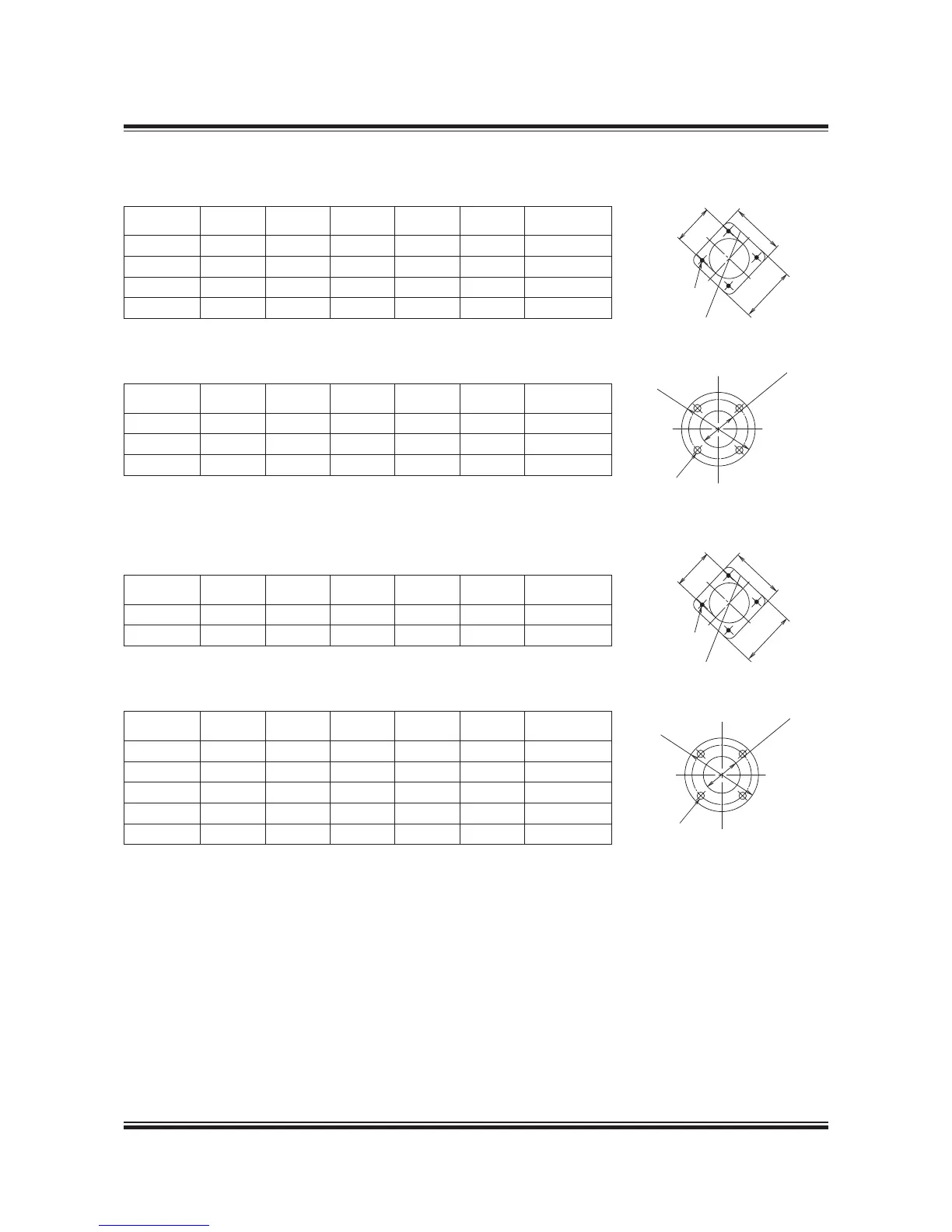

Fig. 5.10.03: Venting of lubricating oil discharge pipe for turbochargers
MHI Type MET MB
Air vent
MHI Type MET MB
Cooling air
TC Dia 1 Dia 2 PCD N O
Thickness of
flanges (A)
MET71MB 180 90 145 4 18 14
MET83MB 200 115 165 4 18 16
MET90MB 200 115 165 4 18 16
TC L+W Dia 2 PCD N O
Thickness of
flanges (A)
MET42MB 105 61 105 4 14 14
MET53MB 125 77 130 4 14 14
MET60MB 140 90 145 4 18 14
MET66MB 140 90 145 4 18 14
TC L+W Dia 2 PCD N O
Thickness of
flanges (A)
MET53MB 95 49 95 4 14 12
MET90MB 125 77 130 4 14 14
TC Dia 1 Dia 2 PCD N O
Thickness of
flanges (A)
MET42MB 95 43 75 4 12 10
MET60MB 120 49 95 4 14 12
MET66MB 120 49 95 4 14 12
MET71MB 120 49 95 4 14 12
MET83MB 120 49 95 4 14 12
Dia 1
Dia 2
N x diameter (O)
PCD
PCD
Dia 2
W
L
N x diameter (O)
Dia 1
Dia 2
N x diameter (O)
PCD
PCD
Dia 2
W
L
N x diameter (O)
