MAN B&W S65ME-C8.2-GI-TII User Manual

MAN B&W 5.12
Page 2 of 3
MAN Diesel
MAN B&W S65ME-C/-GI
198 48 94-2.3

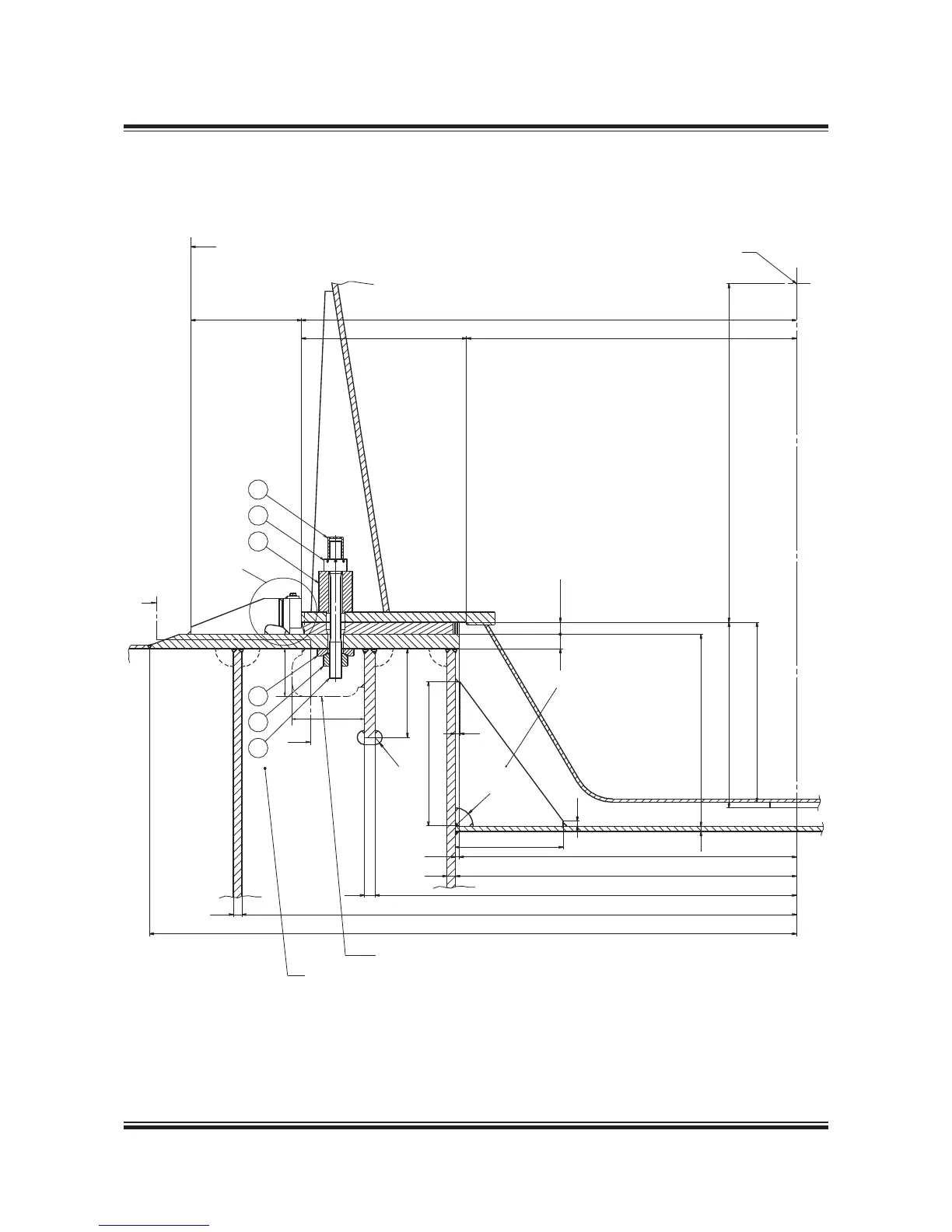

Fig.5.12.02a: Profile of engine seating with vertical oil outlet
Engine Seating Profile
079 24 67-4.8.0
1
5
4
3
2
6
This space is to kept free from pipes etc. along both sides
of the engine in order to facilitate the overhaul work on
holding down bolts, supporting chocks and side chocks
460
615
2,062
1,447
36
45
15
36
2,695
2,485
2,040
1,480
1,465
370
R
3
0
60
+35
50 -25
22
710
680
658
1,410
Centreline engine
Centreline crankshaft
5NQVUVQDGEWVKPXGTVKECNǤQQTRNCVGUVQENGCTPWVUYJGPPGEGUUCT[
6JKEMPGUUQHǤQQTRNCVGUDGVYGGPOCKPGPIKPGIKTFGTUOO
+HTGSWKTGFD[ENCUUKǣECVKQP
UQEKGV[CRRN[VJKUDTCEMGV
Thickness of bracket is the
same as thickness of
ǤQQTRNCVGU
Section A-A
600
20
R75
380
20
D1
B
B
300
200
Holding down bolts, option: 4 82 602 include:
1. Protecting cap
2. Spherical nut
3. Spherical washer
4. Distance pipe
5. Round nut
6. Holding down bolt
