MAN B&W S65ME-C8.2-GI-TII User Manual

MAN B&W
Page 1 of 7
MAN Diesel
7.0 9
MAN B&W ME-GI TII engines 198 86 39-0.2
ME-GI Gas Supply Auxiliary Systems
The ME-GI gas supply auxiliary systems include:
• leakage detection and ventilation system, which
ventilates the outer pipe of the doublewall pip-
ing completely and incorporates leakages de-
tection
• inert gas system, which enables purging of the
fuel gas system on the engine and the fuel gas
supply system with inert gas
• gas return system (optional), receiving fuel gas
returned from the engine when gas pipes are
being depressurised.
Fuel gas
supply system
Vent silencer
Gas control
system
Gas venting pipe
Inert gas
delivering
unit
7 - 9 bar
Air supply 7 bar
<0.1 bar
Gas valve train
Vent silencer
10 bar
NC
NO
NO
Return tank
Deck
Deck
Air outlet
Air
suction
fan
Venting
air
intake
Main
engine
CF/VF
CX/VX
XT 6331-A
XT 6331-B
XC 6060
XC 6050XC 6050
XC 6064
ZS 6061
ZS 6062
ZS 6065
ZS 6066
ZS 6051
ZS 6052
Gas supply system
* Optional
Inert gas
system
Leakage detection and
ventilation system
* Gas return
system

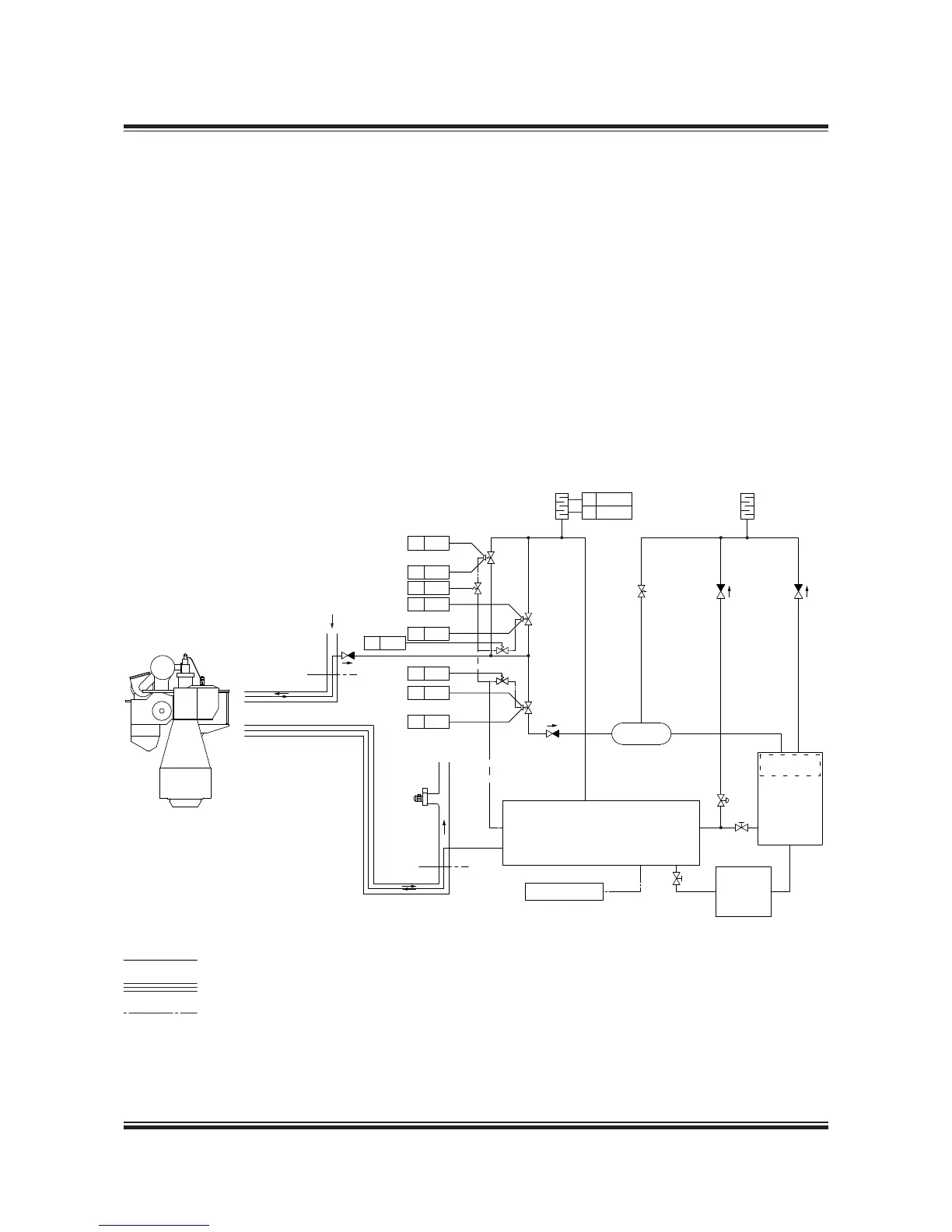

Fig. 7.09.01: ME-GI gas supply auxiliary systems
535 97 28-2.2.1
Gas supply
Double-wall pipe
7 bar air supply
Fig. 7.09.01 shows the gas supply auxiliary sys-
tems and how they are connected to the ME-GI
engine.
Capacities of the ME-GI auxiliary systems
The capacities of the ME-GI gas supply auxiliary
systems are listed in the CEAS report for the ac-
tual project see section 20.02.
