MAN B&W 98-60MC-C, 98-60ME/MEC/ME-B/-GI 198 40 136.5
Scavenge Air Pipes
Scavenge air cooler
Combined
instrument
Exh. receiver
Auxiliary blower
Spare
Cyl. 1
Turbocharger
Scavenge air receiver
*) Sealing air TC *) Sealing air TC
E 1180
TI 8609
PI 8601
PI 8706
TE 8609 I AH Y
PT 8601B
CoCoS PDT 8606 I AH
PDI 8606 I
TE 8605 I
E 1180
PI 8601
PT 8601A
TI 8605
TI 8608
TE 8608 I
CoCoS TE 8612 I
The item No. refer to ‘Guidance Values Automation’
*) Option, see Fig. 15.02.05: Soft blast cleaning of turbine side
525 11 86-5.0.1

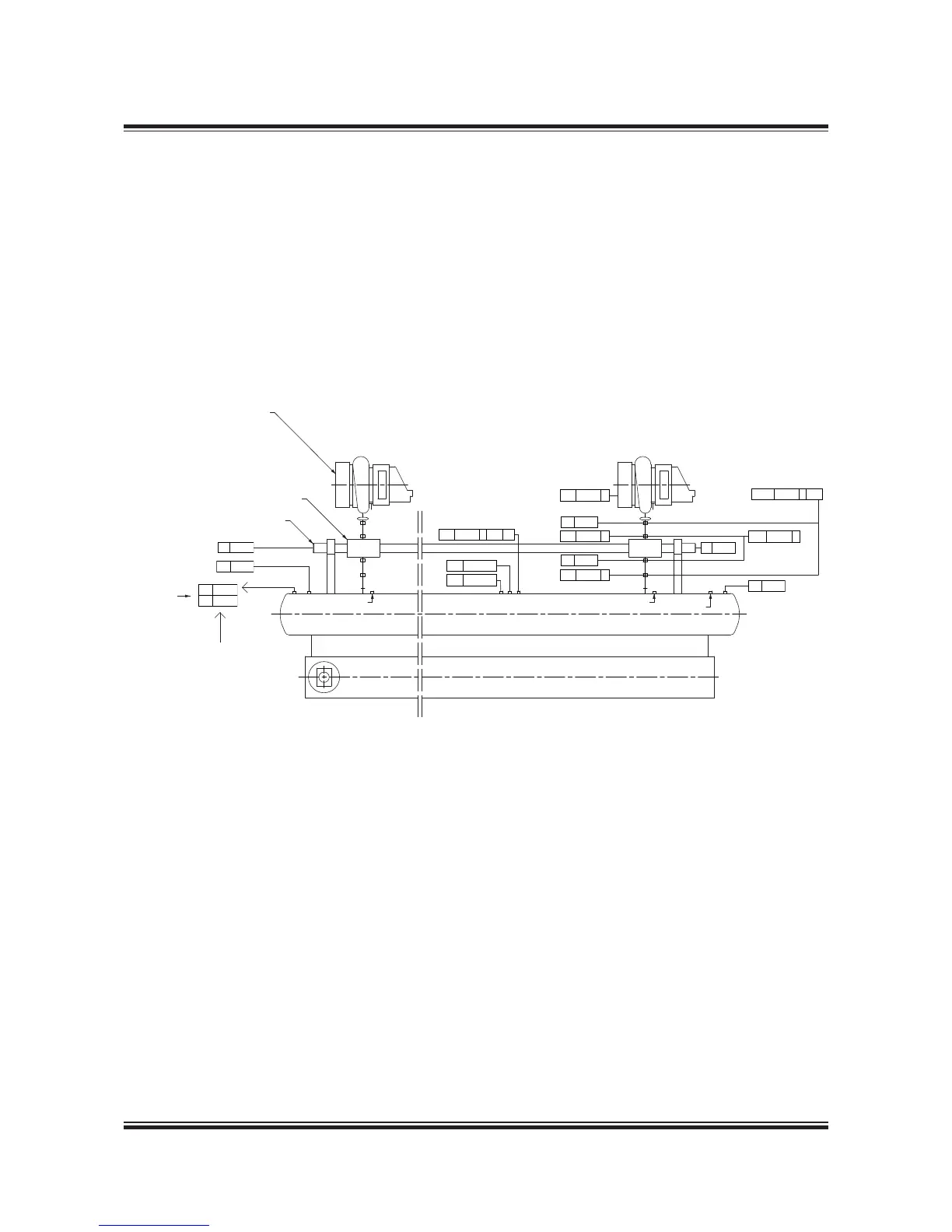

Fig. 14.03.01: Scavenge air pipes
