MAN B&W S65ME-C8.2-GI-TII User Manual

MAN B&W 14.07
Page 2 of 2
MAN Diesel
MAN B&W S90ME-C9/-GI, G80-60ME-C/-GI, S80ME-C9.4/-GI
S70-60MC-C/MEC8.2/GI, L70-60MC-C/MEC8.2
198 83 14-2.2
The letters refer to list of ‘Counterflanges’
The letters refer to list of ‘Counterflanges’

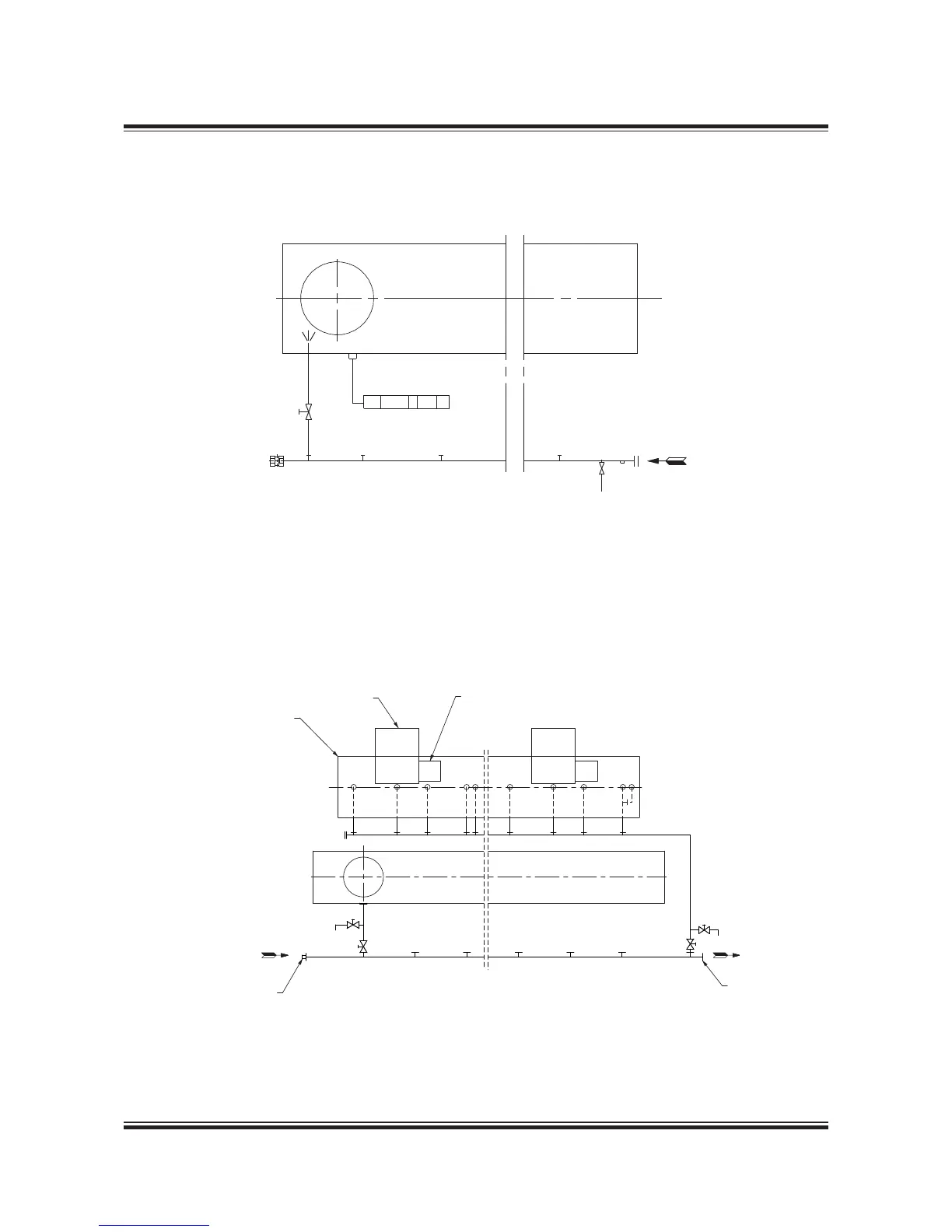

Fig. 14.07.02: Fire extinguishing pipes in scavenge air space
Fig. 14.07.03: Scavenge air space, drain pipes
126 40 81-0.6.1a
530 79 95-5.0
TE 8610 I AH Y
Cyl. 1
AT
Extinguishing agent:
CO2, Steam or Freshwater
Exhaust side
Manoeuvering side
Drain pipe, bedplate
(Only for steam or freshwater)
Fire Extinguishing Pipes in Scavenge Air Space
Scavenge Air Space, Drain Pipes
Scavenge air receiver
Exhaust side
Cyl. 1
Fore
BV
AV
Air cooler
Integrated aux. blower
