MAN B&W S65ME-C8.2-GI-TII User Manual

MAN B&W 15.02
Page 1 of 3
MAN Diesel
MAN B&W 98-60 MC/MC-C/ME/MEC/ME-B/-GI-TII 198 40 709.4
Cyl. 1
Flange connection D
Turbocharger
To scavenge air receiver
Exhaust gas receiver
PI 8706
PI 8601
TI 8701PT 8706
TI/TE 8701 I AH YH
ST 8801 I
PDT 8607
TE 8612
*) AL: Deviation alarm/Cylinder ±50ºC
YL: Deviation alarm/Cylinder ±60ºC
**) CoCos
*)
TI/TT 8707 I AH
TI/TE 8702 I AH AL YH YL
**)
**)
**)
Exhaust Gas Pipes

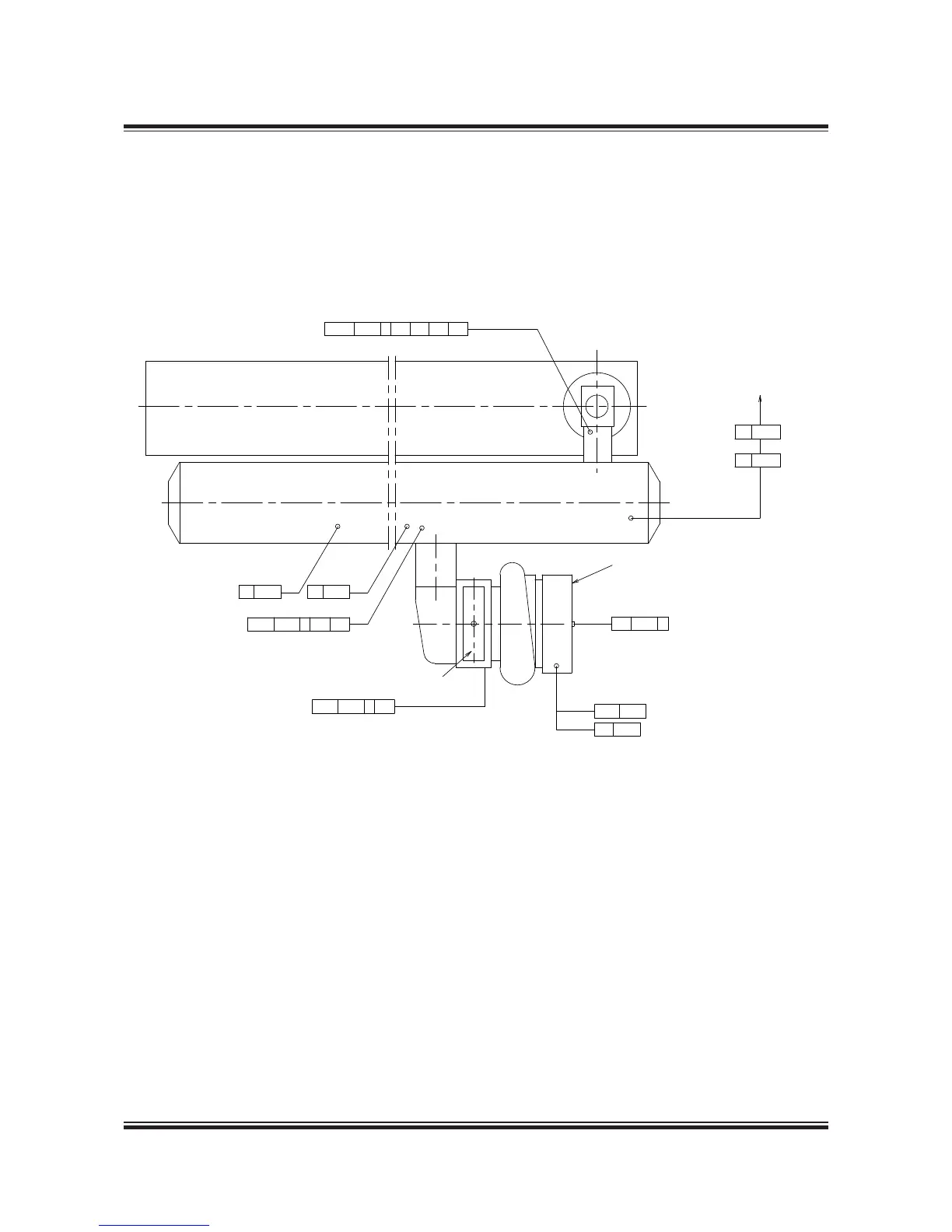

Fig. 15.02.01: Exhaust gas pipes
121 15 27-9.2.1
The letters refer to list of ‘Counterflanges’
The item no. refer to ‘Guidance Values Automation’
