MAN B&W ME-GI engines 198 89 30-0.2
The gas injection is controlled by two valves in
series. The window valve sets up a timing window
within which the gas injection can be performed,
and also limits the maximum injection. The gas
injection valve controls the precise timing and gas
injection amount.
The gas injection valve and the window valve are
both controlled by the GI control system and the
GI safety system respectively, as is the case for
several other systems, see Fig. 16.00.02.

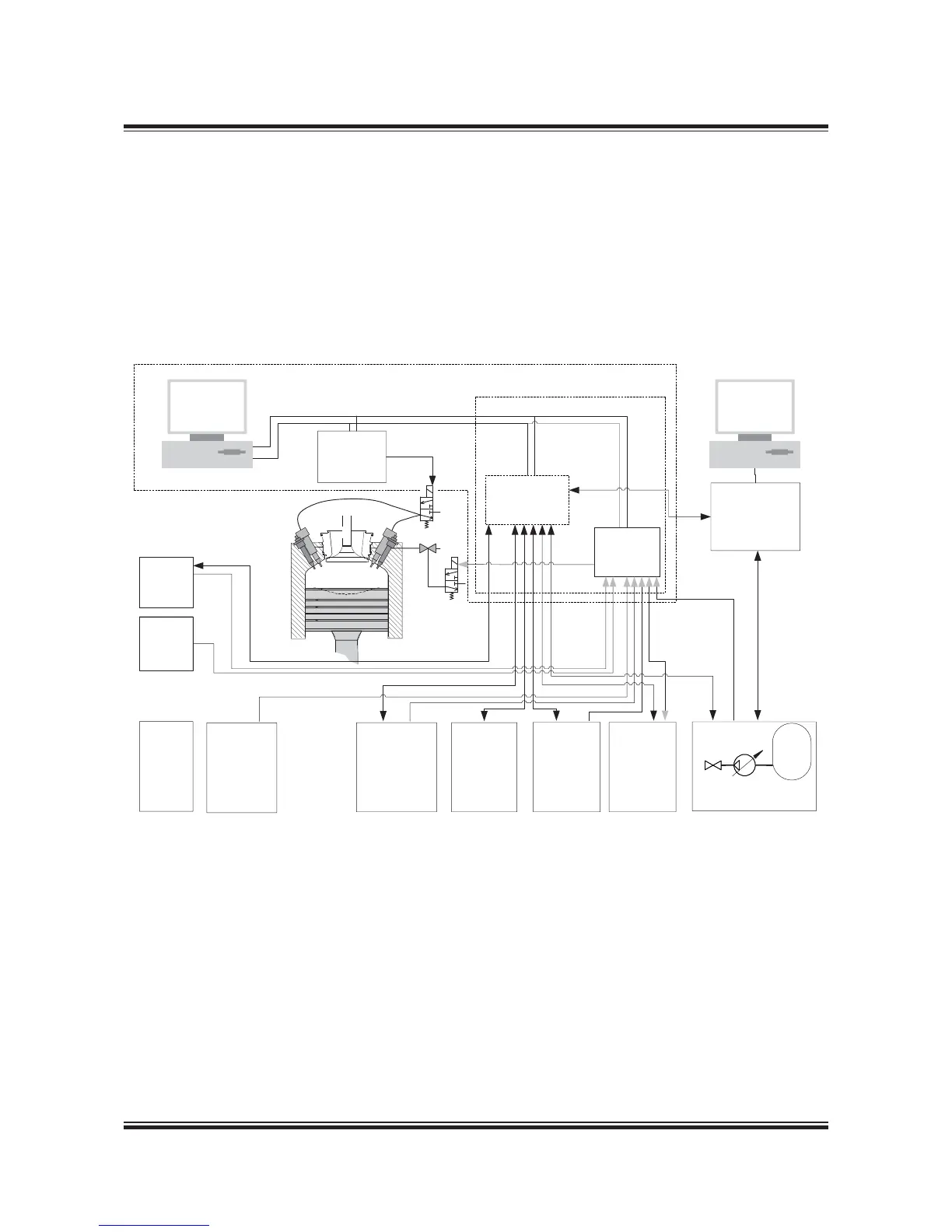

Fig. 16.00.02: ME-GI-ECS with interface to other systems and auxiliary systems
178 65 58-1.1
ME-ECS
ECS MOP
GI extension
ME-GI-ECS
Gas supply system
GI plant control
GI safety
control
Gas supply
control system
Alarm
system
Engine
safety
system
ME
HPS
ME tacho
&
crankshaft
position
Double pipe
leakage detection
&
ventilation system
Inert gas
purging system
Sealing oil
system
Gas valves
&
pipes system
LNG
tank
Gas injection components
