MAN B&W 4.02
Page 1 of 1
MAN Diesel
MAN B&W S65ME-C8/-GI
198 49 15-9.2
The stated kW at the generator terminals is available between 70% and 100% of the engine speed at specified MCR
Space requirements have to be investigated case by case on plants with 2,600 kW generator.
Dimension H: This is only valid for A. van Kaick generator type DSG, enclosure IP23, frequency = 60 Hz, speed = 1,800 r/min

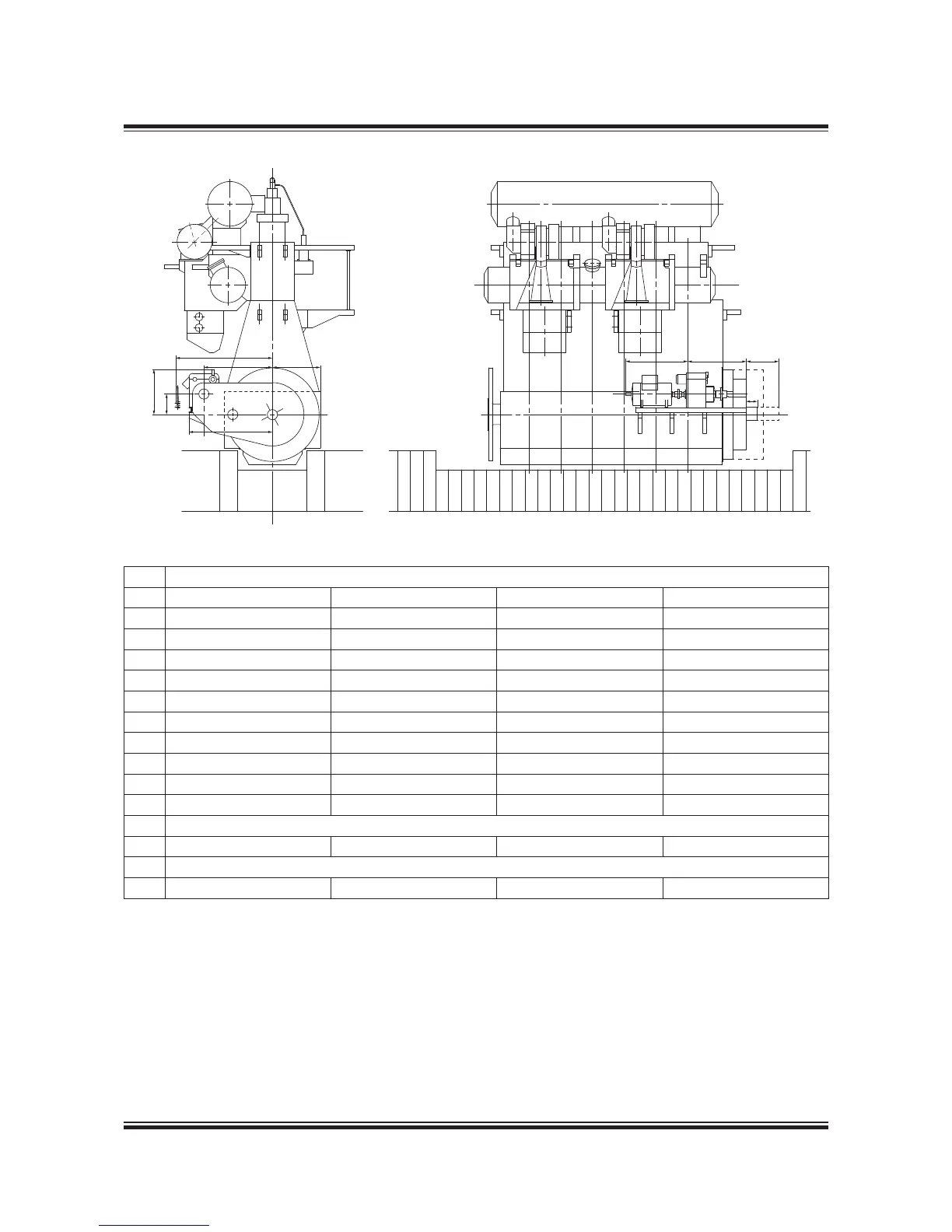

Fig. 4.02.01: Space requirement for side mounted generator PTO/RCF type BWlll S65-C/RCF
kW generator
700 kW 1,200 kW 1,800 kW 2,600 kW
A 2,867 2,867 3,007 3,007
B 632 632 632 632
C 3,527 3,527 3,807 3,807
D 3,923 3,923 4,203 4,203
F 1,682 1,802 1,922 2,032
G 2,470 2,470 2,830 2,830
H 2,028 2,530 2,915 4,235
J 2,085 2,085 2,085 2,085
S 1,000 1,000 1,000 1,000
Z 500 500 500 500
System mass (kg) with generator:
23,750 27,500 39,100 52,550
System mass (kg) without generator:
21,750 24,850 34,800 47,350
178 65 39-0.1
F
D
A
J
Z
B
C
HGS
Cyl. 1
