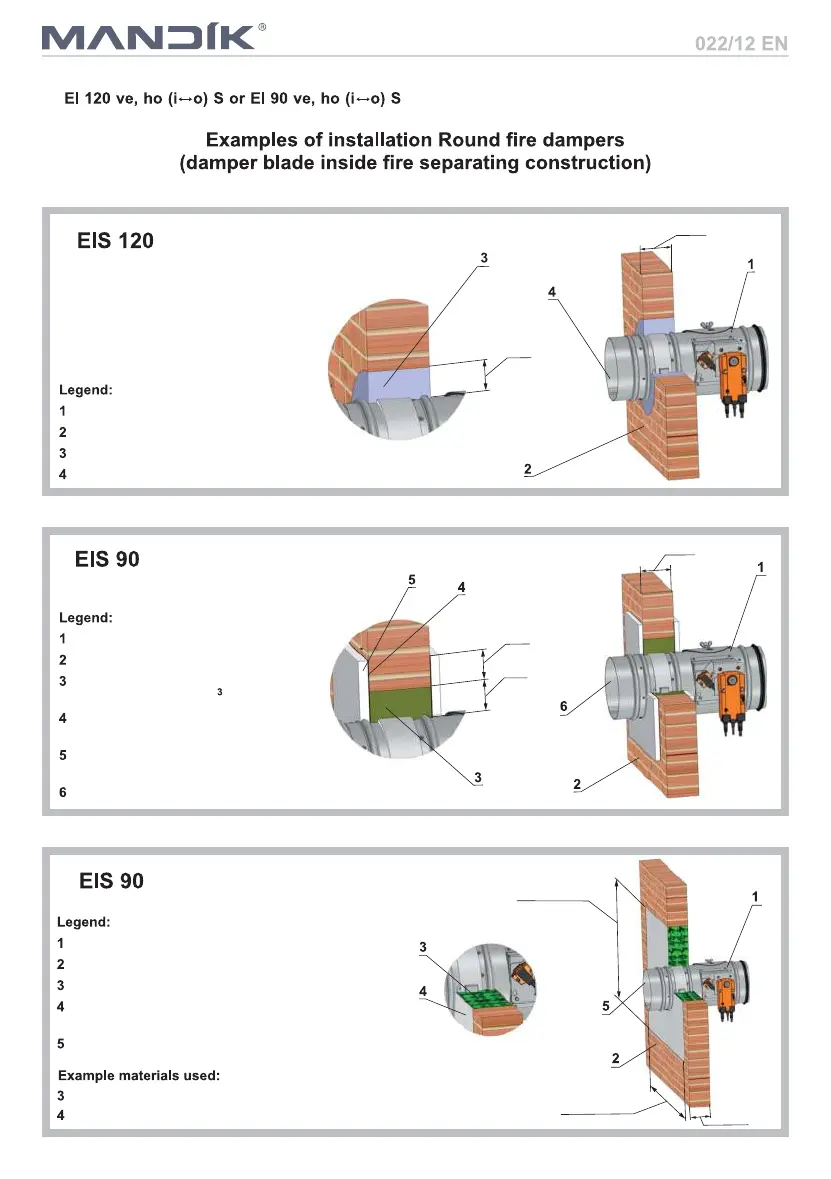

Mandik FDMB Series - Round Fire Dampers: Installation Examples (Blade Inside)

1
FIRE damper type FDMB, is in all variants classified:
as
acc. EN 13501-3 and tested acc. EN 1366-2 and acc.
EN 15650.
Installation in a solid wall construction
Fire damper FDMB
Solid wall construction
Mortar or gypsum
Duct
≥ 100
≥ 40
Installation in a solid wall construction
≥ 100
≥ 40
≥ 50
Fire damper FDMB
Solid wall construction
Stuffing box (mineral stone wool
min. density 140 kg/m )
Fire protection mastic
min. thickness 1 mm
Cement lime plate
min. thickness 15 mm
Duct
Installation in a solid wall construction (Weichschott system)
Fire damper FDMB
Solid wall construction
Fire protection plate of mineral wool
Fire protection mastic
min. thickness 1 mm
Duct
D+60 to 800
max. 1650
D+60 to 800
max. 2050
Hilti CP673 PF
Hilti CP673
≥ 100
