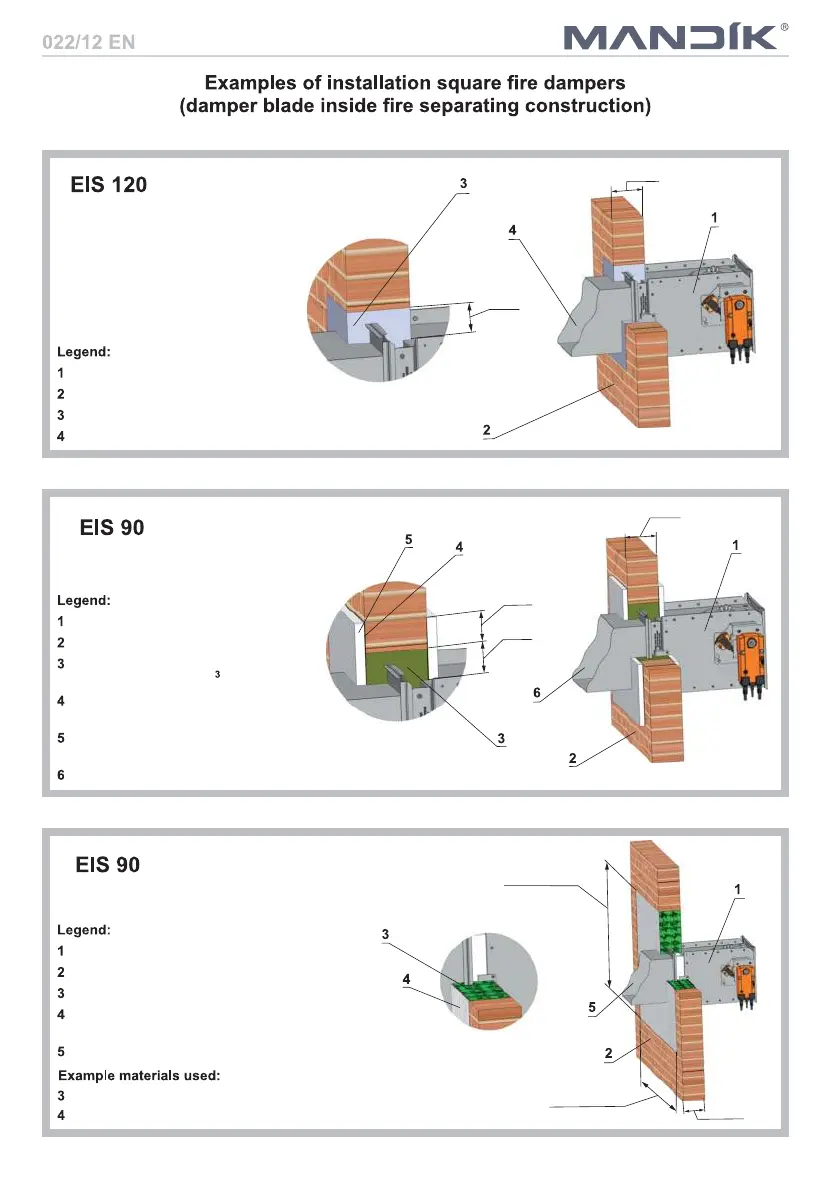

Mandik FDMB Series - Square Fire Dampers: Installation Examples (Blade Inside); Installation in Solid Wall (EIS 120)

4
Installation in a solid wall construction
≥ 100
≥ 50*
* Around the perimeter
Fire damper FDMB
Solid wall construction
Mortar or gypsum
Duct
Installation in a solid wall construction
≥ 100
≥ 50*
≥ 50*
* Around the perimeter
Fire damper FDMB
Solid wall construction
Stuffing box (mineral stone wool
min. density 140 kg/m )
Fire protection mastic
min. thickness 1 mm
Cement lime plate
min. thickness 15 mm
Duct
Installation in a solid wall construction (Weichschott system)
≥ 100
A+60 to 800
max. 1650
B+60 to 800
max. 2050
Fire damper FDMB
Solid wall construction
Fire protection plate of mineral wool
Fire protection mastic
min. thickness 1 mm
Duct
Hilti CP673 PF
Hilti CP673
