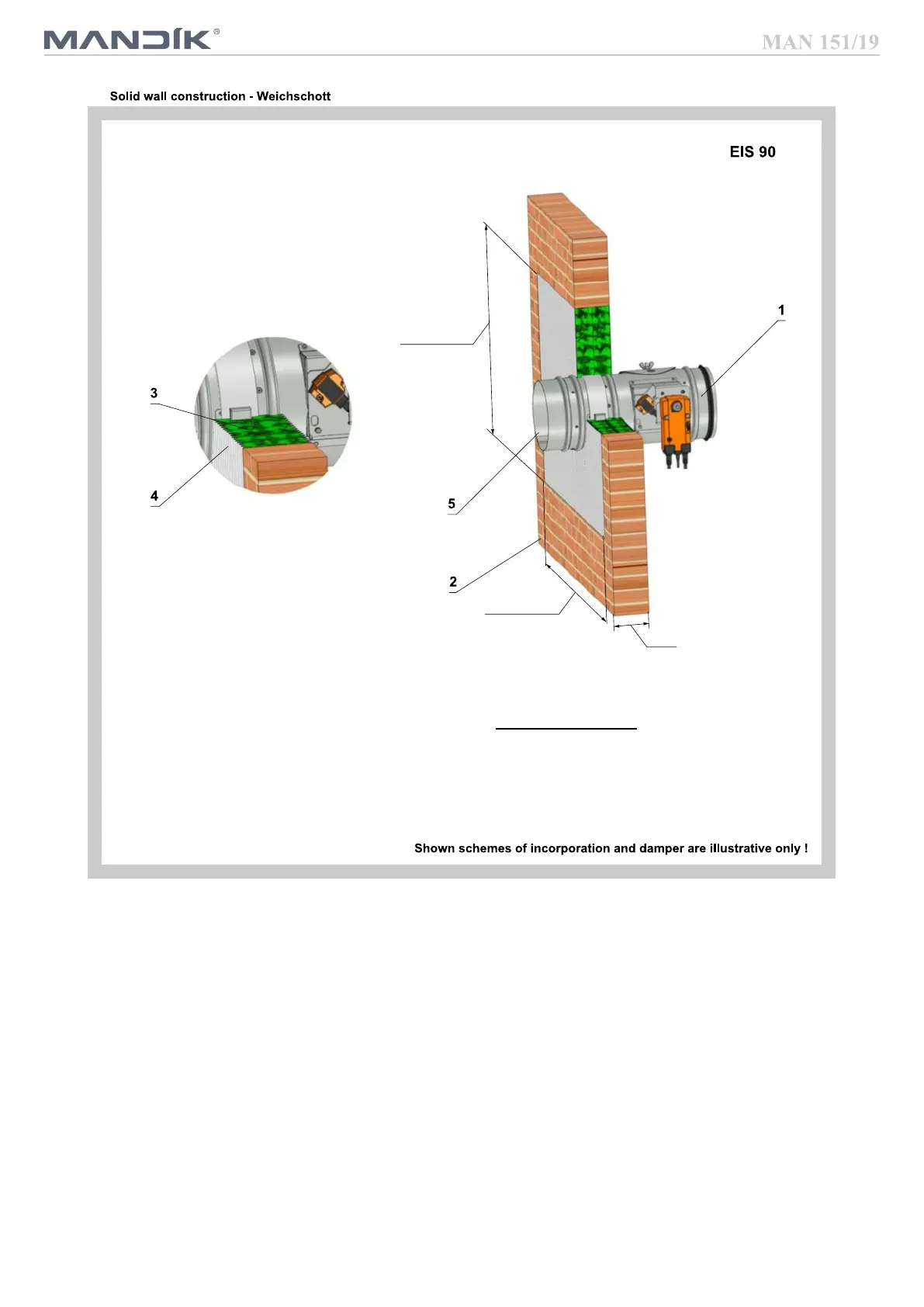

Mandik FDMR - Design with Spring Return Actuator

6
Position:
1 Fire damper
2 Solid wall construction
3 Fire resistant board
4
Fire stop coating thickness 1 mm
5 Duct
Used materials - example:*
3
Hilti CFS-CT B 1S 140/50
4 Hilti CFS-CT
* Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
≥ 100
D+60 to 800
max. 2050
D+60 to 800
max. 1650
