9
≥ 40
≥ 25
≥ 50

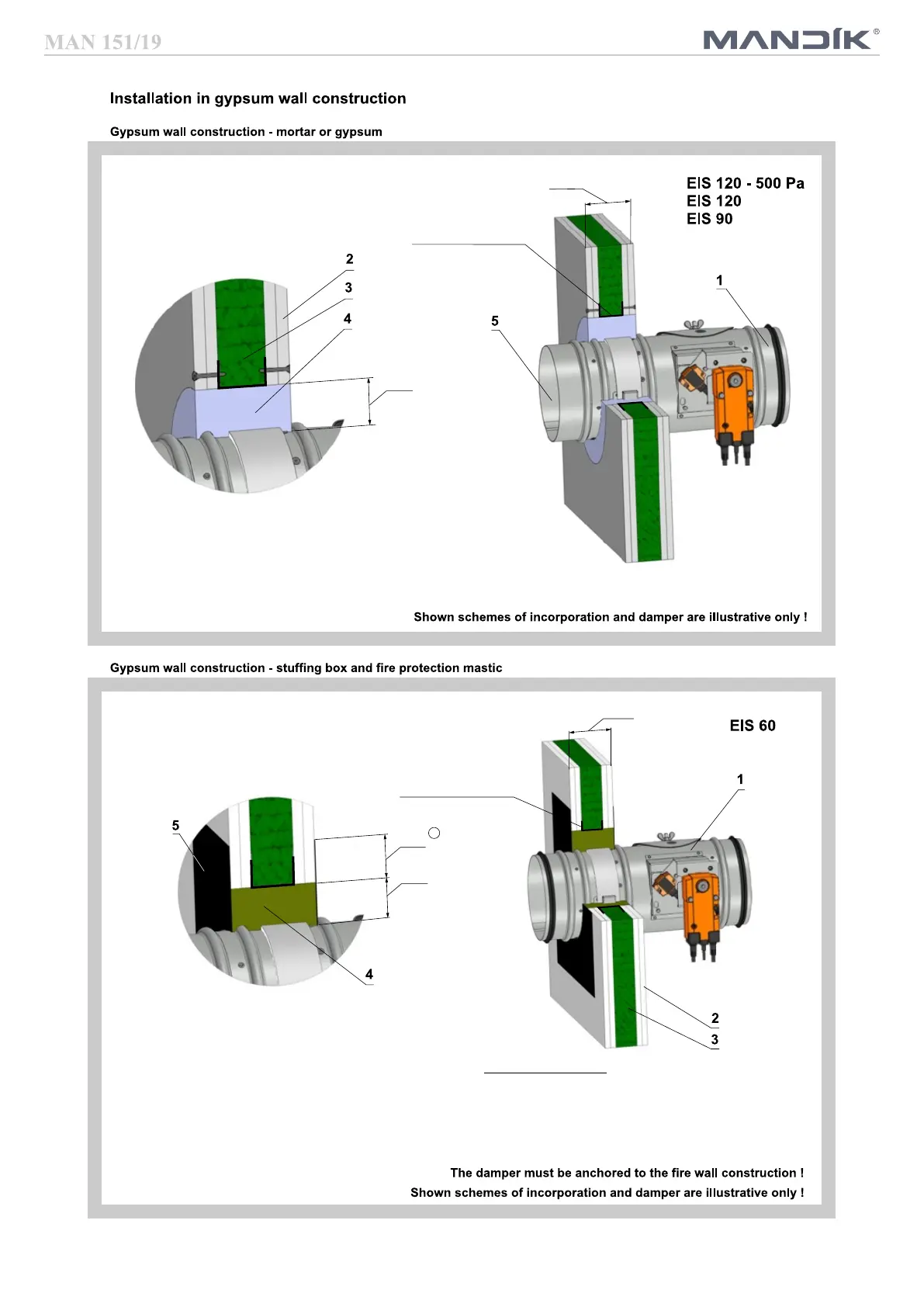

Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.
Position:
1 Fire damper
2 Gypsum plate
3
Mineral wool (type depending on the type of construction)
4 Mortar or gypsum
5 Duct
Used materials - example:*
4
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
5 Promastop - P, K, Hilti CFS-CT
* Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
Position:
1 Fire damper
2 Gypsum plate
3
Mineral wool (type depending on the type of construction)
4 Stuffing box (mineral stone wool min. density 140 kg/m³)
5 Fire protection mastic min. thickness 1 mm
≥ 100
Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.
5
≥ 100
