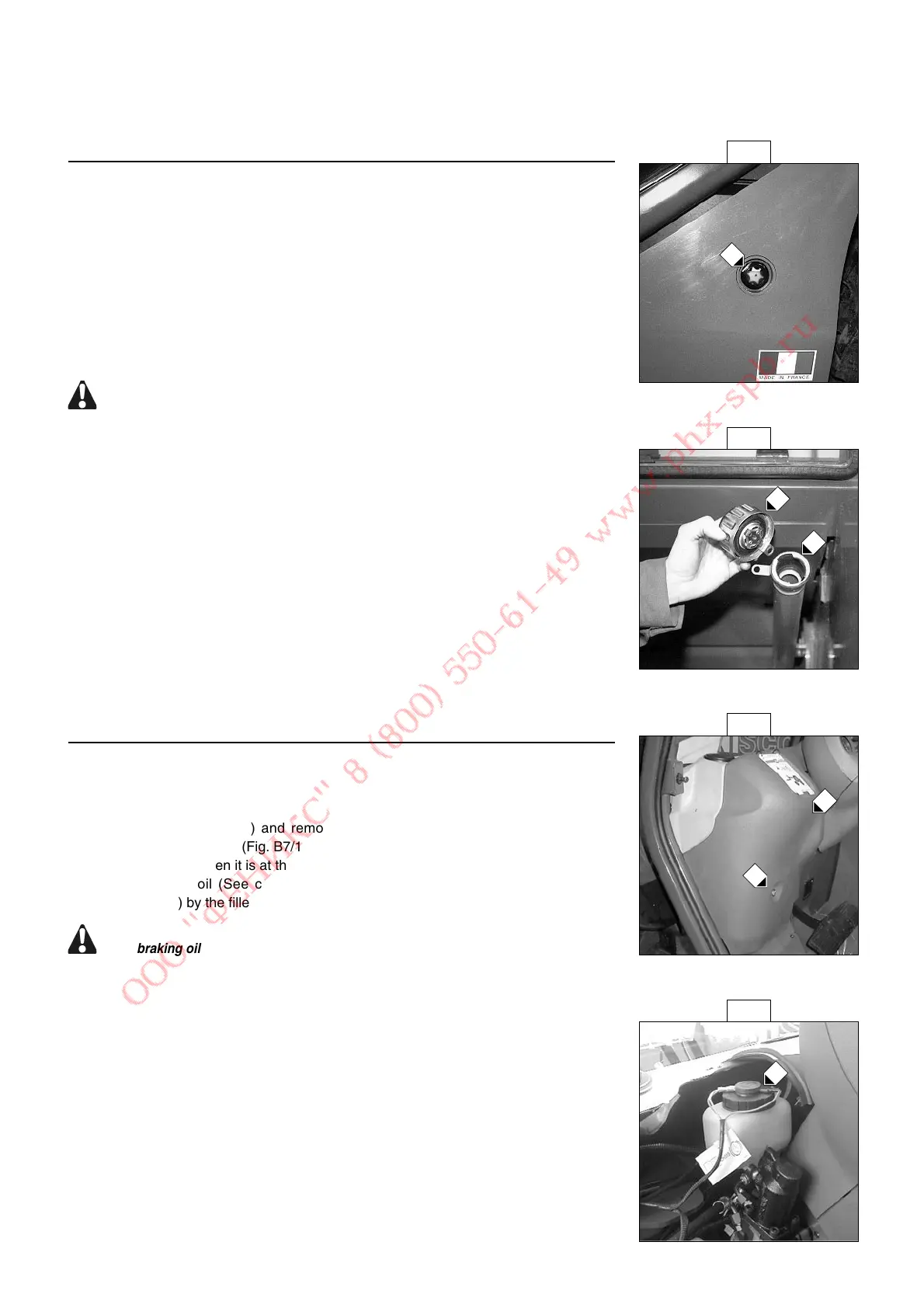

B6 - HYDRAULIC OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped, and the jib retracted and
lowered as far as possible.
- Refer to gauge 1 (Fig. B6/1).
- The oil level is correct when it is at the level of the red point.
- If necessary, add oil (See chapter : LUBRICANTS AND FUEL in paragraph : 3 -
MAINTENANCE).
- Remove cap 2 (Fig. B6/2).
- Add oil by filler port 3 (Fig. B6/2).
Use a clean funnel and clean the underside of the oil drum before filling.
- Put the cap back.
Always maintain the oil level at maximum as cooling depends on the oil flowing through
the tank.
B7 - B
RAKE OIL LEVEL
CHECK
Place the lift truck on level ground.
- Loosen screw 1 (Fig. B7/1) and remove the access panel for braking oil tank and
windscreen washer tank 2 (Fig. B7/1).
- The level is correct when it is at the MAXI level on the tank.
- If necessary, add oil (See chapter : LUBRICANTS AND FUEL in paragraph : 3 -
MAINTENANCE) by the filler port 3 (Fig. B7/2).
If the braking oil level is abnormally low, consult your dealer.
B7/1
1
2
B6/1
B6/2
1
2
3
B7/2
3
