Manitou E-E3 Series User Manual

3-21
B7 - WINDSCREEN WASHER LIQUID LEVEL
CHECK

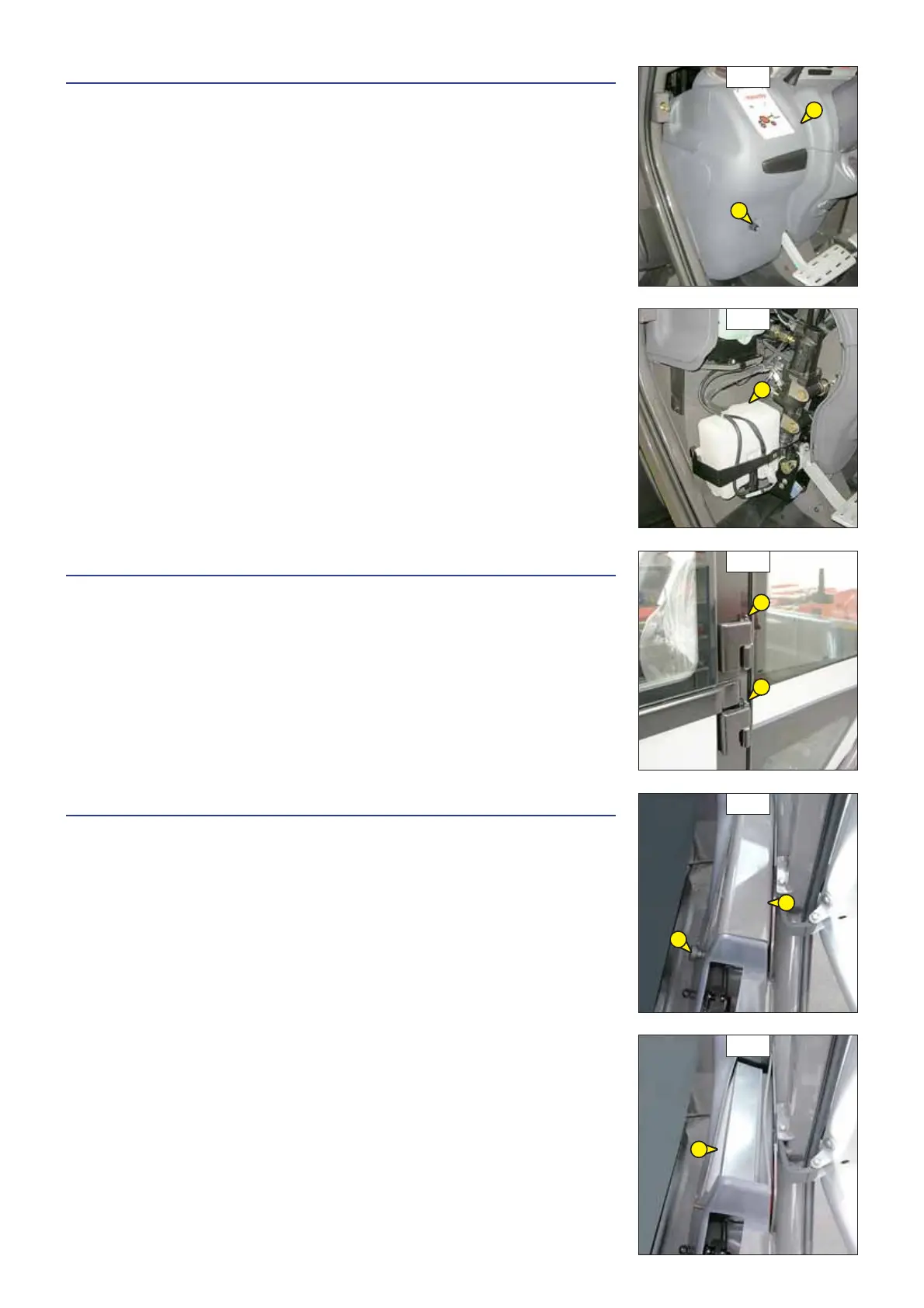

- Loosen screw 1 (fig. B7/1) and remove the access panel for braking oil tank and windscreen
washer tank 2 (fig. B7/1).
- Check visually the level.
- If necessary add windscreen washer liquid (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by
filler port 3 (fig. B7/2).
B8 - CAB DOOR
GREASE
- Clean and lubricate the points 1 (4 lubricators) (fig. B8) with grease (see: 3 - MAINTENANCE:
LUBRICANTS AND FUEL) and remove the surplus of grease.
B9 - CAB VENTILATION FILTER (OPTION AIR CONDITIONING)
CLEAN
- Unscrew the thumbscrew 1 (fig. B9/1) and remove protective guard back 2 (fig. B9/1).
- Lift out cabin ventilation filter 3 (fig. B9/2).
- Clean the filter using a compressed air jet.
- Check its condition and change if necessary (see: 3 - MAINTENANCE: FILTERS CARTRIDGES AND
BELTS).
- Refit the filter and protective casing.
B7/2
3
B8
1
1
B7/1
2
1
B9/1
1
2
B9/2
3
647083 EN (21/06/2011)
