C6 - CAB VENTILATION FILTER (OPTION AIR CONDITIONING)
CHANGE

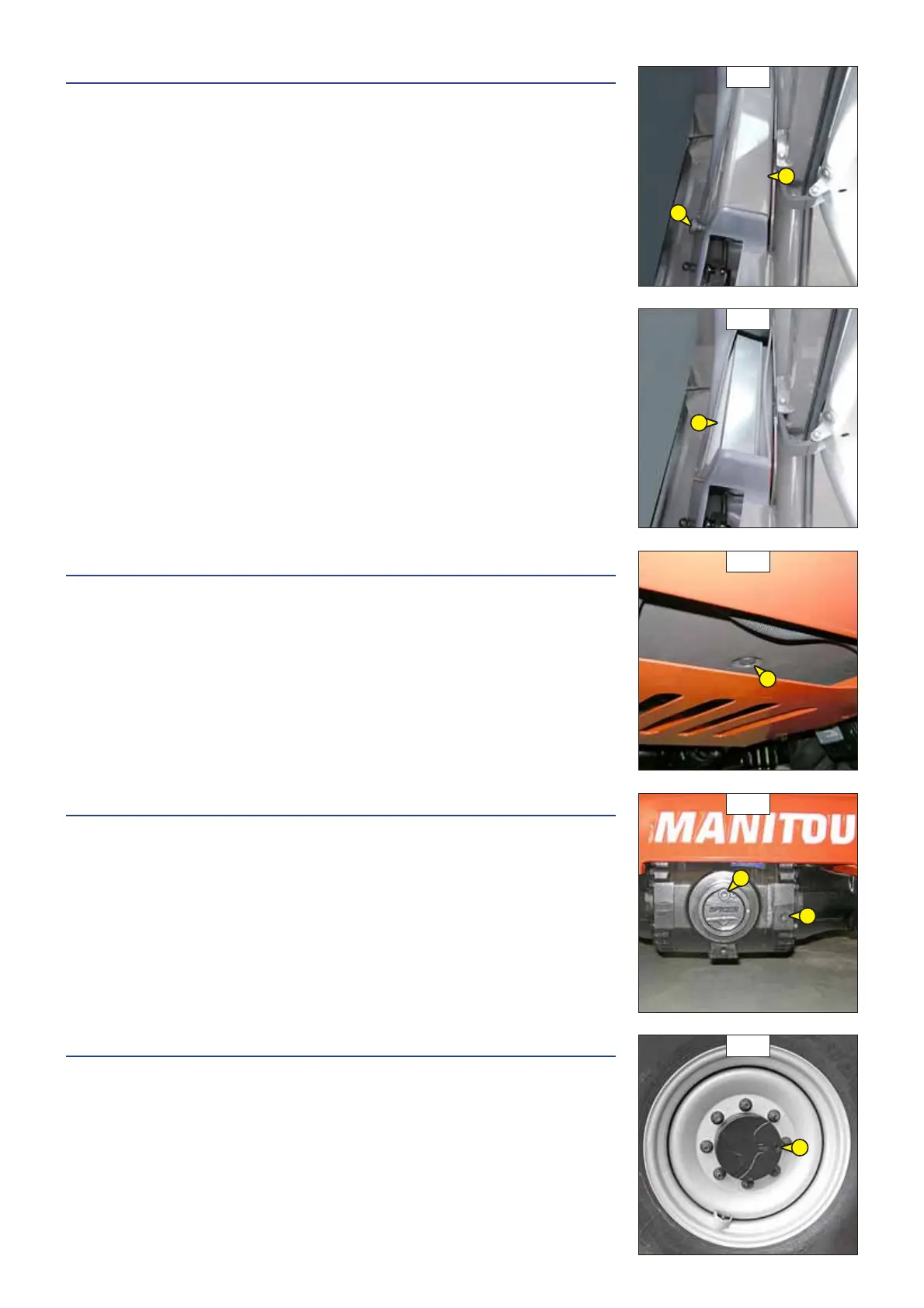

- Unscrew thumbscrew 1 (fig. C6/1) and remove protective guard back 2 (fig. C6/1).
- Lift out cabin ventilation filter 3 (fig. C6/2) and replace it with a new one (see: 3 - MAINTENANCE:
FILTERS AND BELTS).
- Refit the protective casing.
C7 - HEATING BLOCK NON-RETURN VALVE
CLEAN
- Since non-return valve 1 (fig. C7) is located under the cab, it is possible for it to become
obstructed with spattered mud for example. Clean if necessary.
C8 - FRONT AND REAR DIFFERENTIAL OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Remove level plug 1 (fig. C8). The oil should be flush with the edge of the hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the filler port 2 (fig.
C8).
- Replace and tighten the level plug 1 (fig. C8) (tightening torque 34 to 49 N.m).
- Repeat this operation for the rear axle differential.
C9 - FRONT AND REAR WHEELS REDUCERS OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Check the level on each front wheel reducer.
- Place level plug 1 (fig. C9) in the horizontal position.
- Remove the level plug, the oil should be flush with the edge of the hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the same hole.
- Replace and tighten the level plug 1 (fig. C9) (tightening torque 34 to 49 N.m).
- Repeat this operation on each rear wheel reducer.
