2 - 27

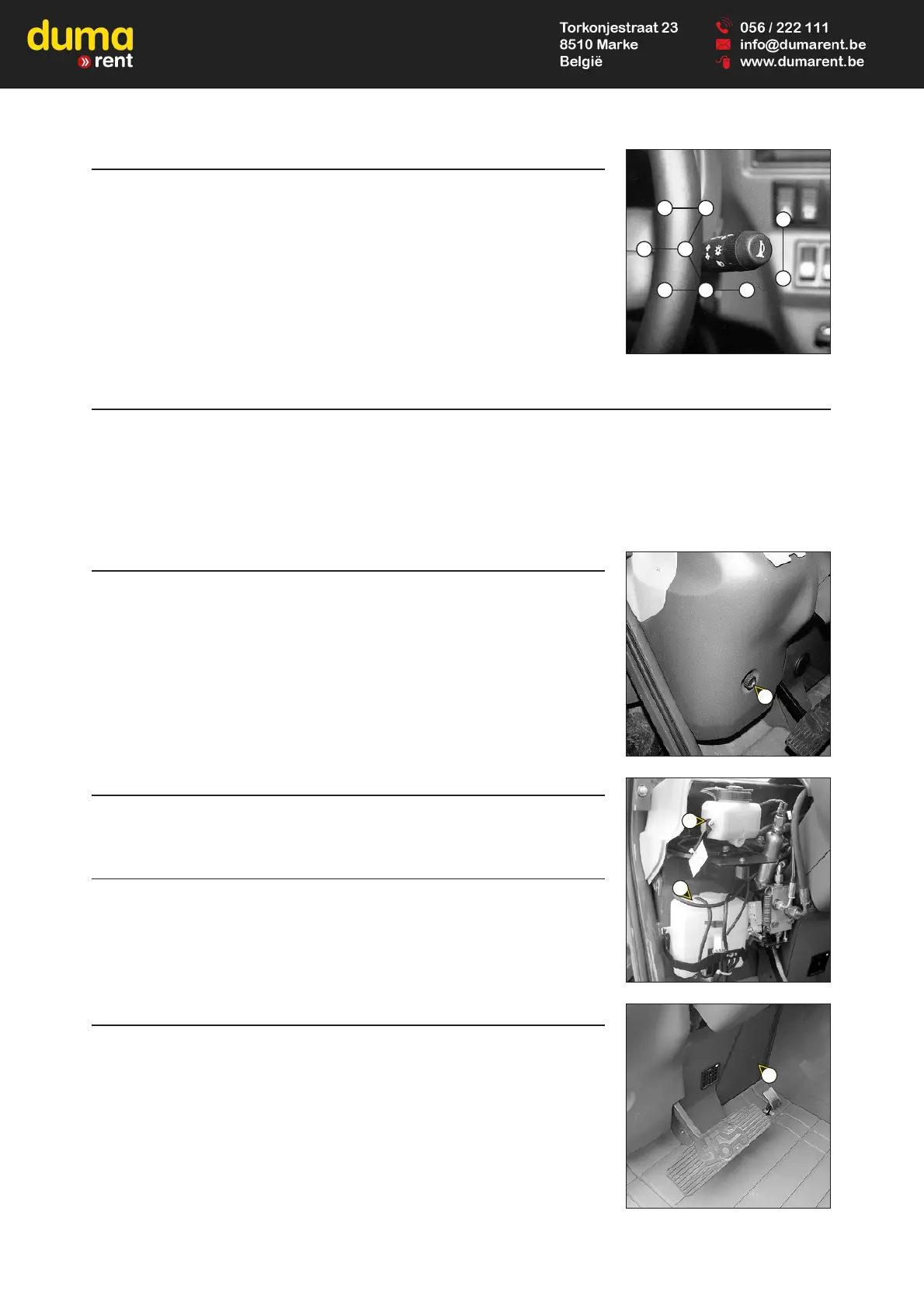

6 - LIGHT SWITCH, HORN AND INDICATOR SWITCH
The switch controls the visual and sound alarms.
A - All lights are off, the direction indicators do not flash.
B - The right hand direction indicators flash.
C - The left hand direction indicators flash.
D - The sidelights and the rear lights are on.
E - The dipped headlights and the rear lights are on.
F - The main beam headlights and the rear lights are on.
G - Headlight signal.
Pressing the switch sounds the horn.
NOTE: The positions D - E - F - G can be carried out without the ignition being on.
7 - IGNITION SWITCH
The key switch has five positions:
P - Ignition off, parking position.
O - Ignition switched off and I.C. engine stopped.
I - Ignition on.
II - Heating.
III - The I.C. engine starts, return to position i as soon as the key is released.
8 - BRAKING OIL TANK AND WINDSCREEN WASHER ACCESS PANEL
- Loosen screw 1 and lift up the brake fluid and windscreen washer access panel.
9 - BRAKING OIL TANK
See: 3 - MAINTENANCE: B - EVERY 50 HOURS SERVICE.
10 - WINDSCREEN WASHER TANK
See: 3 - MAINTENANCE: B - EVERY 50 HOURS SERVICE.
11 - FUSE AND RELAY ACCESS PANEL
- Lift up the fuse and relay access panel 11.
C
B
G
G
G E F
D
A
8
9
10
11
