2 - 31
MT 523 MONO-ULTRA Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
NOTE: If necessary use the steering to reset the hydraulic
control steering accumulator.

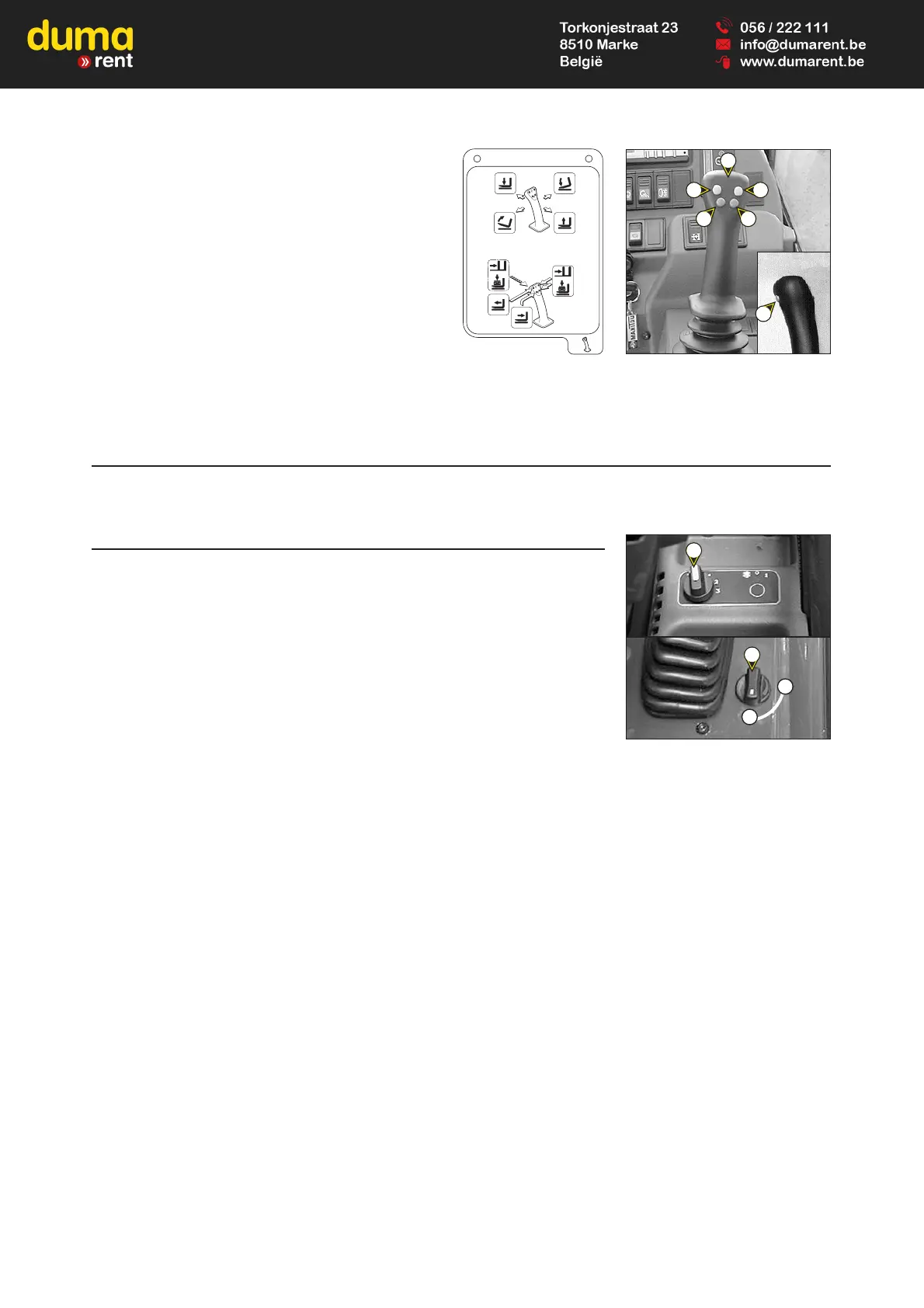

LIFTING OF THE LOAD
- The lever A backwards when lifting.
- The lever A forwards when lowering.
TILT OF THE CARRIAGE
- The lever A to the left for reverse tilt.
- The lever A to the right for forward tilt.
TELESCOPING
- Press button B for the extension.
- Press button C for the retraction.
ATTACHMENT
- Press buttons D or E.
OPTION JIB HEAD ELECTROVALVE
- Button F (see: 2 - DESCRIPTION: DESCRIPTION AND USE OF ELECTRIC AND HYDRAULIC OPTIONS).
20 - LOAD CHARTS FILE
This file includes the description of the hydraulic controls and the load charts of the attachments used on the lift truck.
21 - HEATER CONTROL
MLT 523 Turbo Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
A - HEATING FAN CONTROL
This 3-speed control regulates warm or cold air through the heating ventilators.
B - HEATING TEMPERATURE CONTROL
Allows the temperature inside the cab to be adjusted.
B1 - With the valve closed, the fan delivers fresh air.
B2 - With the valve opened completely, the fan delivers warm air.
The intermediate positions allow the temperature to be adjusted.
B D
F
A
C
E
