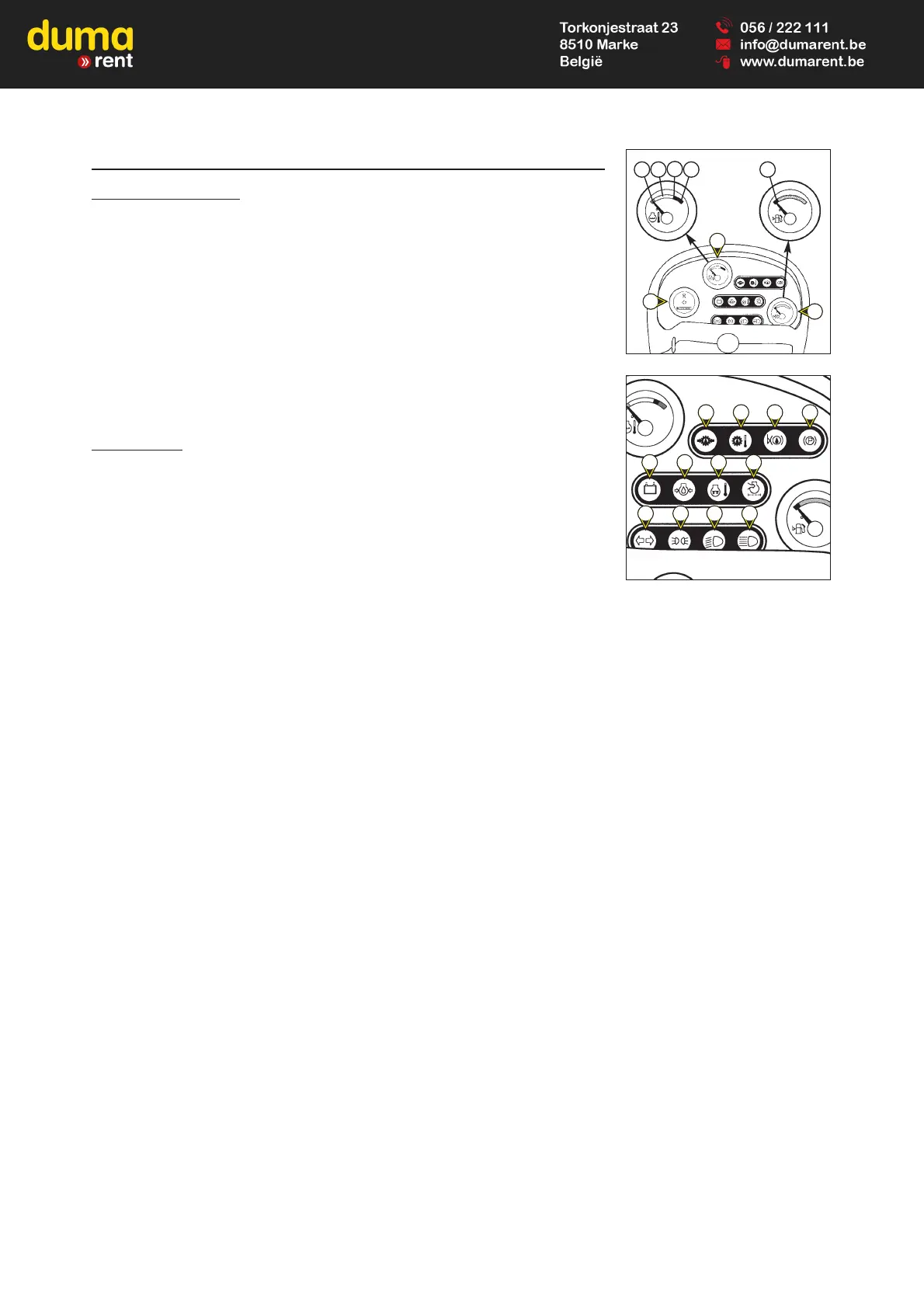

3 - CONTROL AND SIGNAL LIGHTS PANEL
CONTROL INSTRUMENTS
A - HOURMETER
B - I.C. ENGINE WATER TEMPERATURE
Temperature zone B1 - Blue zone (0° - 50°)
B2 - Green zone (50° - 100°)
B3 - Black/red zone (100° - 105°)
B4 - Red zone (105° - 120°)
NOTE: Red indicator light “J” comes on between zone B3 and B4.
C - FUEL LEVEL
Red zone C1 indicates that you are using the reserve supply and that time of use is
limited.
SIGNAL LIGHTS
When activating the electrical system of the lift truck, all the red lamps and the panel's
buzzer must light to indicate their good working order. If one of the red lamps or the buzzer
does not function, carry out the necessary repairs.
D - NOT USED
E - NOT USED
F - RED BRAKING OIL LEVEL LAMP
If the lamp and the buzzer come on, when the lift truck is running, stop the I.C. engine immediately and check the braking oil level.
In the event of an abnormal dropping of the level, consult your dealer.
G - RED PARKING BRAKE LAMP
This lamp comes on when the parking brake is applied.
H - RED ALTERNATOR CHARGE LAMP
If the lamps F - H - I - J - K and the buzzer come on, when the lift truck is running, stop the I.C. engine immediately and check the
electrical circuit as well as the alternator belt.
I - RED I.C. ENGINE OIL PRESSURE LAMP
If the lamp and the buzzer come on when the lift truck is running, stop the I.C. engine immediately and look for the cause (see
oil level in I.C. engine crankcase).
J - RED I.C. ENGINE WATER TEMPERATURE LAMP
If the lamp and the buzzer come on when the lift truck is running, stop the I.C. engine immediately and investigate the cooling
system for the cause of the malfunction.
K - RED LAMP - AIR FILTER OR HYDRAULIC RETURN FILTER CLOGGED
The lamp and buzzer come on when the air filter cartridge or the hydraulic return oil filter cartridge is clogged up. Stop the lift truck
and carry out the necessary repairs (see cleaning and replacement requirements in chapter: 3 - MAINTENANCE: FILTERS
CARTRIDGES AND BELTS).
L - GREEN INDICATOR LAMP
M - GREEN SIDELIGHTS LAMP
N - GREEN LOW BEAM LAMP
O - BLUE MAIN BEAM LAMP
B3
B4 C1B2B1
A
B
C
GFED
KJIH
ONML
