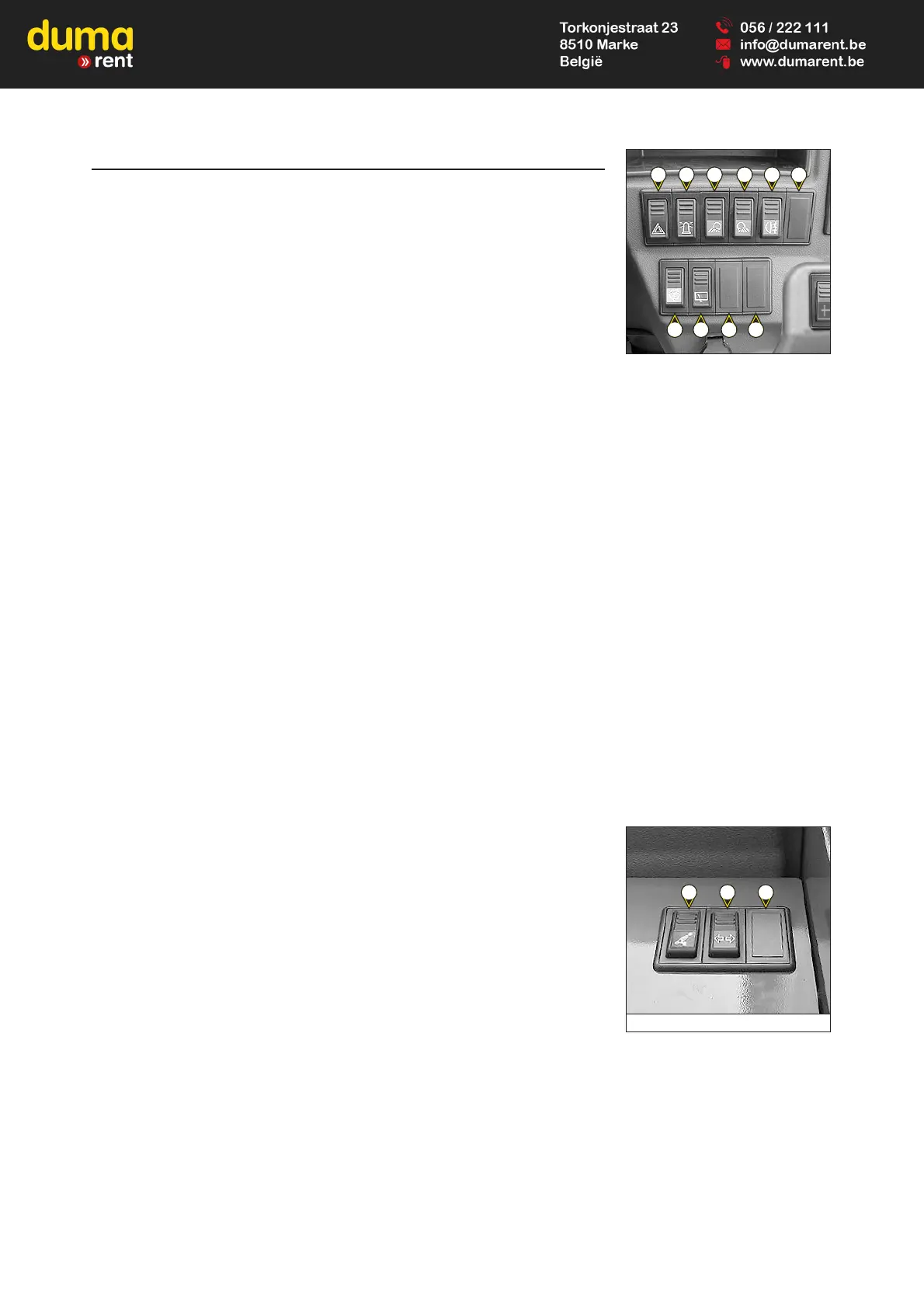

5 - SWITCHS PANEL
The location of the switches may vary depending on the options.
A - WARNING LIGHTS
This switch enables the L.H. and R.H. Indicators to be switched on simultaneously, with
the ignition off. The signal light indicates that the switch is being used.
B - FLASHING LIGHT
C - FRONT WINDSCREEN WIPER AND WINDSCREEN WASHER
This switch, when set on on the "intermediate" position, the windscreen wiper to be
operated and the "down" position and simultaneously pressed, the windscreen-washer to
be operated.
D - REAR WINDSCREEN WIPER + ROOF WINDSCREEN WIPER
E - OPTION
- OPTION Working head light.
F - OPTION
- OPTION Working tail light.
G - OPTION
- OPTION Jib head light.
- OPTION Blue front working light.
H - OPTION
MLT 523 Turbo Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
- OPTION Rear window defrosting.
I - OPTION
- OPTION Electrovalve on jib head.
- OPTION Attachment hydraulic locking device.
- OPTION Electrical jib provision.
- OPTION Electrovalve on jib head + attachment hydraulic locking device.
See: 2 - DESCRIPTION: DESCRIPTION AND USE OF ELECTRIC AND HYDRAULIC OPTIONS.
J - OPTION
K - OPTION
MT 523 MONO-ULTRA Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
L - OPTION
MT 523 MONO-ULTRA Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
- OPTION Dual effect hydraulic towing hook.
- OPTION Single or dual effect rear hydraulic predisposition.
See: 2 - DESCRIPTION: DESCRIPTION AND USE OF ELECTRIC AND HYDRAULIC OPTIONS.
M - OPTION
MT 523 MONO-ULTRA Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
A B E F G H
C D I J
MT/MLT 523 . . . MONO-ULTRA Série B-E2
K L M
