Manitou MLT 523 Turbo User Manual

2 - 41

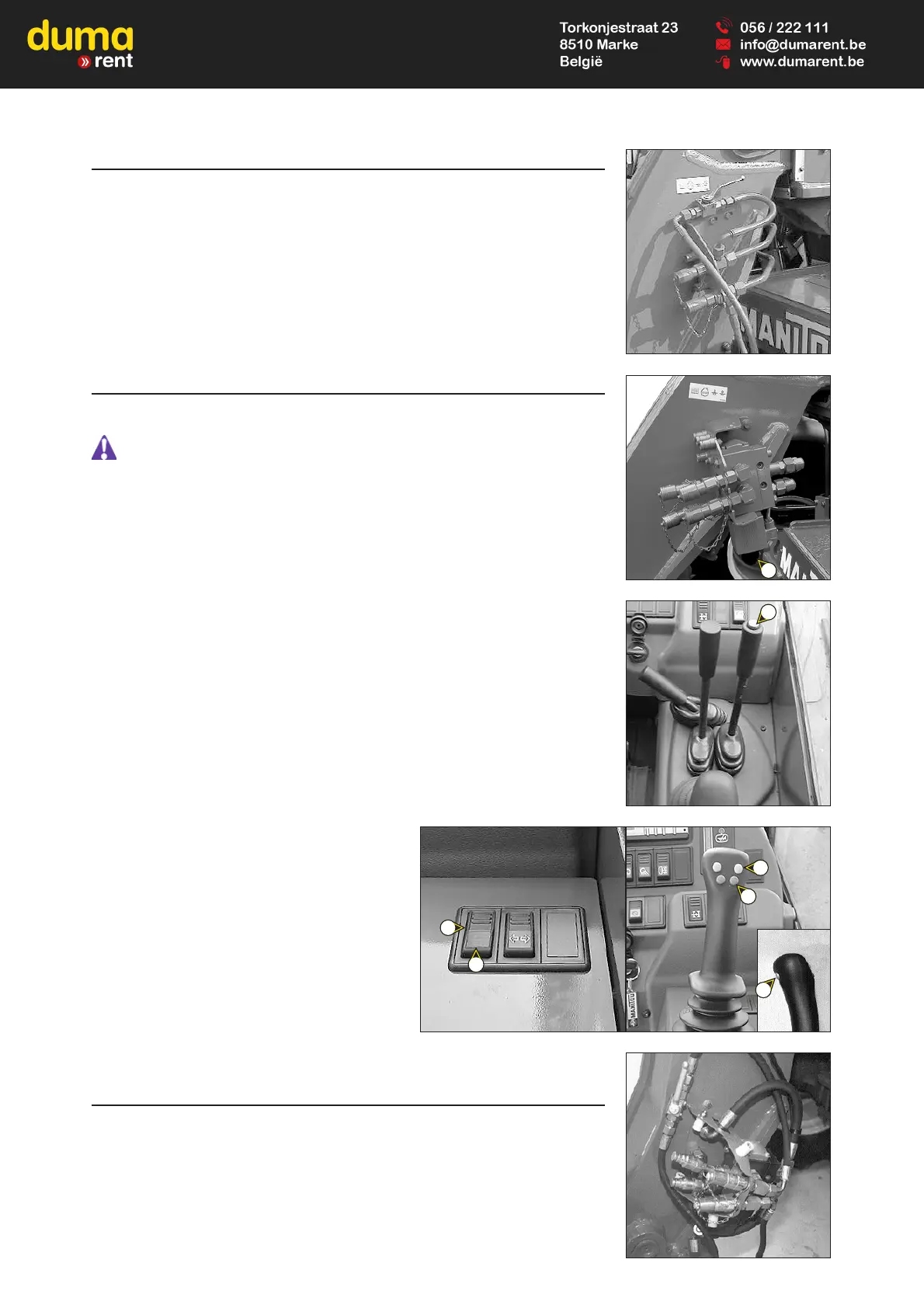

9 - HYDRAULIC ATTACHMENT LOCKING
Enables attachment locking to be controlled on the carriage and the use of a hydraulic
attachment on the same hydraulic circuit (see: 4 - ADAPTABLE ATTACHMENTS IN OPTION
ON THE RANGE: PICKING UP THE ATTACHMENTS).
10 - JIB HEAD ELECTROVALVE
Enables use of two hydraulic functions on the attachment circuit.
To make connection of the rapid connectors easier, decompress the hydraulic circuit by
pressing button 1 on the electrovalve.
FUNCTIONING
MT 523 Série B-E2
MLT 523 Turbo Série B-E2
MT 620 Série B-E2
- Button 1 not engaged, the lever controls a hydraulic function.
- Hold button 1 down, the lever controls another hydraulic function.
FUNCTIONING
MT 523 MONO-ULTRA Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
- Button 1 not engaged, buttons 2 and 3 control a
hydraulic function.
- Hold button 1 down, buttons 2 and 3 control another
hydraulic function.
NOTE: Switch 4 enables the hydraulic function
controlled by button 1 to be locked. Indicator 5
lights up to show when it is in use.
11 - JIB HEAD ELECTROVALVE + PREARRANGED HYDRAULIC ATTACHMENT
LOCKING
The addition of these two options enables the combining of several hydraulic functions.
1
1
4
5
2
1
3
