2 - 74

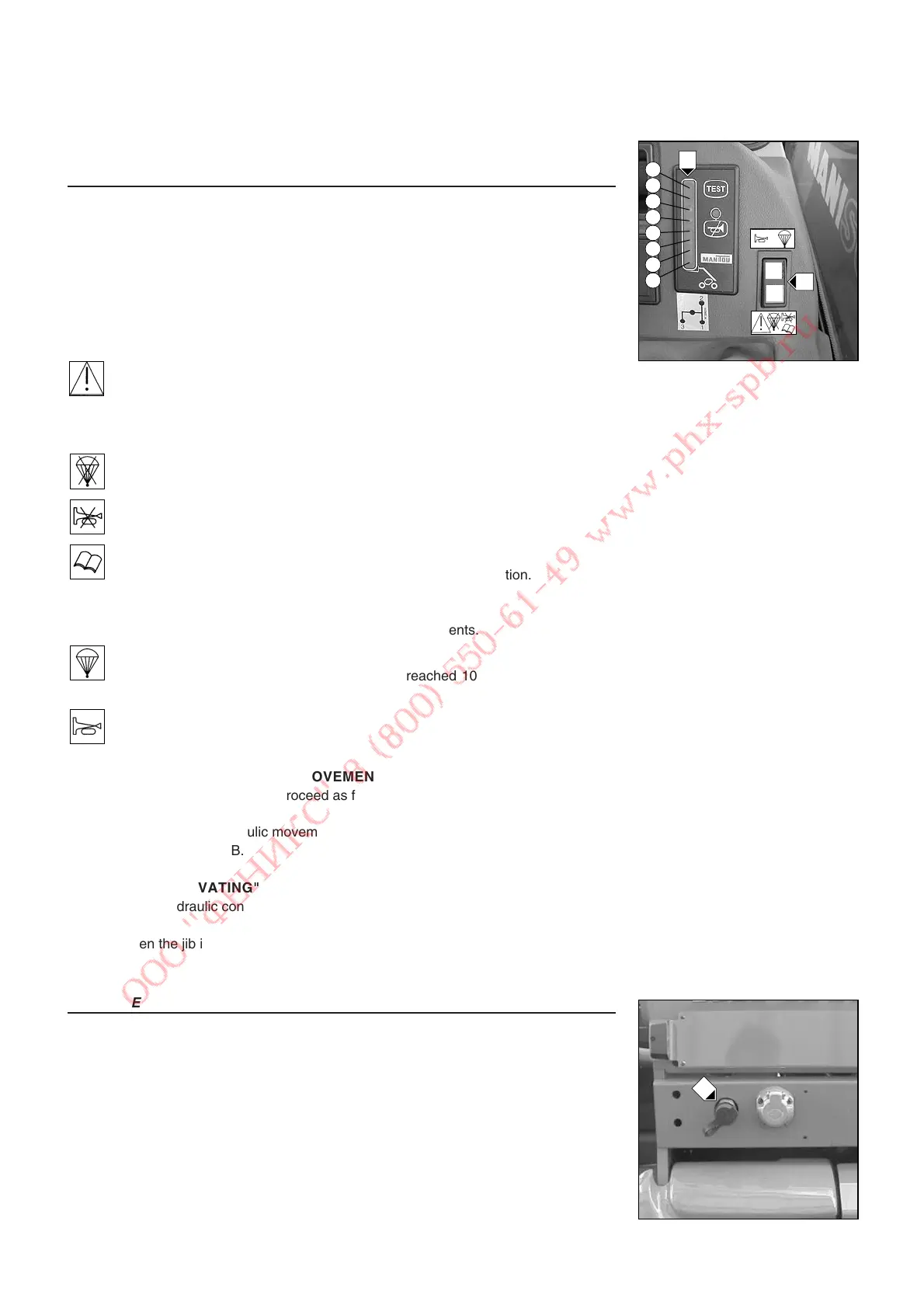

15 - CUT OUT "SIMPLE" OR "AGGRAVATING" HYDRAULIC
MOVEMENTS
Switch 1 enables or disables the "SIMPLE" or "AGGRAVATING" hydraulic movement
cut out device.
OPERATION
SWITCH 1 TO POSITION A (INDICATOR LAMP ON) :
The "SIMPLE" or "AGGRAVATING" hydraulic movement cut out device is disabled, e.g.
for earth moving works.
Only the visual alarm C is in operation to indicate the load status.
C1 - 4 green leds : The lift truck is operating in perfect safety.
C2 - 2 yellow leds : The lift truck is approaching the maximum rated load.
C3 - 1 red led : The lift truck has reached the maximum rated load.
C4 - 1 red led : The lift truck is overloaded.
No cut-out of hydraulic movements.
The buzzer is disconnected.
See instruction manual for a description and utilization of this option.
SWITCH 1 TO POSITION B (INDICATOR LAMP OFF) :
With cut out "SIMPLE" or "AGGRAVATING" hydraulic movements.
Leds C4 and C3 indicate that the lift truck has reached 100% of the maximum rated load and all hydraulic movements
have been neutralized.
The buzzer is simultaneously set off.
CUT OUT "SIMPLE" HYDRAULIC MOVEMENTS
To recover the hydraulic controls, proceed as follows :
- Turn switch 1 to position A.
- Carry out the positive hydraulic movements in the following order : raise and retract the jib.
- Turn switch 1 to position B.
CUT OUT "AGGRAVATING" HYDRAULIC MOVEMENTS
To recover the hydraulic controls carry out the positive hydraulic movements (Raise and retract the jib).
NOTE : When the jib is retracted, the "SIMPLE" or "AGGRAVATING" hydraulic movement cut out function is disabled.
16 - PREARRANGED TRAILER LOCKING
Enables the hydraulic connection of a braked trailer (See chapter : TOWING PIN AND
HOOK in paragraph : 2 - DESCRIPTION).
A
B
C
C4
C3
C2
C2
C1
C1
C1
C1
1
