Manitou MRT 1432 - Page 52

MRT 1432 - 1635 M
SS
eries
IT
EN
PO
2
7

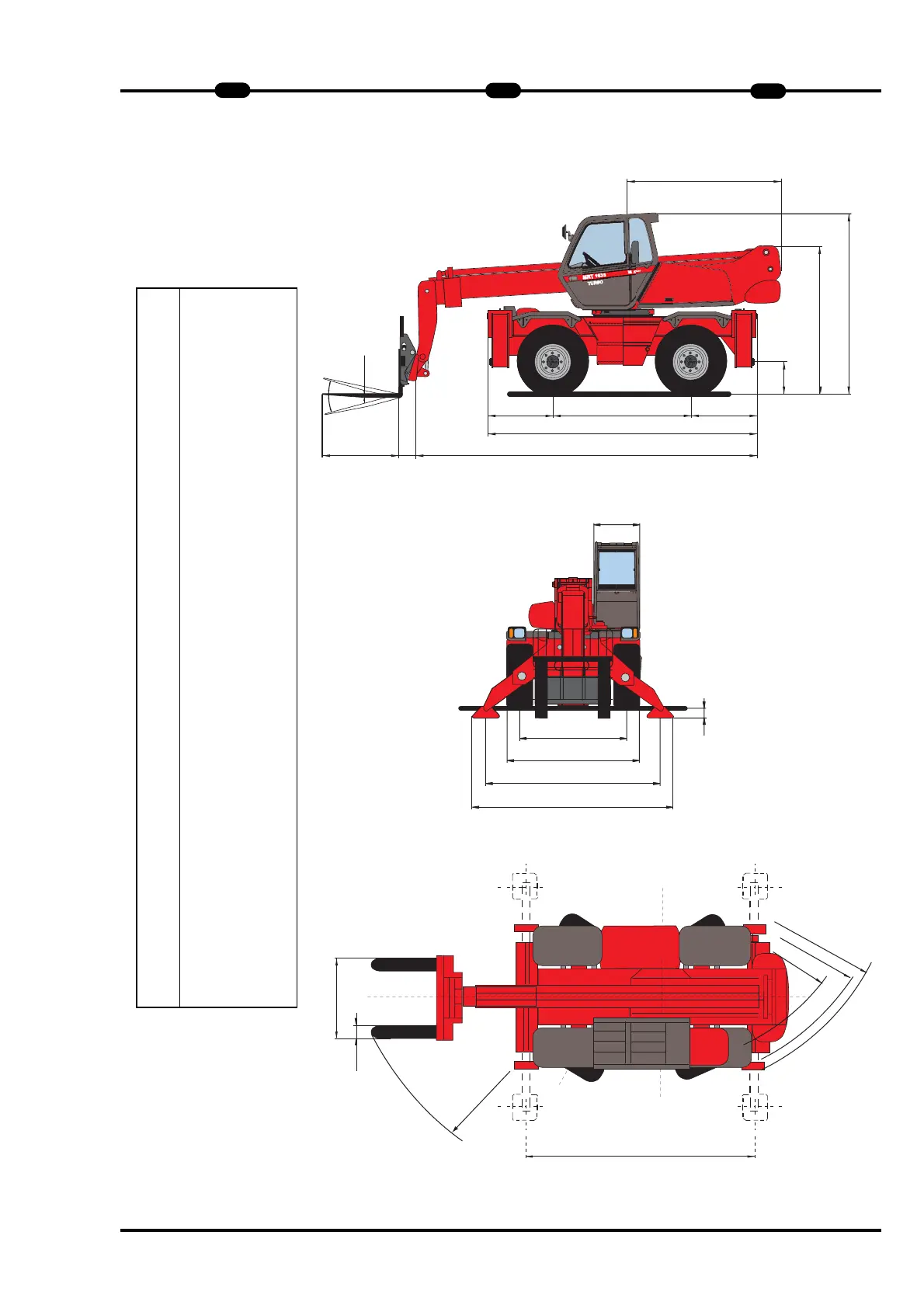

DIMENSION MRT 1635 DIMENSÕES MRT 1635DIMENSIONI MRT 1635
Z
Y
A 3
AB C
D
FGE
K
I
J
H
O
N
M
L
V
P
S
A1
A2
Q
R
U
T
A 1200 mm
A1 125 mm
A2 1320 mm
A3 45 mm
B 290 mm
C 6075 mm
D 4350 mm
E 1015 mm
F 2320 mm
G 1015 mm
H 340 mm
I 2375 mm
J 2970 mm
K 2485 mm
L 1930 mm
M 2390 mm
N 3400 mm
O 3800 mm
P 160 mm
Q 3900 mm
R 3410 mm
S 4000 mm
T 3600 mm
U 5520 mm
V 950 mm
Y 12°
Z 105°
