6
3
IT
MRT 1850 - 2150 - 2540
2
30
280

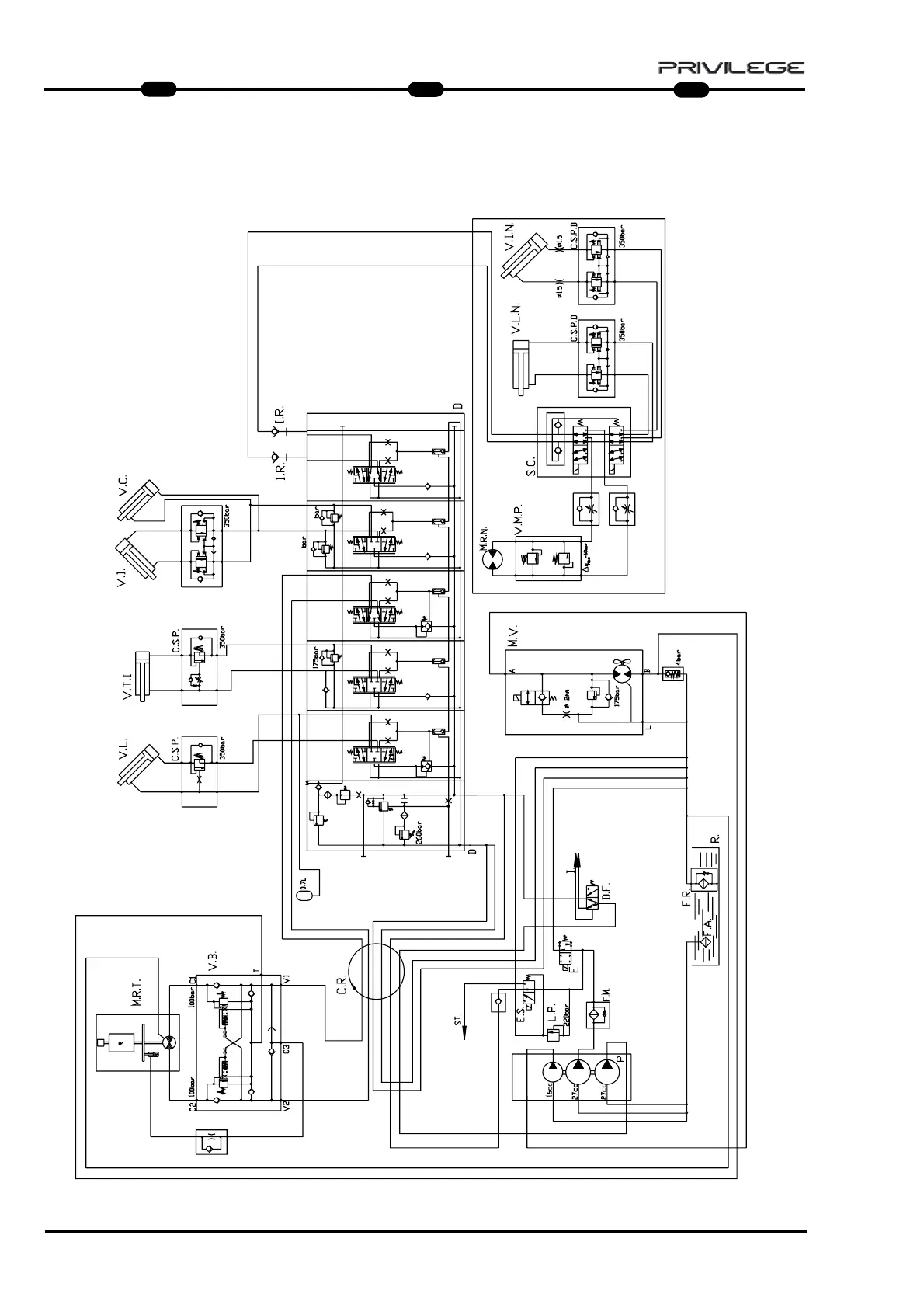

SCHEMA IDRAULICO
CESTELLO PENDOLO
ROTANTE
EN
DE
ROTATING SWINGING
BASKET HYDRAULIC
SYSTEM DIAGRAM
HYDRAULIC SCHEMA DREH-
BARER PENDELKORB
