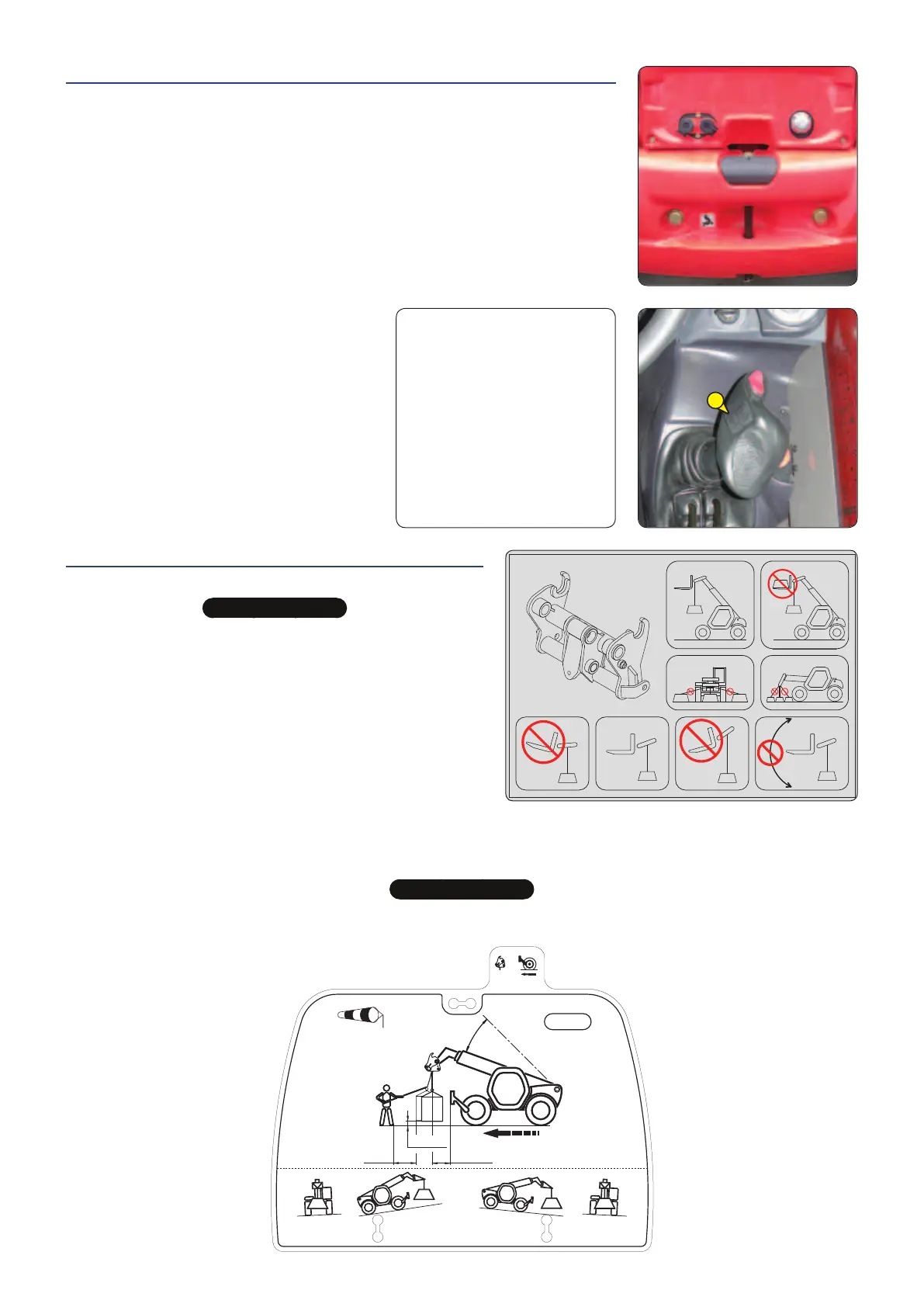

11 - DUAL EFFECT REAR HYDRAULIC CONTROL PREDISPOSITION
Enables the use of a hydraulic attachment at the rear of the lift truck (e.g. a trailer with
hydraulic tipping).
- Press down on switch 1 (indicator lamp lit) to power the hydraulic control at the
rear of the lift truck.
- Push switch 2 forward or backward.
12 - LIFTING RING ON SINGLE CARRIAGE
CONDITIONS OF USE

IMPORTANT

Follow the instructions given in your lift truck's instruction manual (see: 1 - OPERATING
AND SAFETY INSTRUCTIONS ON HANDLING LOADS), in addition to those given below.
- The lifting ring must be used WITHOUT FORKS AND
ATTACHMENTS, but the angle of inclination of the carriage
must be same as when the forks are used in the horizontal
position.
- Check the maximum authorized angle, which is 45°, on the
screen.
- Do not change the angle of the carriage while using the lifting
ring.
- The lifting hook, the chains and slings shall have a minimum
capacity of 3000 kg with a factor of safety against breakage of 4.
LOAD CHARTS AND FUNCTION SHEETS

IMPORTANT

The load charts are given for use without forks and without attachments.
2
N°265284
Kg
Kg Kg
Kg
Kg Kg Kg
Kg Kg Kg
Kg Kg
Kg
N°272013
MT1440
36km/h Maxi
(10m/s)
kg
kg
kg kg
5% maxi
15% maxi
10% maxi
5% maxi
45° Maxi
1,5km/h Maxi (0,4m/s)
3000KG
MAXI
3m Mini
1.40m Maxi
0.3m Maxi
