3 - CONTROL AND SIGNAL LIGHTS PANEL
CONTROL INSTRUMENTS

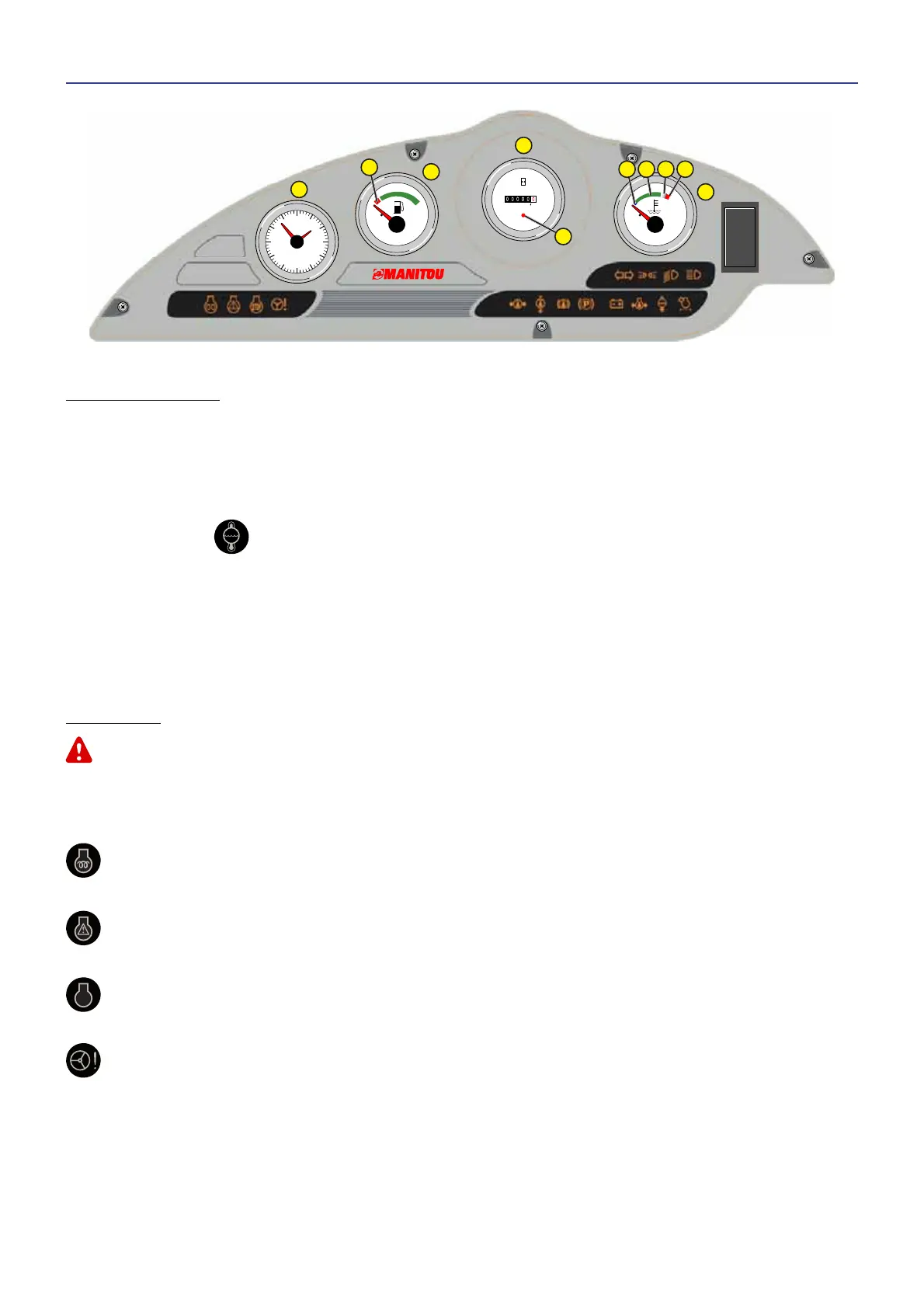

A - I.C. ENGINE WATER TEMPERATURE
Temperature zone:
A1 - Blue zone (0° - 50°) Use the lift truck with moderation, wait for temperature to increase before normal operation.
A2 - Green zone (50° - 100°) Use lift truck normally.
A3 - White/red zone (100° - 105°) Use lift truck with moderation, monitor the temperature.
A4 - Red zone (105° - 120°) Stop the lift truck, look for the cause of overheating.
NOTE: Red indicator light
comes on between zone A3 and A4.
B - HOUR METER
Le témoin rouge B1 clignote indiquant le fonctionnement du moteur thermique et l’horamètre comptabilise les heures d’utilisation.
C - FUEL LEVEL
Red zone C1 indicates that you are using the reserve supply and that time of use is limited.
D - CLOCK
SIGNAL LIGHTS
A permanently lit or flashing warning lamp, with the engine running, is the sign of an operating fault. The lighting of some lamps may be accompanied by an
audible signal. Do not ignore this warning, consult your dealer without delay.
If one of the warning lamps comes on while the lift truck is in motion, stop the lift truck under the safest possible conditions.
When activating the electrical system of the lift truck, all the red lamps and the panel’s buzzer must light to indicate their good working
order. If one of the red lamps or the buzzer does not function, carry out the necessary repairs.
NOT USED
NOT USED
STOP
NOT USED
NOT USED
39
6
12
h
B
A
C
D
A1 A2 A3 A4
C1
B1
