2-38

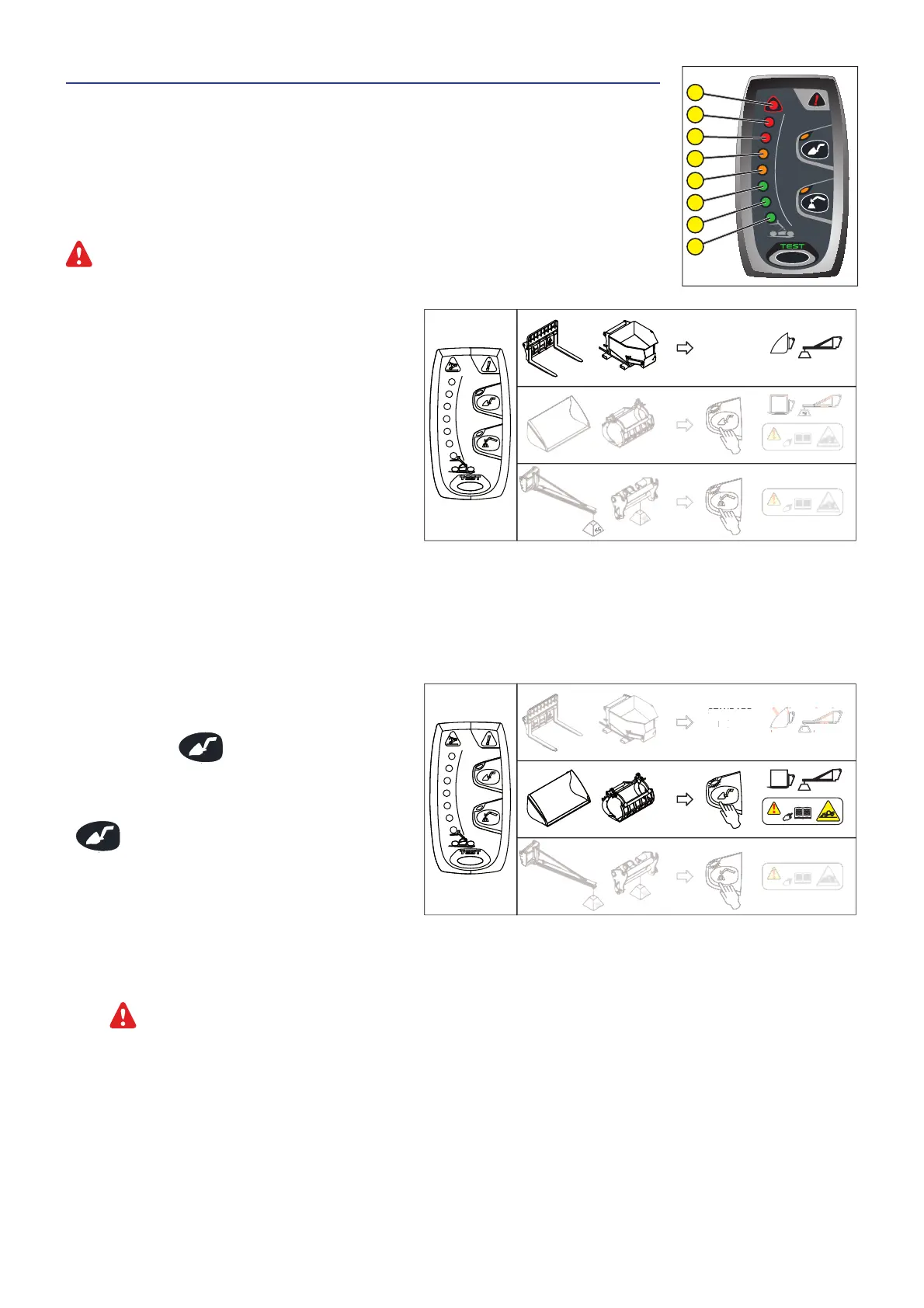

4 - LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE
This device warns the operator of the lift truck’s longitudinal stability limits. However, lateral stability
can reduce the load chart in the upper part, and this reduction is not detected by the device.
According to the type of work required, the longitudinal stability limiter and warning device allows the
operator to operate the lift truck in complete safety.
UPDATED: In order to gain maximum advantage from the longitudinal stability limiter and warning
device of your lift truck, contact your dealer to receive the most recent available version of
the software.
The operator must respect the lift truck’s load chart, and the operating mode according to the attachment.
A - “HANDLING” MODE
Use on forks.
- By default, the device is in “HANDLING” MODE when the
lift truck is started-up, except if the “SUSPENDED LOAD”
MODE has been selected before shutting-down the
engine.
A1 - A2 - A3: There is a significant reserve of
longitudinal stability.
A4 - A5: The lift truck is nearing the limit of
longitudinal stability. The alarm sounds
simultaneously with a very slow
intermittent sound. Move with care.
A6: The lift truck is near at the limit of longitudinal
stability. The alarm sounds with a slow
intermittent sound. Move with care.
A7: The lift truck is very near at the limit of
longitudinal stability. The alarm sounds with a
fast intermittent sound. Move with extreme care.
A8: The lift truck is at the authorized limit of longitudinal stability. The alarm sounds with a very fast intermittent sound. All
“AGGRAVATING” hydraulic movements are cut-off. The hydraulic movement may automatically slow before cut-off. Only make
de-aggravating hydraulic movements in the following order: retract and raise the jib.
NOTE: When the jib is retracted, the function for cutting-off “AGGRAVATING” hydraulic movements is disconnected.
B - “BUCKET” MODE
Use with a bucket.
- Place the lift truck in the transport position.
- Press the button
for 2 seconds, the “BUCKET”
MODE is confirmed by an audible beep and the lighting
of the lamp.
- Return to “HANDLING” MODE by pressing the button
, or loss of driver presence for a few seconds, or
shutting down the engine.
A1 - A2 - A3: There is a significant reserve of
longitudinal stability.
A4 - A5: The lift truck is approaching the limit of
longitudinal stability, move with care.
A6: The lift truck is approaching the limit of longitudinal stability. An audible beep is sounded. Move with care.
A7: The lift truck is very close to the limit of longitudinal stability. Move with extreme care.
A8: The lift truck is at the authorised limit of longitudinal stability.
All hydraulic movements remain available, ONLY PERFORM DE-AGGRAVATING HYDRAULIC MOVEMENTS IN THE FOLLOWING ORDER: RETRACT AND
RAISE THE JIB.
A8
A7
A6
A5
A4
A3
A2
A1
N°297733
STANDARD
MODE
kg
XX
kg
XX
Kg
N°297733
STANDARD
MODE
kg
XX
kg
XX
TANDARD
M
DE
