Manitowoc 2250 Service Maintenance Manual

Reference Only
Manitowoc Published 07-19-16, Control # 249-01 5-17
2250 SERVICE/MAINTENANCE MANUAL HOISTS
5

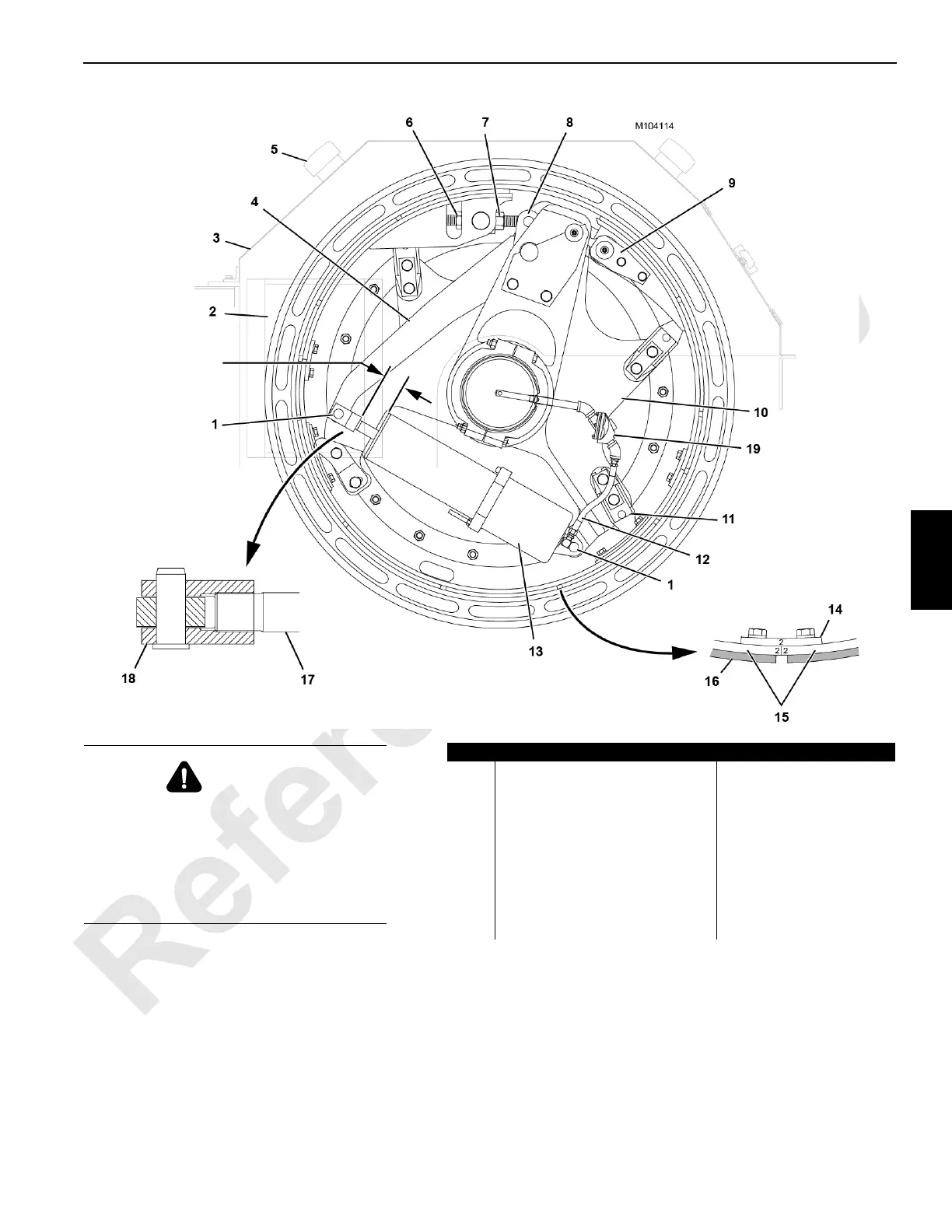

FIGURE 5-14
WARNING
Falling Load Hazard!
The cylinder rod can back out of the rod end
during operation, and the load could drop,
resulting in death or serious injury.
Apply Loctite #243 to the threads of the rod
end before assembly.
Item Description Item Description
1 Rod End Pin (qty 2) 11 Band Guide (qty 4)
2 Access Hole 12 Air Line
3 Guard 13 Air Cylinder
4 Clutch Lever 14 Connecting Plate
5 Brake Band Support (qty 2) 15 Band Section (qty 2)
6 Jam Nut 16 Lining
7 Adjusting Nut 17 Cylinder Rod
8 Live End 18 Rod End
9 Dead End 19 Quick-Release Valve
10 Clutch Spider
View A View B
38 to 54 mm
(1-1/2 to 2-1/8 in)
