Rigging work
12.8 Outrigger operation
12 - 58 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
12.8.9 Levelling the truck crane on outriggers horizontally
You must level the truck crane before crane operation horizontally and
possibly correct its horizontal alignment during crane operation.

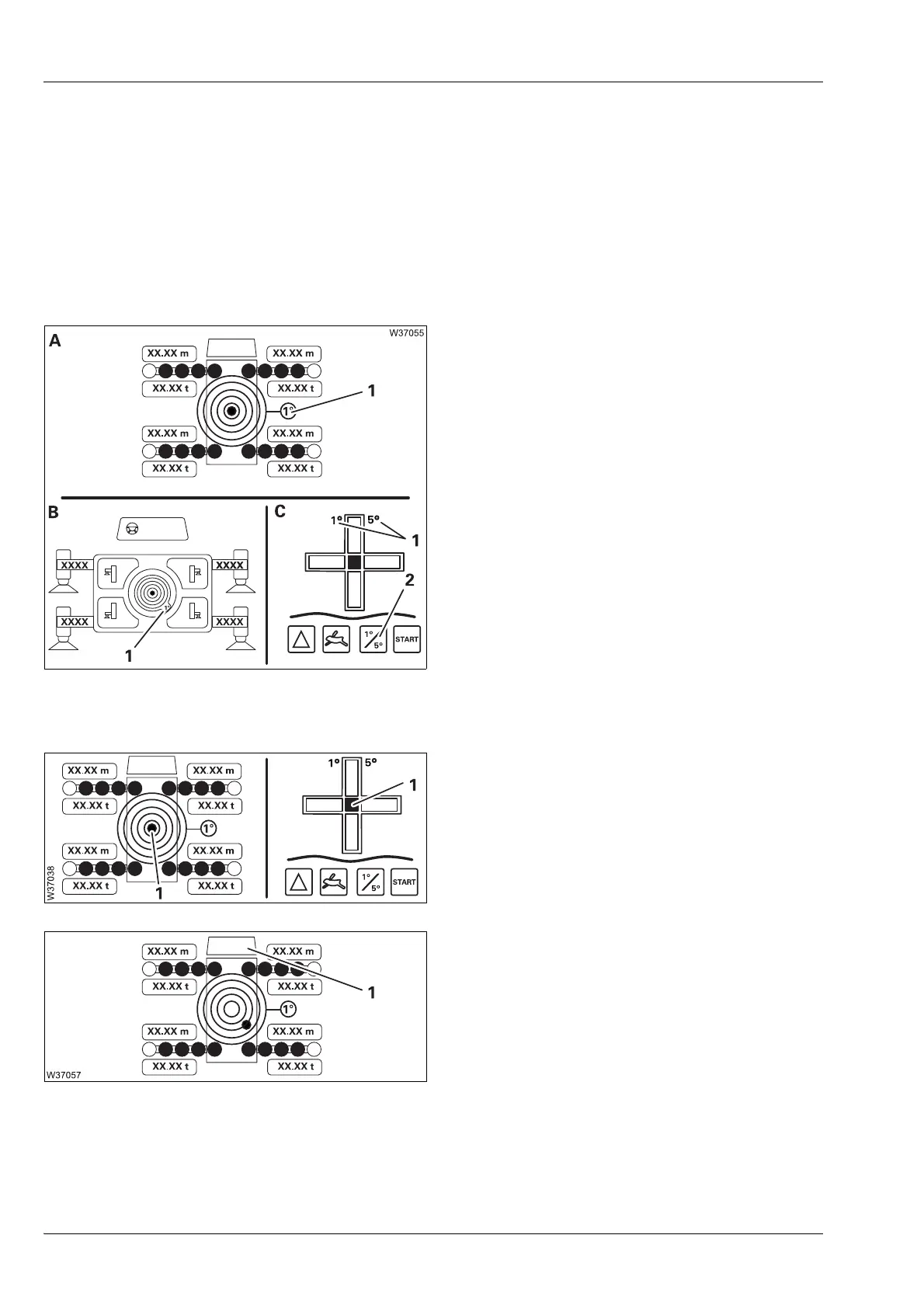

Inclination
indicators
After switching on the ignition, various inclination indicators display the
current alignment.
Switching between measuring ranges
You can change the measuring range
between 1° and 5°.
• Press the button (2) once.
The current measuring range (1) is
displayed.
The measuring range is automatically
switched in the
Outrigger menu and the
Monitoring menu.
Read the display
Only the lamp (1) at the centre is on if the truck
crane is level.
The other lamps show the sides of the truck
crane which are higher.
–
RCL / CCS display
The assignment to the carrier is given by the
directional indicator (1).
In this example, the carrier would be stand-
ing higher to the rear on the right hand side.
A In the
Monitoring menu
B In the Outrigger menu
C On the
Outrigger control units
