Driving modes and rigging for on-road driving
6.4 Rigging the main boom
Operating manual 3 302 709 en 6 - 35
GMK5150L
12.01.2018

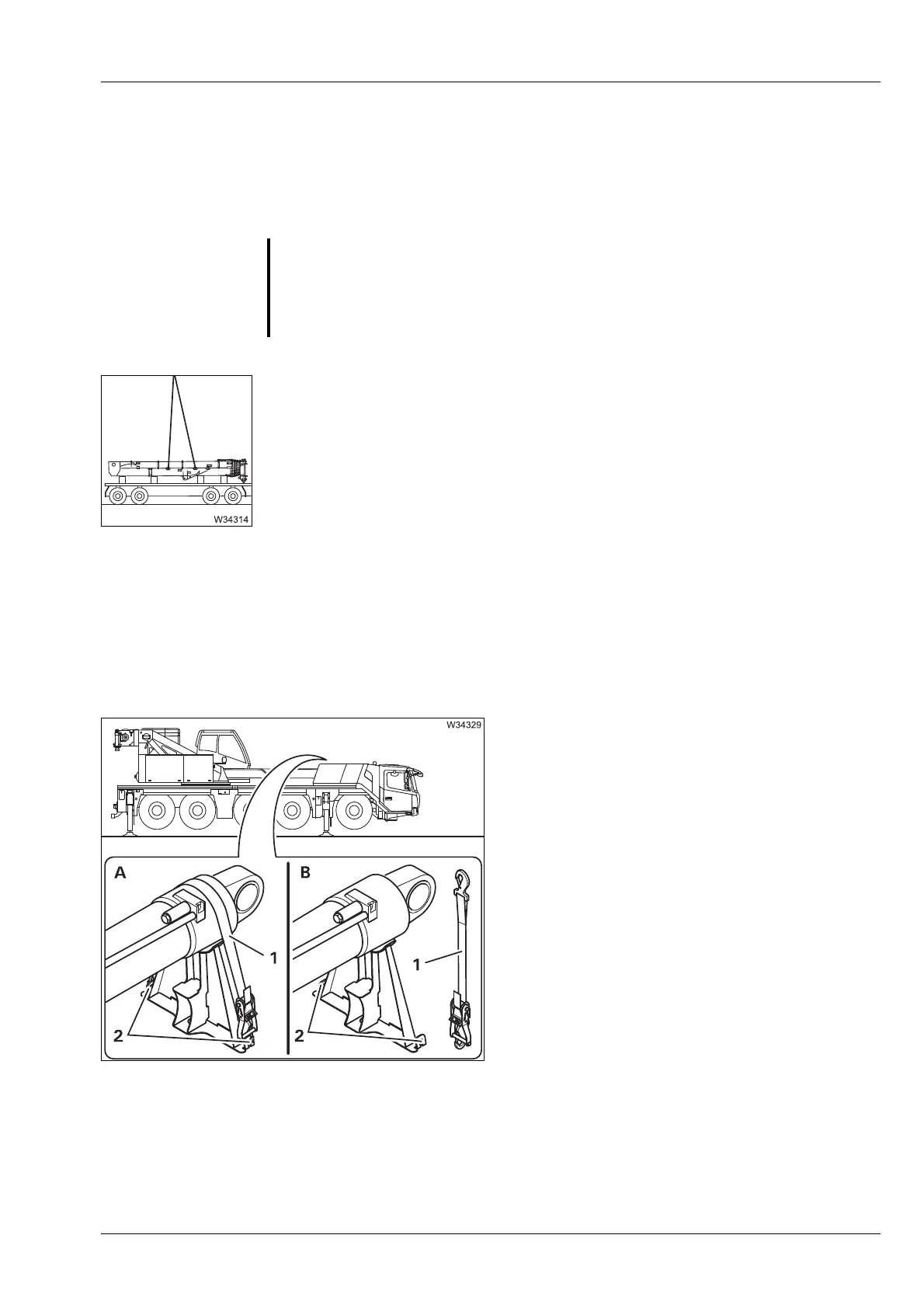

6.4.9 Transporting the main boom
Transport the main boom only on a separate vehicle which is of sufficient
size and has sufficient lifting capacity;
à p. 1 - 10.
• Always place the main boom onto a suitable packing!
• Secure the main boom against slipping using the holding ropes.
• Load the main boom in such a way that other road users are not put at
risk.
• Load the transport vehicle in such a way that the weight is evenly
distributed.
• Secure the connection lines so that they will not slip and be damaged
during transport.
6.4.10 Securing/releasing the derricking cylinder
(A) – Securing
• Place the tightening belt (1) over the
derricking cylinder and fasten it onto the
holders (2).
• Tighten the tightening belt so that the der-
ricking cylinder is secure within the support.
(B) – Releasing
• Slacken the tightening belt (1) and remove it
from the holders (2).
• Stow the tightening belt away.
S
Risk of damage to the main boom
Always place the main boom onto a suitable packing. If you lay the main
boom on its side, add-on parts will be damaged.
