Rigging work
12.8 Outrigger operation
12 - 58 3 302 709 en Operating manual
GMK5150L
12.01.2018
From the
crane cab

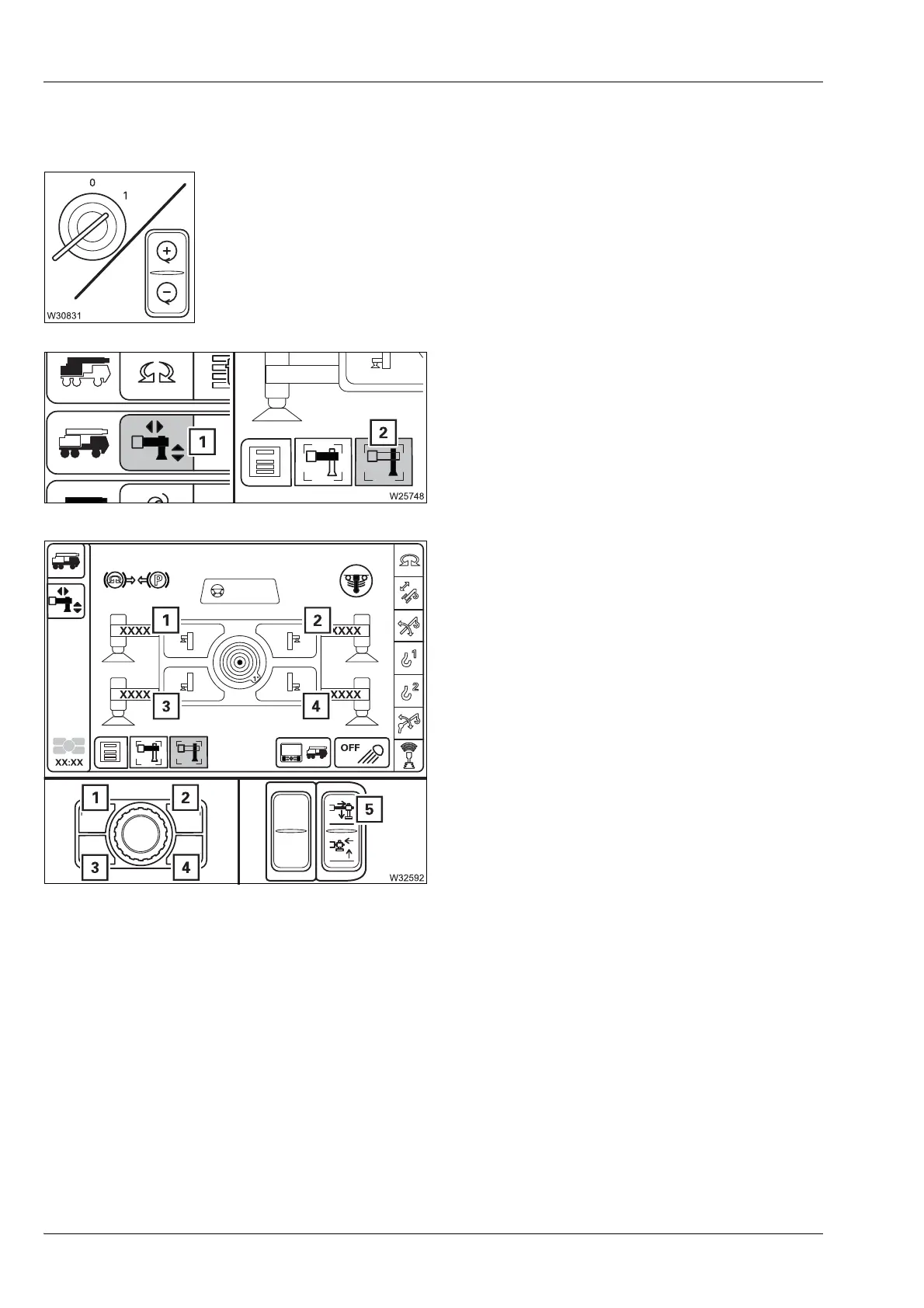

The following operating elements are found in the Outriggermenu.
Starting the engine
• Start the engine from the crane cab; à p. 10 - 3.
• Switch off the slewing gear.
Menu, open
• Open the Outrigger menu (1).
• Select and confirm the symbol (2) –
Move outrigger cylinders.
Extend
• Press the button for the desired outrigger
cylinder.
• Press the button (5) in at the top – the
selected supporting cylinder extends.
1 Front left
2 Front right
3 Rear left
4 Rear right
