BOOM TMS800E SERVICE MANUAL
AUXILIARY BOOM NOSE
Description

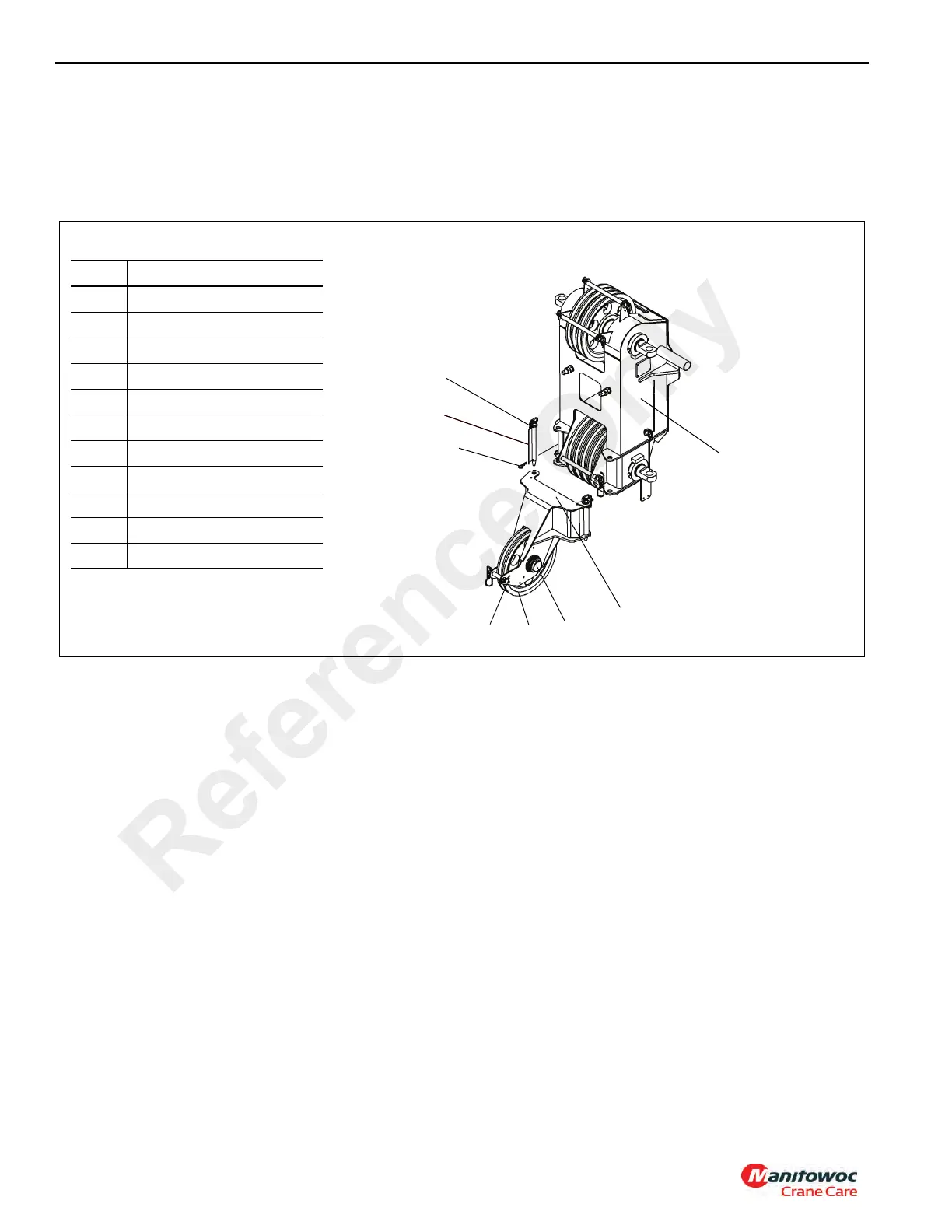

The auxiliary boom nose (rooster sheave) (see Figure 4-3) is
used on the boom to simplify single part and maximum part
cable usage. The rooster sheave is installed on the main
boom nose and is secured by attach pins that pass through
the rooster sheave and the main boom nose.
6462-1
Item Description
1 Auxiliary Boom Nose
2 Sheave Assembly
3End Cap
4Screw
5 Hitch Pin
6 Hitch Pin Clip
7 Lock Pin
8 Chain
9 Cotter Pin
10 S-Hook
11 Main Boom Nose
1
2
3, 4
5
6
7
8, 9, 10
11
FIGURE 4-3
