Part Number 000007924 5/14 27
Section 3
Operation
Control Panel Features
The Indigo™ control panel offers a series of pressure
sensitive buttons and a four-line interactive display
panel. The front door must be opened to access the
Power and Clean buttons.
BUTTONS
Power Button: Powers the ice machine when in the On/
Off Mode. The ice machine can also be programmed to
automatically power on and off in two Energy Saver
modes.
Cleaning Button: Initiates a cleaning cycle. Refer to the
Maintenance section for details.
Menu Button: Moves the display from the Home
Screen, where ice machine status, alerts and messages
are viewed, to the Main Menu, where machine
information and its event log can be accessed, machine
and Energy Saver settings can be adjusted, and service
issues can be addressed.
Left and Right Arrows: The Left arrow moves the
display to the previous screen, allowing the user to “back
out” of programming. Both the Left and Right arrows will
move the cursor (underline) within a line of settings.
NOTE: The Right arrow can also be used on many
screens interchangeably with the Checkmark to make a
selection.
Up and Down Arrows: Move the highlight [brackets] up
one line or down one line.
Checkmark: Makes a selection and/or moves to the
next screen (or line).
DISPLAY PANEL
The LCD display panel is 16 characters wide and four
lines deep. During ice machine operation and cleaning
cycles, the Home screen’s top three lines provide
valuable status information and the fourth line shows
alerts and messages. In programming, four lines of the
current screen are displayed and highlights, arrows,
cursor and selections inform the user of available
actions.

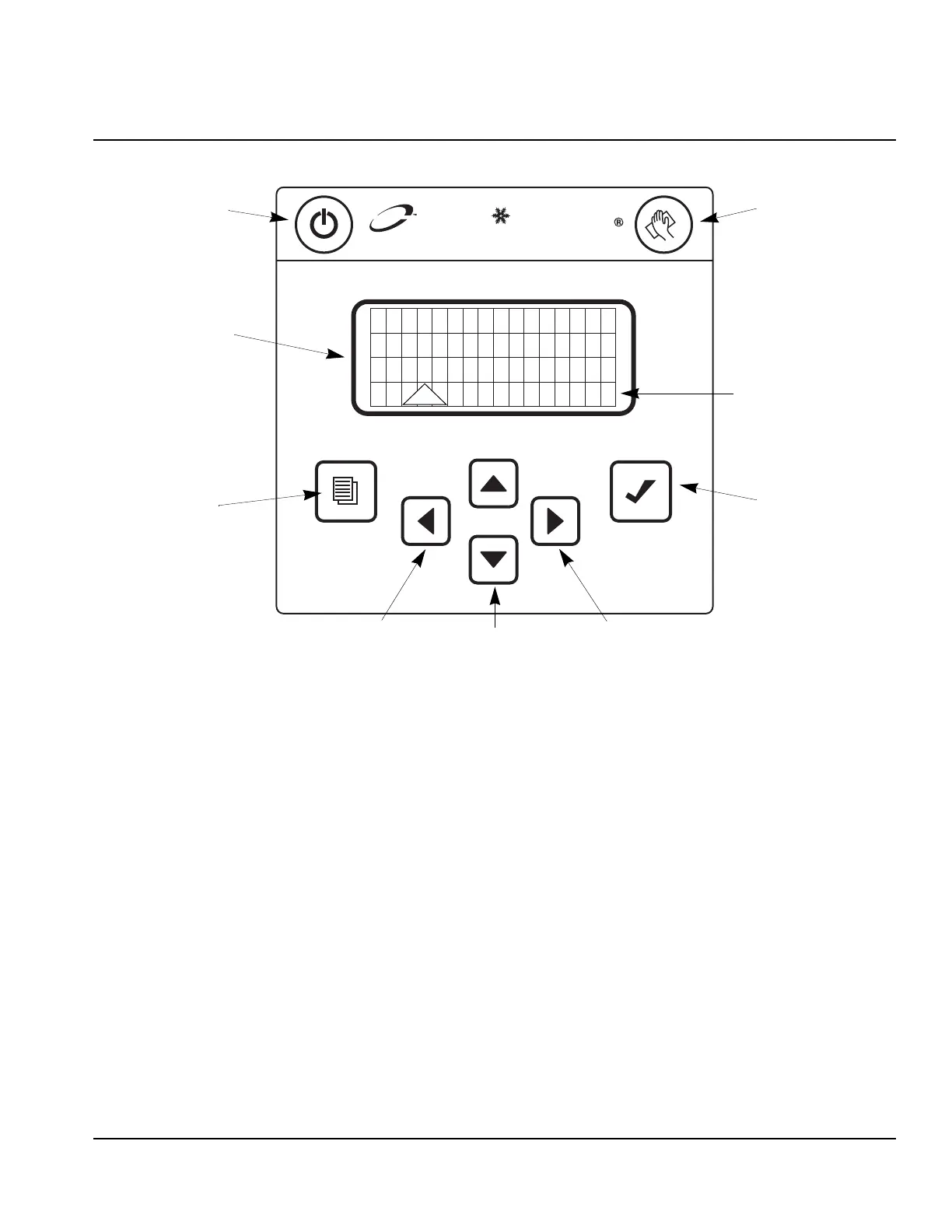

Off
On / Off Mode
[ ]
!
Manitowoc
Menu
Button
Power Button
Up and Down Arrows
Right
Arrow
Checkmark
LCD Display
Left
Arrow
Cleaning Button
Alert/Message Line
}
Status
Lines
