Manitowoc IDF2100C Technician's Handbook

Part Number: 000015431 Rev01 5/19 49
Dual Evaporator Ice Machines
A
B
C
D
E
F

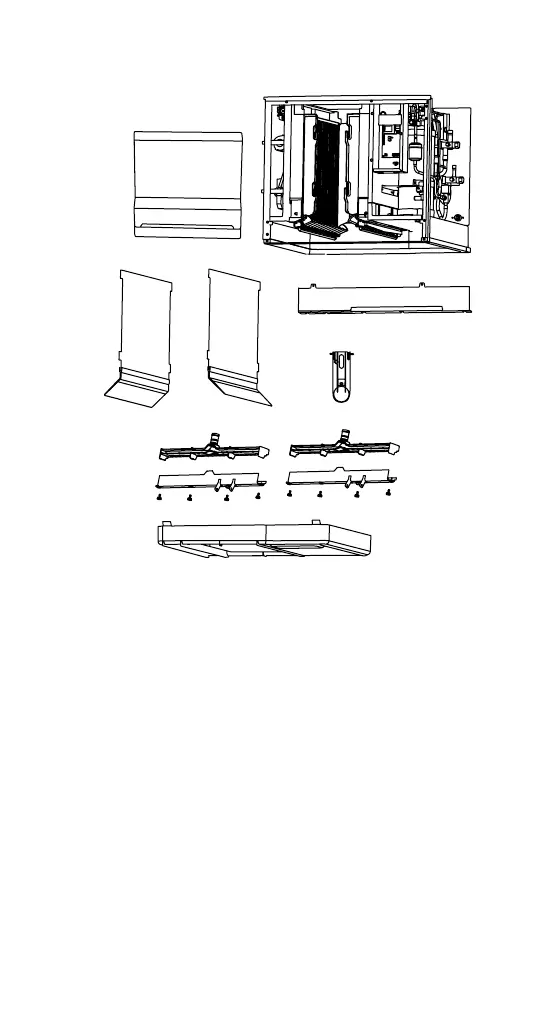

A. Remove front splash shield
• Grasp the top of the splash shield.
• Lift up and then out.
B. Remove evaporator splash shields
• Grasp the top center of splash shields.
• Lift up and then out.
C. Remove the water trough shield
• Grasp the water trough shield in the center and the
left end.
• Flex the water trough shield in the center and pull the
left end forward until clear of the side wall. Repeat for
the right end.
• Pull water trough shield forward to remove.
