2. Extremely Thin at Evaporator Outlet
There is no ice, or a considerable lack of ice formation, at
the outlet of the evaporator.
Examples: No ice at all on the outlet half of the
evaporator, but ice forms on the inlet half of the
evaporator. Or, the ice at the outlet of the evaporator
reaches 1/8 in. to initiate a harvest, but the inlet of the
evaporator already has 1/2 in. to 1 in. of ice formation.
3. Extremely Thin at Evaporator Inlet
There is no ice, or a considerable lack of ice formation at
the inlet of the evaporator. Examples: The ice at the outlet
of the evaporator reaches 1/8 in. to initiate a harvest,
but there is no ice formation at all on the inlet of the
evaporator.
4. No Ice Formation
The ice machine operates for an extended period, but
there is no ice formation at all on the evaporator.
Evaporator Tubing Routing
Routing of the tubing on the back of the evaporator
determines the ice fill pattern failure mode.
One Evaporator, One TXV models
The evaporator outlet tubing does not exit directly at the
top of the evaporator, but exits several inches below the
top of the evaporator. Extremely Thin at the Evaporator
Outlet will first be visible several inches below the top
of the evaporator. Extremely Thin at Evaporator Inlet will
first be visible at the bottom of the evaporator.

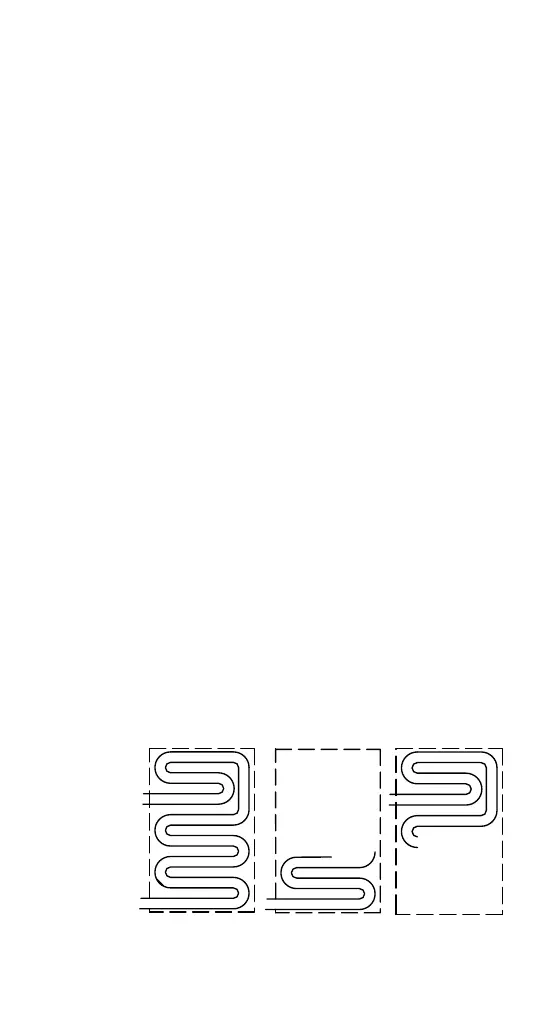

Outlet
Inlet
Thin at Inlet
Thin at Outlet
ICE
ICE
