206 Part Number STH025 11/16
Self-Contained Recovery/Evacuation
1. Press the power button and cycle the ice machine
off.
2. Install manifold gauges, scale and recovery unit or
two-stage vacuum pump and open high and low
side on manifold gauges.
OPEN
RECOVERY UNIT
OPEN
E
HIGH SIDE
ACCESS
VALVE
OPEN

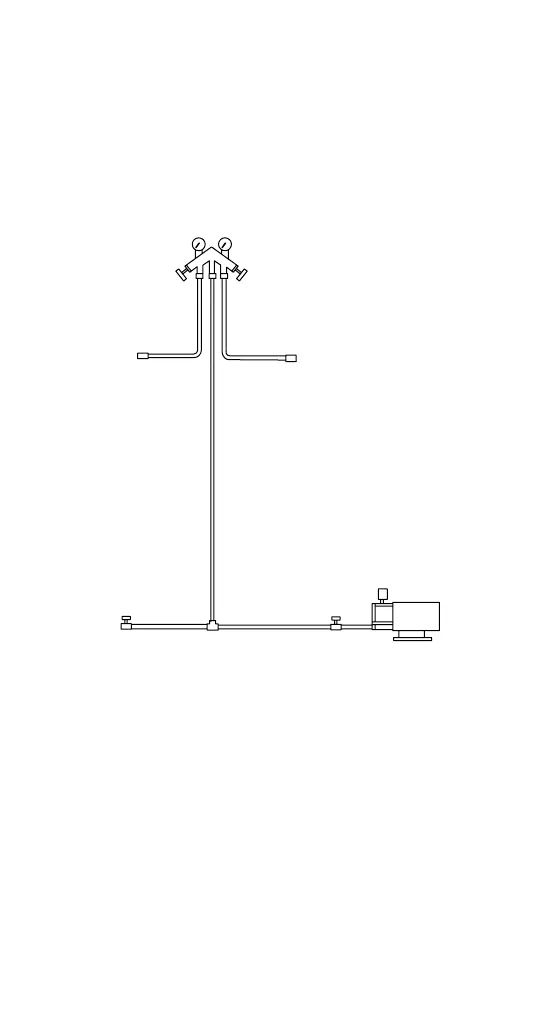

RECOVERY/EVACUATION CONNECTIONS
3. Perform recovery or evacuation:
A. Recovery: Operate the recovery unit as directed
by the manufacturer’s instructions.
B. Evacuation prior to recharging: Pull the system
down to 500 microns. Then, allow the pump
to run for an additional half hour. Turn off the
pump and perform a standing vacuum leak
check.
4. Follow the Charging Procedures.
To Next Page
