ELECTRICAL SYSTEM MLC80A-1/MLC90A-1/MLC100A-1/MLC100-1 SERVICE/MAINTENANCE MANUAL
3-18
Published 10-09-2020, Control # 259-06
SOLENOID VALVE IDENTIFICATION
Each hydraulic valve solenoid is assigned a solenoid number
used in Manitowoc Cranes training classes (see Table 3-6
).
The pin number corresponds to the control module
connector pin number, as represented in the electrical
schematics.

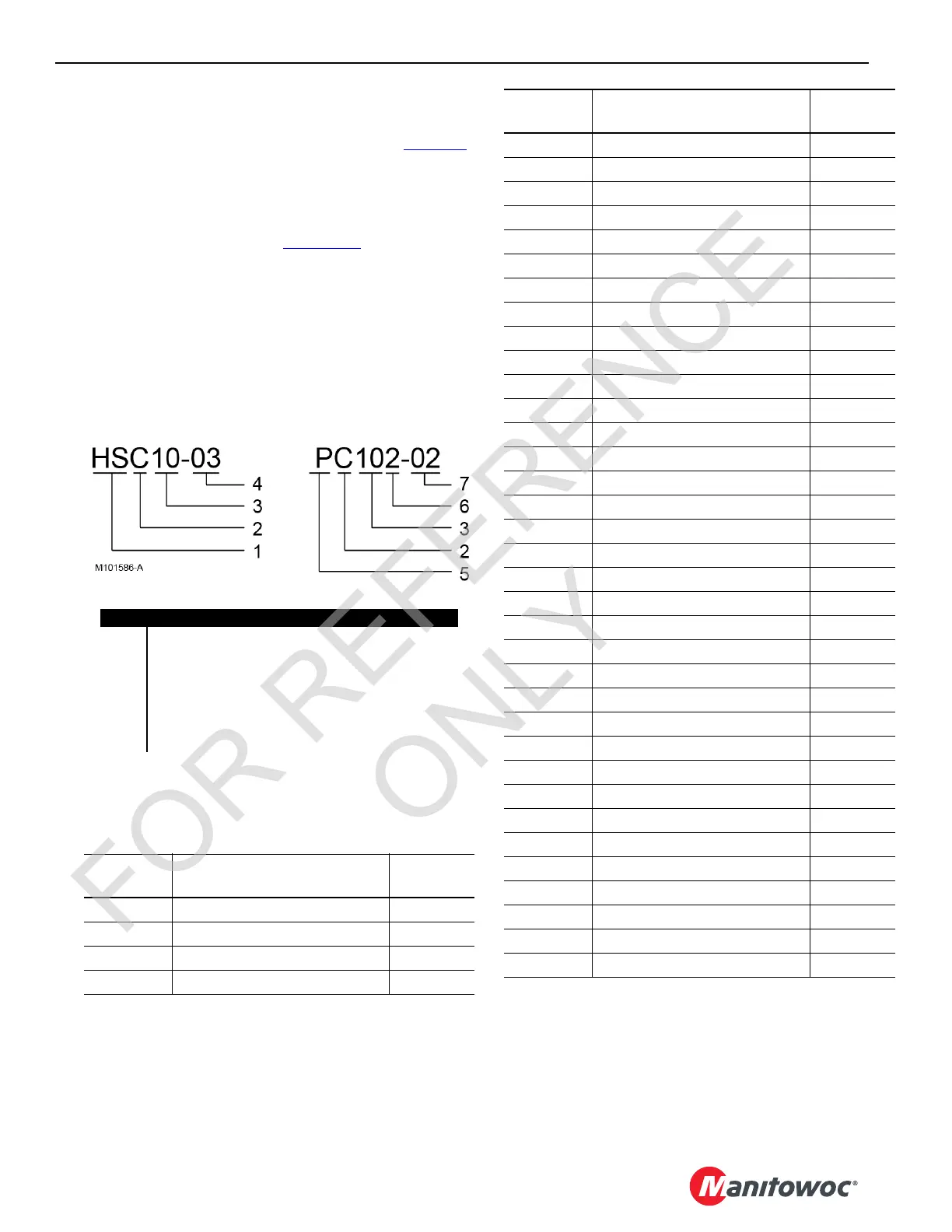

The control module information contained in each solenoid
or pin number is illustrated in Figure 3-11
. In this example,
for the swing brake release solenoid, the following
information is contained:
• Control module resides on CAN Bus C
• Control module index is 22
• Control module digital output is ODH3A-03
• Control module output signal is at pin 2 of connector
KS-2
Table 3-6. Hydraulic Solenoid Identification
Solenoid
Number
Description
Pin
Number
HSC10-03 Swing Brake Release PC102-02
HSC10-04 Travel Brake Release PC102-22
HSC10-05 Drum 1 Brake Release PC102-05
HSC10-06 Drum 2 Brake Release PC102-15
FIGURE 3-11
Item Description
1 Hydraulic Solenoid Reference Designator
2CAN Bus
3 Control Module Index
4 Digital Output Number
5 Connector Reference Designator
6 Connector Number
7 Pin Number
HSC10-07 Drum 3 Brake Release PC102-14
HSC10-08 Drum 4 Brake Release PC102-04
HSC10-09 Drum 4 Pawl In PC102-03
HSC10-11 Drum 4 Pawl Out PC102-24
HSC10-12 Travel High Speed PC102-25
HSC10-13 Counterweight Pin Pullers PC102-06
HSC10-23 Left Travel Side A PC101-01
HSC10-24 Left Travel Side B PC102-12
HSC10-25 Right Travel Side A PC101-15
HSC10-26 Right Travel Side B PC101-42
HSC10-27 Drum 4 Side A PC101-28
HSC10-28 Drum 4 Side B PC101-02
HSC11-04 Drum 1 and 2 Free fall Enable PC112-22
HSC11-10 Crawler Extend PC112-23
HSC11-11 Crawler Retract PC112-24
HSC11-12 Gantry Extend PC112-25
HSC11-13 Gantry Retract PC112-06
HSC11-23 Swing Pump A PC111-01
HSC11-24 Swing Pump B PC112-12
HSC11-25 Pump 1 PC111-15
HSC11-26 Pump 2 PC111-42
HSC11-27 Drum 1 Free Fall Proportion Valve PC111-28
HSC11-28 Drum 2 Free Fall Proportion Valve PC111-02
HSC30-14 Drum 1 Primary A PC302-18
HSC30-15 Drum 2 Primary A PC302-10
HSC30-16 Drum 2 Primary B PC302-29
HSC30-17 Drum 1 Primary B PC302-19
HSC30-18 Drum 1 Secondary Side A PC301-05
HSC30-19 Drum 1 Secondary Side B PC301-06
HSC30-20 Drum 2 Secondary Side A PC301-07
HSC30-21 Drum 2 Secondary Side B PC301-08
HSC31-18 Drum 3 Side A PC311-5
HSC31-19 Drum 3 Side B PC311-6
HSC31-17 Hydraulic Fan Control PC312-19
HSC31-21 Accessory Enable PC311-08
Solenoid
Number
Description
Pin
Number
FOR REFERENCE
ONLY
