ELECTRONIC CONTROL BOARD

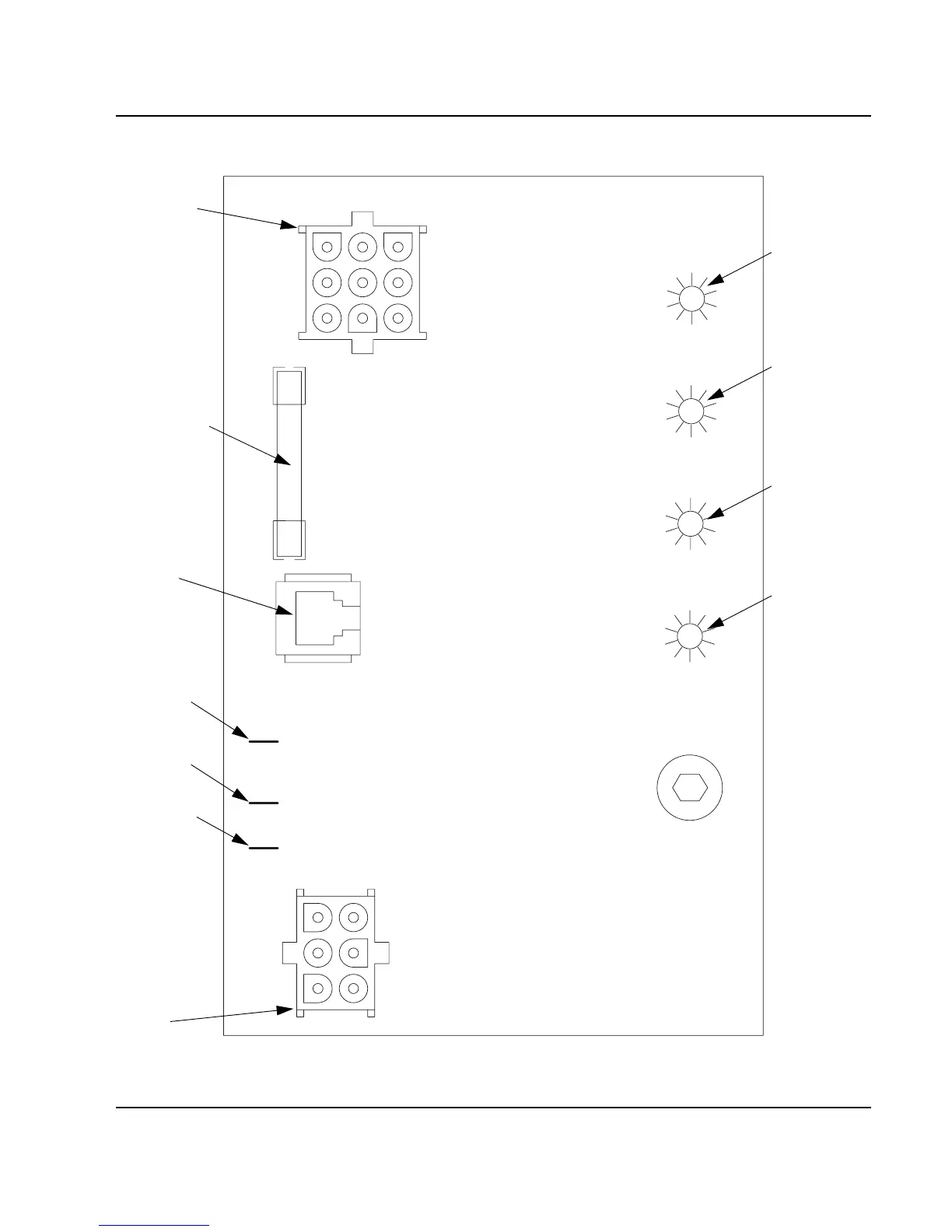

Figure 6-19. Control Board
SV1588
AC LINE VOLTAGE
ELECTRICAL
PLUG (NUMBERS
MARKED ON
WIRES)
MAIN FUSE (7A)
AUTOMATIC
CLEANING
SYSTEM (AuCS)
ACCESSORY PLUG
ICE THICKNESS
PROBE (3/16''
CONNECTION)
WATER LEVEL
PROBE
JUMPER USED
ON Q1300/Q1600/
Q1800 ONLY
DC LOW VOLTAGE
ELECTRICAL PLUG
(NUMBERS
MARKED ON
WIRES)
CLEAN LIGHT
YELLOW
WATER LEVEL
PROBE LIGHT
GREEN
BIN SWITCH
LIGHT GREEN
HARVEST LIGHT/
SAFETY LIMIT
CODE LIGHT
RED
1C
1F
1G
67
62
63
68
65
