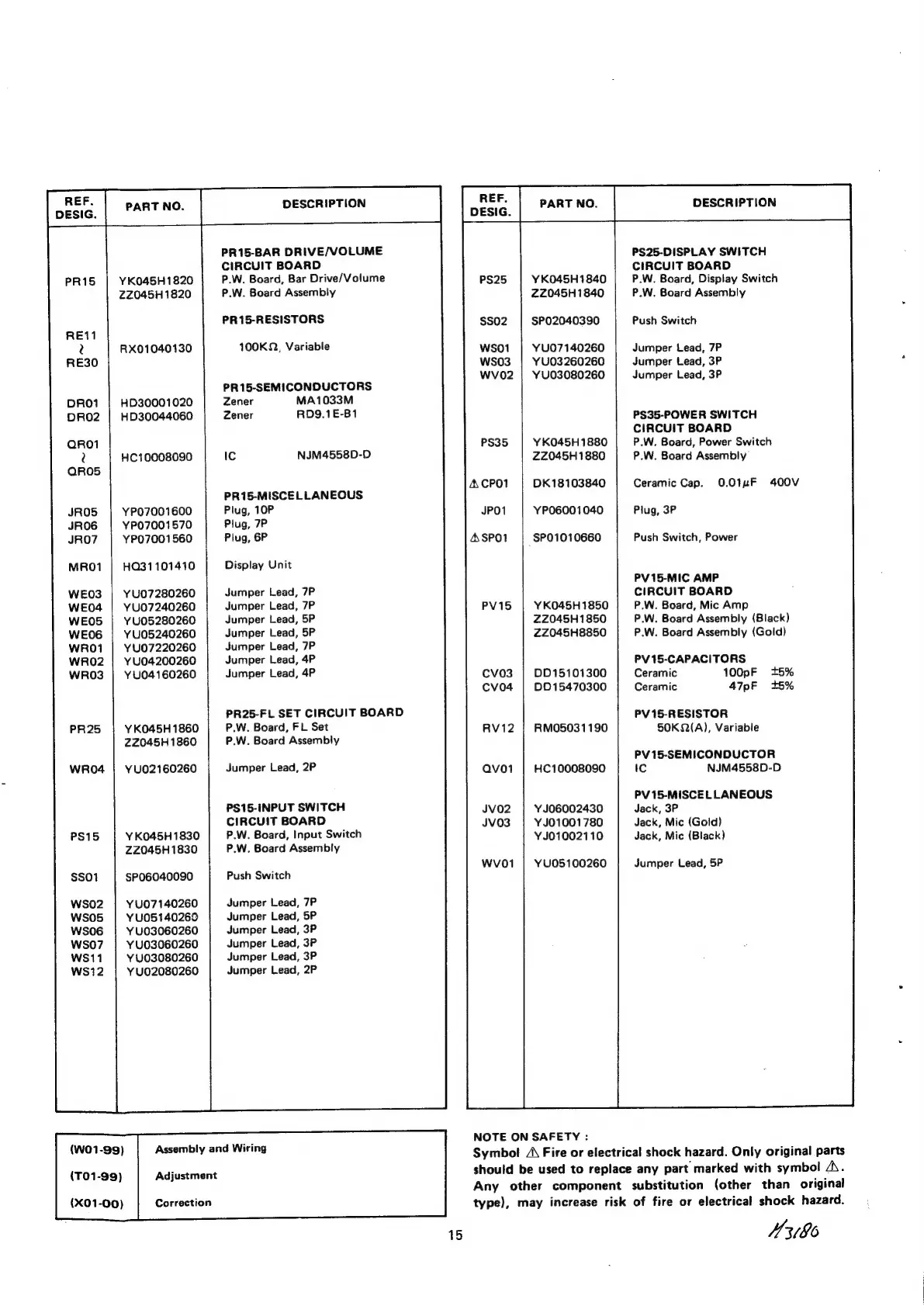

Marantz 74 EQ515 - Page 21

DESCRIPTION
PR15-BAR DRIVE/VOLUME
CIRCUIT BOARD
P.W. Board, Bar Drive/Volume
P.W. Board Assembly
ieaeed PART NO.
YK045H1820
2Z045H1820
PR15-RESISTORS
100KQ, Variable
RX01040130
PR15-SEMICONDUCTORS
Zener MA1033M
Zener RD9.1E-B1
HD30001020
HD30044060
NJM4558D-D
Ic
HC10008090
PR15-MISCELLANEOUS
Plug, 10P
Plug, 7P
Plug, 6P
YP07001600
YP07001570
YP07001560
HQ31101410 Display Unit
YU07280260
YU07240260
YU05280260
YU05240260
YU07220260
YU04200260
YU04160260
Jumper Lead, 7P
Jumper Lead, 7P
Jumper Lead, 5P
Jumper Lead, 5P
Jumper Lead, 7P
Jumper Lead, 4P
Jumper Lead, 4P
PR25-FL SET CIRCUIT BOARD
P.W. Board, FL Set
P.W. Board Assembly
YK045H1860
2Z045H 1860
YU02160260 Jumper Lead, 2P
PS15-INPUT SWITCH
CIRCUIT BOARD
P.W. Board, Input Switch
P.W. Board Assembly
Y K045H1830
2Z045H1830
Push Switch
SP06040090
YU07140260
YU05140269
YU03060260
YU03060260
YU03080260
YU02080260
Jumper Lead, 7P
Jumper Lead, 5P
Jumper Lead, 3P
Jumper Lead, 3P
Jumper Lead, 3P
Jumper Lead, 2P
(W01-99) Assembly and Wiring
(T01-99) Adjustment
(X01-00)
Correction
Fag PART NO. DESCRIPTION
PS25-DISPLAY SWITCH
CIRCUIT BOARD
P.W. Board, Display Switch
P.W. Board Assembly
YK045H1840
22Z045H1840
SP02040390 Push Switch
YU07140260 Jumper Lead, 7P
YU03260260 Jumper Lead, 3P
WV02 | YU03080260 Jumper Lead, 3P
PS35-POWER SWITCH
CIRCUIT BOARD
P.W. Board, Power Switch
P.W. Board Assembly’
PS35 YK045H1880
22Z045H 1880
ACPO1 DK18103840 Ceramic Cap. 0.01nF 400V
YP06001040 Plug, 3P
ASPO1
SP01010660 Push Switch, Power
PV15-MIC AMP
CIRCUIT BOARD
PV15 YK045H1850 P.W. Board, Mic Amp
2ZZ045H1850 P.W. Board Assembly (Black)
Z2Z045H8850 P.W. Board Assembly (Gold)
PV15-CAPACITORS
Ceramic 100pF +5%
Ceramic 47pF +5%
CcVv03
cv04
DD15101300
DD15470300
PV15-RESISTOR
RV12 | RMO05031190 50KQ(A), Variable
PV15-SEMICONDUCTOR
Ic NJM4558D-D
HC10008090
PV 15-MISCELLANEOUS
Jack, 3P
Jack, Mic (Gold)
Jack, Mic (Black)
Jv02
JV03
YJ06002430
YJ01001780
YJ01002110
YU05100260 Jumper Lead, 5P
NOTE ON SAFETY :
Symbol A\ Fire or electrical shock hazard. Only original parts
should be used to replace any part marked with symbol A.
Any other component substitution (other than original
type), may increase risk of fire or electrical shock hazard.
13186
