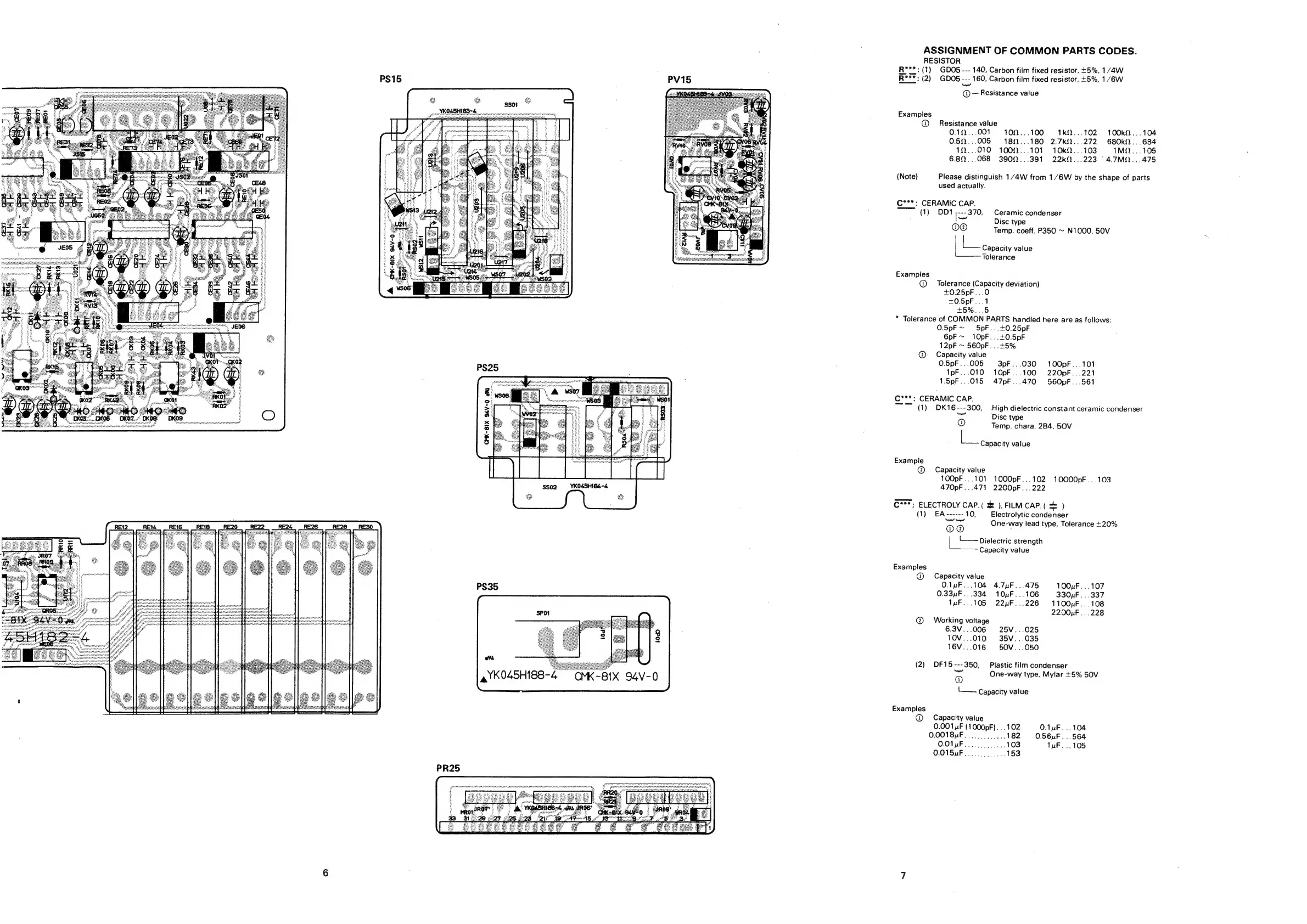

Marantz 74 EQ515 - Page 6

PS15
PR25
PS35
CMK-81X 94V-0
PV15
ASSIGNMENT OF COMMON PARTS CODES.
RESISTOR
R***:(1) GDO5 --- 140, Carbon film fixed resistor, +5%, 1/4W
R***: (2) GD05 --- 160, Carbon film fixed resistor, +5%, 1/6W
@ — Resistance value
Examples
@® Resistance value
0.19. ..001 100...100 1kM...102 100k9....104
0.52. ,.005 180...180 2.7kN...272 680k0...684
10...010 1000...101 10k9...103 1MQ....105
6.80...068 3909...391 22k0...223 '4.7MQ...475
(Note) Please distinguish 1/4W from 1/6W by the shape of parts
used actually.
C***: CERAMIC CAP.
“——~ (1) DD1.---370, Ceramic condenser
I~ Disc type
® Temp. coeff. P350 ~ N1000, 50V
[ee
Capacity value
Tolerance
Examples
@® Tolerance (Capacity deviation)
+0.25pF...0
+0.5pF...1
+5%...5
* Tolerance of COMMON PARTS handled here are as follows:
O.5pF~ SpF...+0.25pF
6pF~ 10pF...+0.5pF
12pF ~ 560pF ...+5%
@ _ Capacity value
O.5pF...005 3pF...030 100pF...101
1pF...010 10pF...100 220pF...221
1.5pF...015 47pF...470 560pF...561
C***: CERAMIC CAP.
™™~ (1) DK16---300, High dielectric constant ceramic condenser
og Disc type
® Temp. chara. 2B4, 50V
ieee value
Example
@ Capacity value
100pF...101 1000pF...102 10000pF...103
470pF ...471 2200pF...222
C***; ELECTROLY CAP.( 2 ), FILM CAP.( 2 )
(1) EA------ 10, Electrolytic condenser
ming One-way lead type, Tolerance +20%
U— Dielectric strength
Capacity value
Examples
@ Capacity value
O.1uF...104 4.7uF...475 100uF...107
O0.33uF...334 10uF...106 330uF...337
TwF...105 22uF...226 1100uF...108
2200uF...228
@ Working voltage
6.3V...006 25V...025
10V...010 35V...035
16V...016 50V...050
(2) DOF15---350, Plastic film condenser
@ One-way type, Mylar +5% 50V
U___ capacity value
Examples
@® Capacity value
0.001 uF (1000pF). .. 102 O.1uF...104
0.0018uF... 182 O.56uF...564
O.0uF. 103 1h 108
OiOTS HR cee occa 153
