10. Engine Maintenance
Flame Arrestor
Clean the flame arrestor regularly.
1. Remove fastener from flame arrestor.
2. Clean with a suitable solvent and blow dry.
3. Reverse steps to assemble.
G-Force Fuel System
1. Position catch basin under filter.
2. Remove cooling cover.
3. Unscrew canister bowl.
4. Pull element down from pump.
5. Push new element (Part #396007) on pump until
click is felt.
6. Replace O-ring (included with filter).
7. Re-install canister bowl on unit - snug tight only.
8. Two 10-second key ups should prime system.

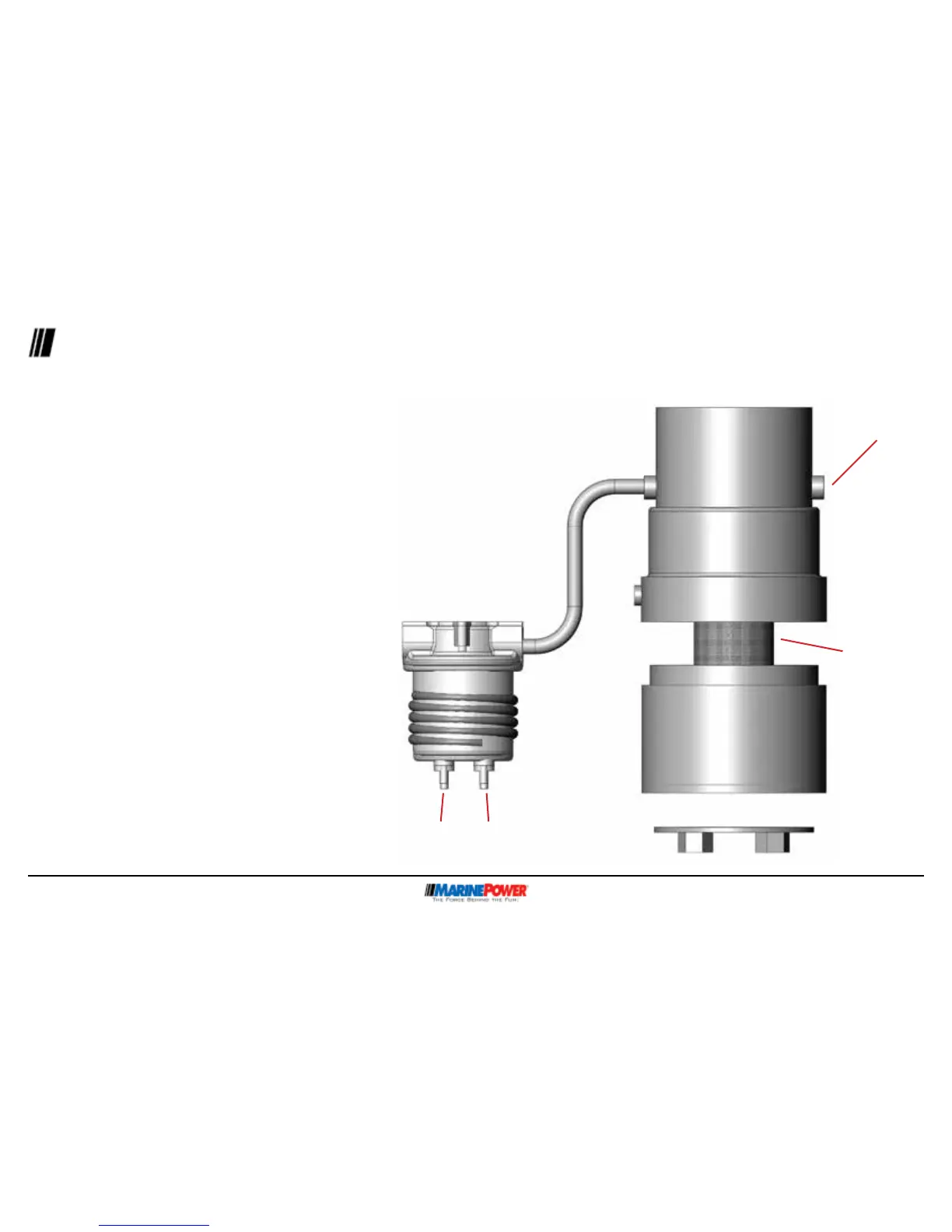

Fuel Flow Schematic
High Pressure Pump
Outlet (60 PSI)
Fuel Filter
Negative
Terminal
IN OUT
Positive
Terminal
Low Pressure Pump is 4-7 PSI at outlet.
Inlet has a small screen inside fitting.
This screen may be flushed by reversing
polarity on electrical connectors and
operating pump in reverse. High pres-
sure pump must be unplugged during
this procedure.
