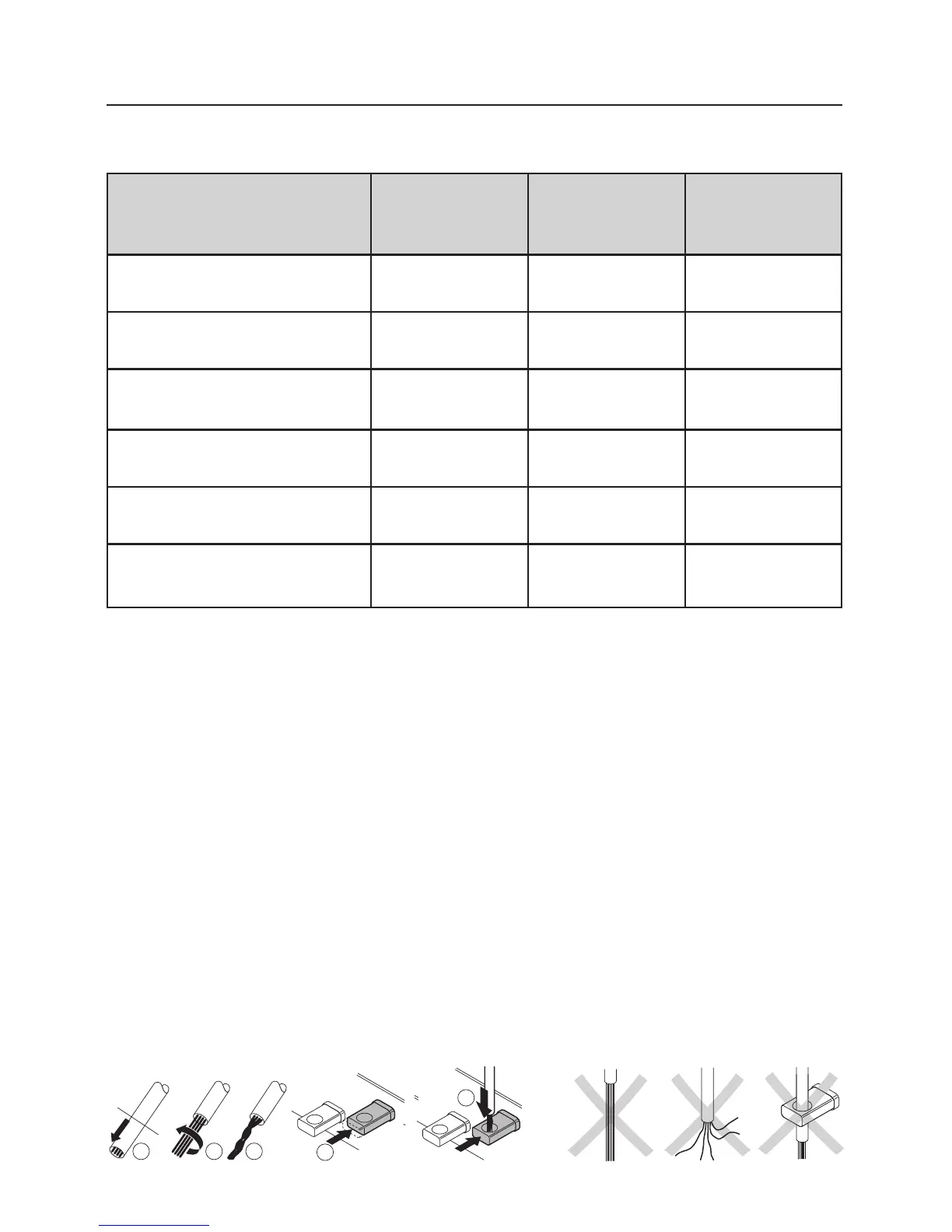

3. Connecting the Transformer
3.1 Possible Uses for the Different Transformers
Transformer 32 VA Transformer Transformer
Possible Uses 6645/6646/ 6000/6001/ 6005
6647/6648 6002/6003
Train operation with AC current
for Märklin H0 or 1
X––
Conventional hookup of turn-
XXX
outs and signal mechanisms
Conventional hookup of
XXX
model railroad lighting
Powering the no. 6604
X––
Delta-Control
Powering the no. 66045
XXX
Delta-Control 4f
Powering the 6021 Control-
1) X X
Unit or 6017 Booster
X = suitable – = not possible 1) = only possible with limitations on the power
3.2 Connecting the 32 VA Transformer to Märklin H0 Layouts
The following ways to hook up the components are available with Märklin H0:
Feeder Tracks
M Track: 5103, 5111, 5131,
K Track: 2290, 2292
5131 and 2292 cannot be used on Delta or Digital layouts. With C Track most of the
track sections in conjunction with feeder wire sets can be used as feeder tracks.
Feeder Wire Sets
M Track: 5004, K Track: 7504, C Track: 74046, 74040
One 74046 interference suppression set should be used with each transformer used
to operate trains.
Preparing the wire and Pay particular attention
making connections with it when doing this
8 mm
1 2 3
5
4
