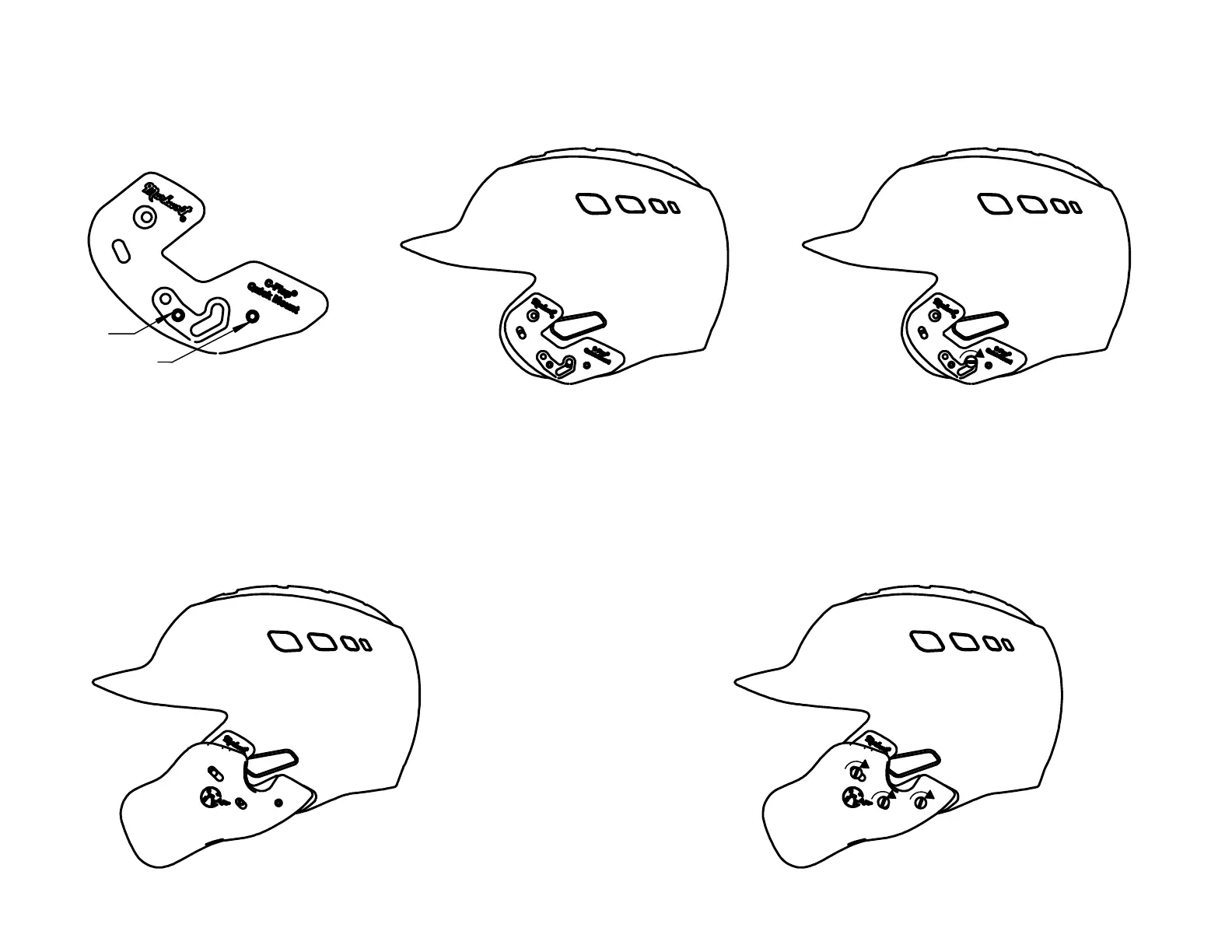

Place tee nuts on holes 4 & 6. Flanges
must be located on the back side of the
C-Flap® Quick Mount.
Align holes A-2 &C-5. Place a screw on hole 5 and drive it clockwise.
Do not overtighten the screws as this might pre-stress
the C-Flap® Quick Mount, affecting its performance.
Place longer screw on hole 2 and place shorter screws on the tee nuts
and drive themclockwise to clamp the C-Flap® to the C-Flap® Quick
Mount. Do not overtighten screwsas this might pre-stress the parts
affecting their performance.
Align C-Flap® openings with holes 2, 4 & 6.
Holes 4 & 6 contain tee nuts.
1/5 2/5 3/5
4/5 5/5
